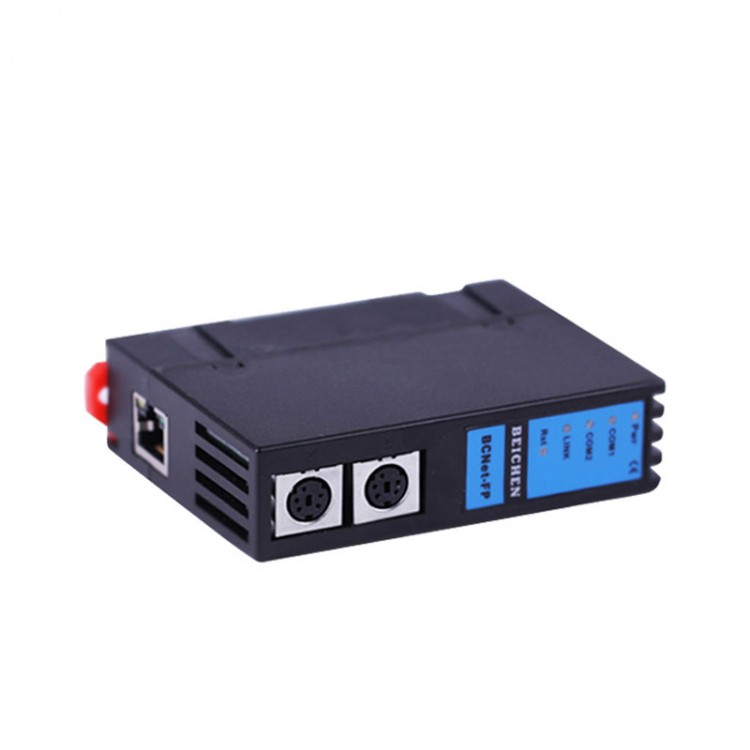

BCNet-FP Round Port Ethernet Module PLC to Modbus TCP Data Acquisition Module for Panasonic FP Series

BCNet-FP Round Port Ethernet Module PLC to Modbus TCP Data Acquisition Module for Panasonic FP Series

Description:
- BCNet-FP is an economical Ethernet communication processor, which is designed to meet the increasing needs of factory equipment informatization (equipment Network monitoring and production management). It is used for Panasonic FP-XH, FP-X, FP-X0, FP0, FP0R, FP2SH and other series of PLC Ethernet data acquisition, which is very convenient to build production management systems.

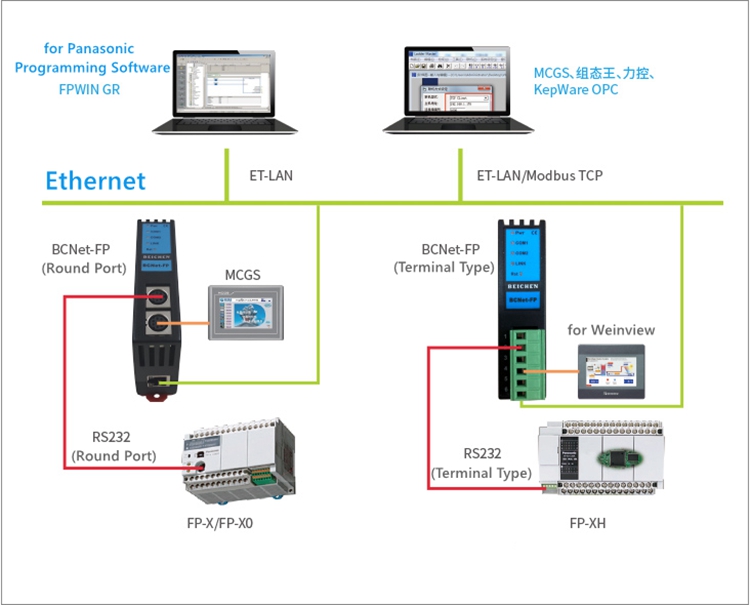

- BCNet-FP adopts an industrial grade design with guide rail installation, which does not occupy the PLC programming port. The upper computer monitors PLC data through Ethernet, and the touch screen can communicate with the PLC through the multiplexing interface x 2.

Features:
- BCNet-FP adopts a modular design, with multiple communication ports, and does not occupy the PLC programming port
- Parameter adaptation, plug and play, no need to write communication programs
- Support Ethernet program upload, download, comparison, and monitoring of programming software FPWIN GR for Panasonic
- Support Ethernet communication of upper computer software (for KingView, for MCGS, for Force Control, for IFIX, for INTOUCH, for KepWare OPC server, etc.)
- Support touch screen Ethernet communication (for Siemens, for MCGS, for Weinview, for Kinco, etc.)
- Integrated Modbus TCP server, Modbus data area automatically maps to FP data area (supports FC1, FC2, FC3, FC5, FC6, FC16)
- Support for Panasonic ET-LAN Ethernet protocol and BCNetTCP transparent transmission
- Support programming through advanced language (such as VB, VC, C #, etc.) to realize data communication with FP series for Panasonic
- Simultaneously supporting 6 Ethernet connections, compatible with multiple connection methods
- Special parameter configuration and testing tools
- Support web page parameter configuration and firmware upgrade.

Specification:
- Status display: Pwr, COM1, COM2, Link
- Programming software: for FPWIN GR
- Configuration software: for MCGS, for KingView, for FORCECON, etc.
- OPC software: for KepWare OPC
- Diagnostic and parameter setting tool: IE browser, 192.168.1.178 by default, BCDevice
- Power supply: communication port or external 24VDC
- Voltage type: 24VDC/100mA
- Working temperature: 0 ~ 60℃
- Working humidity: 90% (non-condensing)
- Installation method: 35mm guide rail
- EMC: 2014/30/EU
- Anti-vibration: 4.5mm/30Hz/10Min
- ESD: 6KV
- Size: 90 x 24 x 65mm
- Weight: 120g

Ethernet Interface: IEEE 802.3 compatibility, Link/Active indicator, line sequence adaptation, support for Auto-MDIX
- Interface type: RJ45 female socket
- Transmission speed rate: 10/100Mbps
- Supported protocol: for FPWIN GR, for ET-LAN, for Modbus TCP, for BCNet TCP, etc
- TCP connections: 6

X1 Interface (for PLC): RS232
- Interface type: MD6 Communication Female
- Transmission speed rate: 9.6K, 19.2K, 38.4K, 115.2K, 230.4Kbps
- Supported protocol: FP programming port (COM1 port)

X2 Interface (for HMI): RS232
- Interface type: MD6 Communication Female
- Transmission speed rate: 9.6K, 19.2K, 38.4K, 115.2K, 230.4Kbps
- Supported protocol: FP programming port (COM2 port)

Package Included:
- 1 x Data Acquisition Module
