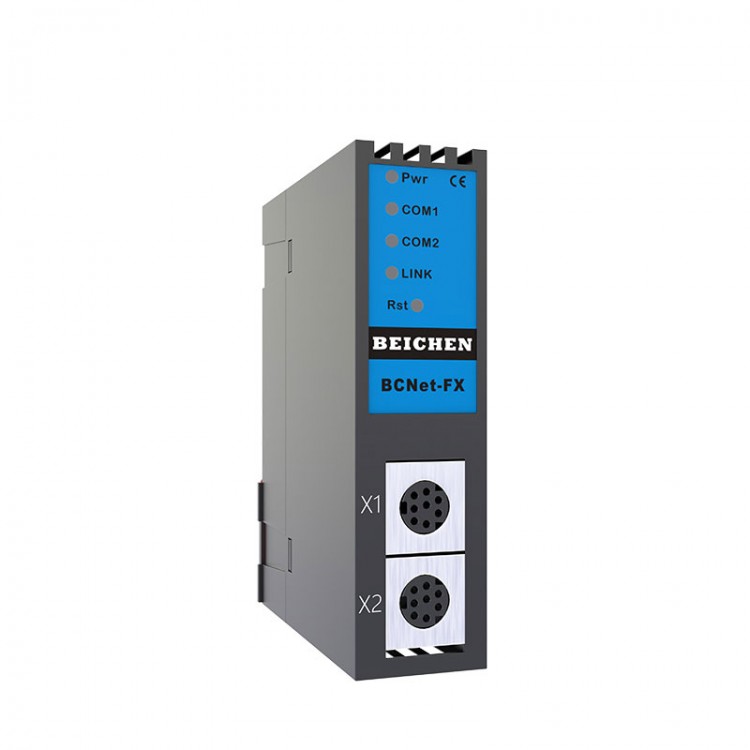

BCNet-FX Ethernet Communication Module Ethernet Communication Processor for Mitsubishi FX Series PLC

BCNet-FX Ethernet Communication Module Ethernet Communication Processor for Mitsubishi FX Series PLC

Description:
BCNet-FX is an economical Ethernet communication processor, designed for Ethernet data acquisition of PLCs for Mitsubishi FX1N/1S/2N/3S/3G/3GC/3U/3UC series. It adopts industrial-grade design, supports modular portable installation, and does not occupy the PLC programming port. Programming software/host computer software monitors PLC data via Ethernet. At the same time, your touch screen can communicate with the PLC via the multiplexing interface X2. It supports for Mitsubishi Ethernet protocol and transparent communication mode.

Features:
- Can be mounted on a 35mm rail. COM1 port can be connected to FX S8 programming port and COM2 port connected to touch screen, no external power supply required
- Integrated web server makes it easy to set device parameters and run diagnostics
- The baud rate of the FX programming port is automatically adjusted
- Supports Ethernet communication for Mitsubishi programming software GX Works2 and GX Developer
- Supports the SCADA software of the host computer to communicate through the MC Ethernet protocol for Mitsubishi
- Integrated ModbusTCP server
- BCNetTCP/IP transparent transmission protocol communication is supported
- Supports high-level language programming to facilitate the development of production management systems
- Supports OPC communication
- Supports 6 host computer Ethernet TCP/IP connections
- Supports Ethernet firmware upgrades

Typical Application:
- Ethernet programming, uploading and downloading programs, host computer monitoring (Kingview, MCGS, FORCECON and KepWare OPC) and device networking
- For Mitsubishi programming software GX Works2 and GX Developer
- Supports for Mitsubishi FX2N/FX3U/FX3G

Technical Parameters:
- Product model: BCNet-FX
- Item name: Ethernet Communication Processor for Mitsubishi FX Series PLC
- Status display: Pwr, COM1, COM2, Link
- Ethernet interface: IEEE 802.3 compliant, Link/Active indicator light, line sequence adaptive, Auto-MDIX supported
- Interface Type: RJ45 female socket
- Transmission rate: 10/100Mbps
- Supported protocols: MELSOFT, MC, BCNetTCP, BCNetUDP, BCNetHTTP, etc.
- Number of TCP connections: 6

- X1 interface (connected to PLC): RS422
- Interface type: MD8 communication female
- Transmission rate: 9.6K, 19.2K, 38.4K, 115.2Kbps
- Supported protocols: FX programming port

- X2 interface (connected to HMI): RS422
- Interface type: MD8 communication female
- Transmission rate: 9.6K, 19.2K, 38.4K, 115.2Kbps
- Supported protocols: FX programming port

- Programming software: GX Works2
- Configuration software: Kunluntongtai, Kingview, FORCECON, etc.
- OPC software: KepWare OPC

- Diagnostics and parameter settings: Internet Explorer, default 192.168.1.178
- Power supply mode: FX communication port directly takes power (communication cable) or connects to external 24VDC
- Voltage type: 24VDC/100mA
- Operating temperature: 0~60°C
- Operating humidity: 90% non-condensing
- Installation: 35mm rail mounting
- Electromagnetic compatibility: 2014/30/EU
- Vibration resistance: 4.5mm/30Hz/10Min
- ESD: 6KV
- Factory aging: 60°C aging box runs for 168 hours, and the power is turned on and off 500000 times
- Communication stability: 30 days of uninterrupted communication with PLC, 130 million times of communication with 0 errors
- Certification: CE certification
- Dimensions (L*W*H): 90 x 24 x 65mm/3.5 x 0.9 x 2.6"
- Weight: 100g/0.2lb

Package Included:
- 1 x Ethernet Communication Module
- 1 x Connection cable
- 1 x CD

Packaging Details:
- G.W.: 0.5kg
