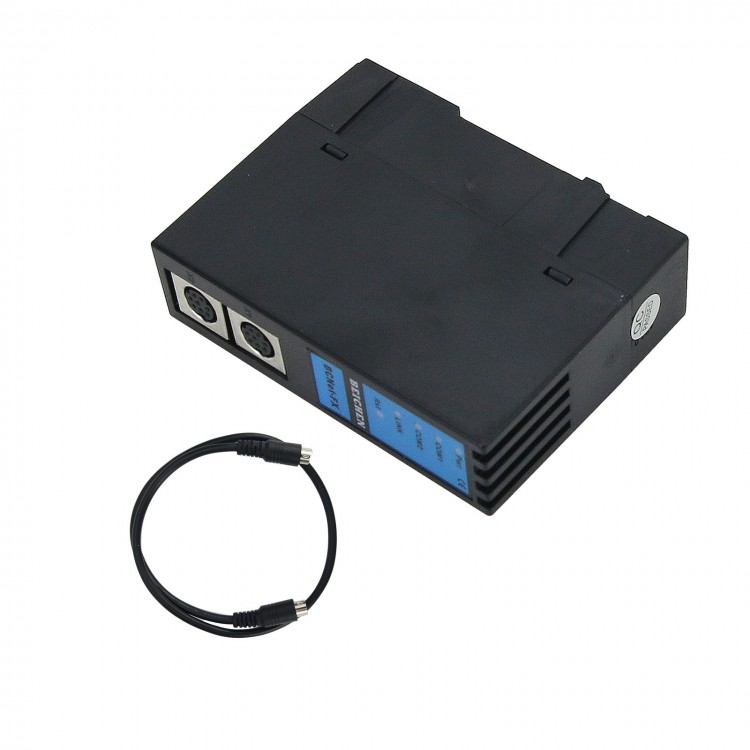

BCNet-FX Ethernet Communication Processor Module for FX1N/1S/2N/3S/3G/3GC/3U/3UC PLC Data Acquisition
Description:
BCnet-FX is an economical Ethernet communication processor, used for Mitsubishi FX1N/1S/2N/3S/3G/3GC/3U/3UC series PLC Ethernet data acquisition. The product adopts industrial-grade design and modularization portable installation, does not occupy PLC programming port. While the programming software/host computer software monitors the PLC data via Ethernet, the touch screen can communicate with the PLC via the multiplex interface X2. It support for Mitsubishi Ethernet protocol and transparent transmission two communication methods.
Specification:
Model: BCNetT-FX
Status display: Pwr COM1, COM2, Link
Ethernet interface: IEEE 802.3 compatible, Link/ Active indicator, line sequence adaptive, support Auto-MDIX
Interface type: R45 female socket
Transmission rate: 10/100Mbps
Protocol support: MELSOFT, MC, BCNetTCP, BCNetUDP, BCNetHTTP, etc.
Number of TCP connection: 6
X1 interface (connect PLC): RS422
Interface type: MD8 communication female port
Transmission rate: 9.6K, 19.2K, 38.4K, 115.2Kbps
Protocol support: FX programming port
X2 interface (connect HMI): RS422
Interface type: MD8 communication female port
Transmission rate: 9.6K, 19.2K, 38.4K, 115.2Kbps
Protocol support: FX programming port
Programming software: GX Works2
Configuration software: kunluntongtai, Kingview, 3D Force Control, etc.
OPC software: KepWare OPC
Diagnosis and parameter setting: IE browser, default 192.168.1.178
Power supply mode: FX communication port directly take power (communication cable) or external 24V DC
Voltage type: 24V DC/100mA
Working temperature: 0~60℃
Working humidity: 90% non-condensing
Installation method: 35mm rail installation
Electromagnetic compatibility: 2014/30/EU
Vibration resistance: 4. 5mm/30HZ/10min
ESD: 6KV
Factory aging: 60 degrees aging box runs for 168 hours, power on and off for 50,000 times
Communication stability: continuous communication with PC for 30 days, 130 million communications, 0 errors
Certification: CE certification
Features:
1. Installed on a 35mm rail, the COM1 port is connected to the S8 programming port of FX, and the COM2 port is connected to the touch screen, without external power supply.
2. Integrated WEB server, convenient to set equipment parameters and run diagnosis.
3. Automatically adjust the baud rate of the FX programming port.
4. Support for Mitsubishi programming software GX Works2, GX Developer Ethernet communication.
5. Support the upper SCADA software through the Mitsubishi MC Ethernet protocol communication.
6. Integrated ModbusTCP server.
7. Support BCNetTCP/IP transparent transmission protocol communication.
8. Support high-level language programming to enable the development of production management systems.
9. Support OPC communication.
10. Support 6 PC Ethernet TCP/IP connections.
11. Support Ethernet firmware upgrade.
Package List:
1 x Communication Module
