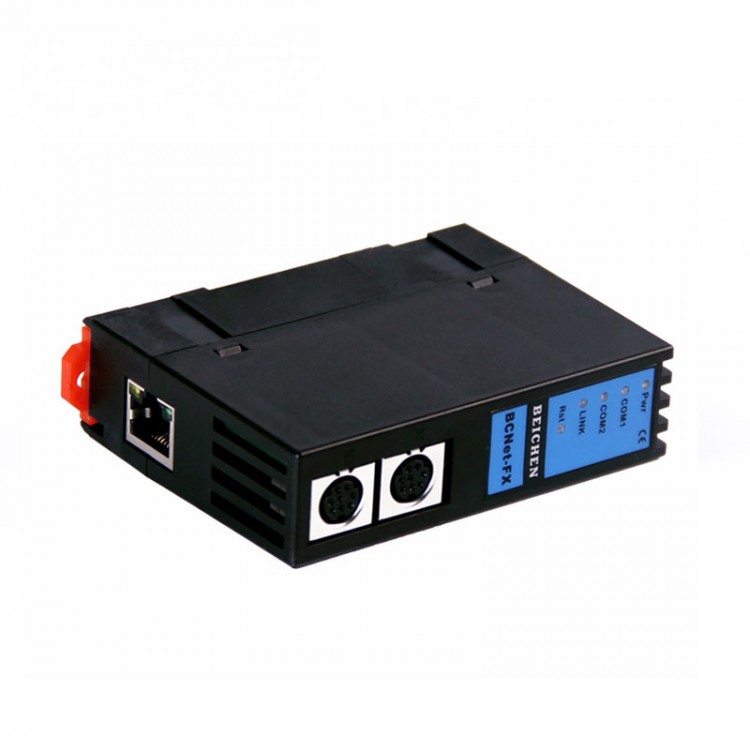

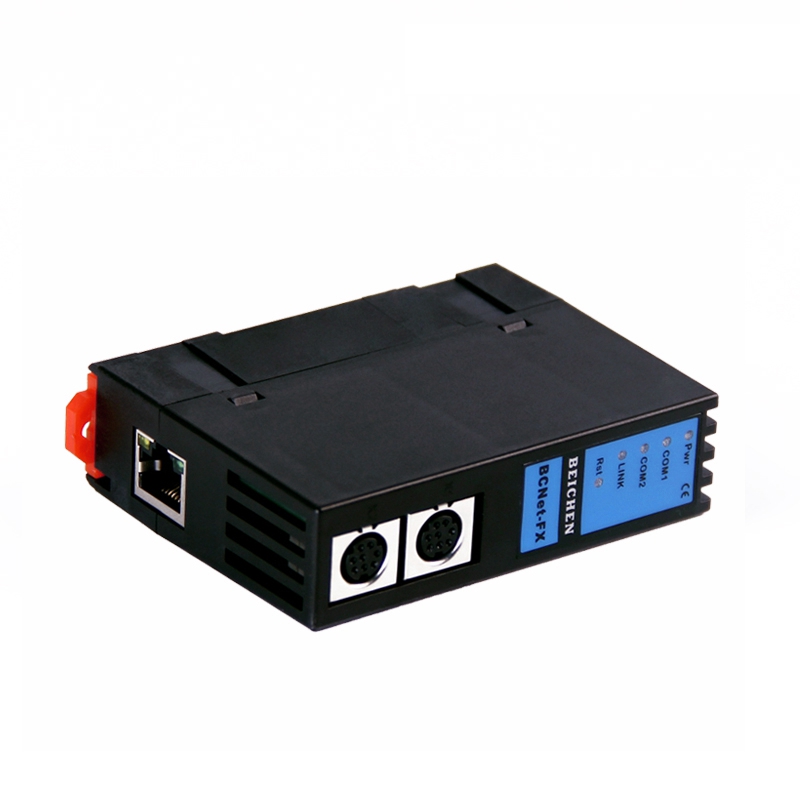

BCNet-FX PLC Serial Ports Protocol to Ethernet Module TCP Conversion for Mitsubishi FX Series PLC Ethernet Data Acquisition

BCNet-FX PLC Serial Ports Protocol to Ethernet Module TCP Conversion for Mitsubishi FX Series PLC Ethernet Data Acquisition

Description:
- BCNet-FX is an economical Ethernet communication processor designed to meet the increasing demand for information technology in factory equipment (equipment network monitoring and production management). It is used for PLC Ethernet data collection for Mitsubishi FX1S / 1N / 2N / 3S / 3G / 3GA / 3G / 3GC / 3U / 3UC series, for Inovance, for Shilin AX, HCFA, and WECON, making it very convenient to build production management systems.

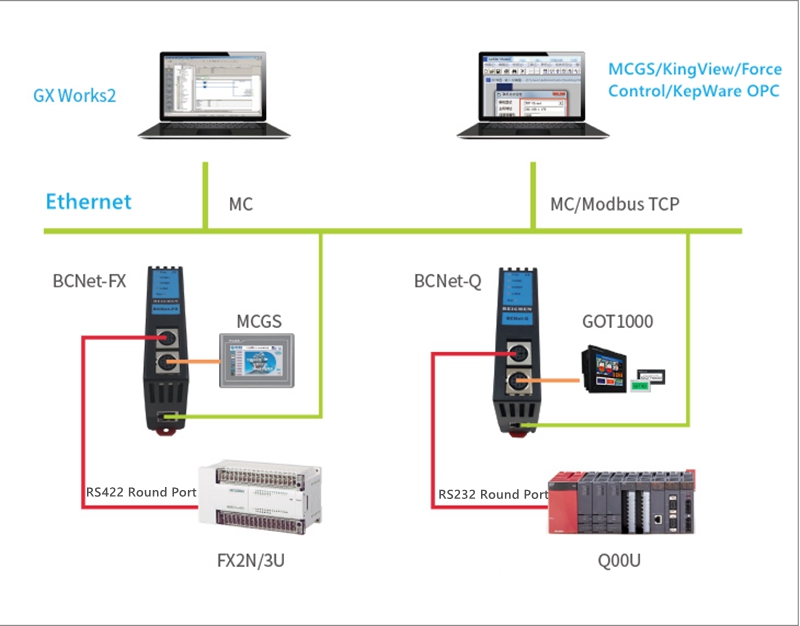

- BCNet-FX adopts an industrial grade design, with guide rail installation and communication cable. Without occupying the PLC programming port, the upper computer monitors PLC data through Ethernet, while the touch screen can communicate with the PLC through the multiplexing interface X2. BCNet-FX supports the vast majority of SCADA software in the field of industrial control, and supports two communication methods: for Mitsubishi MC Ethernet protocol and ModbusTCP.

Function:

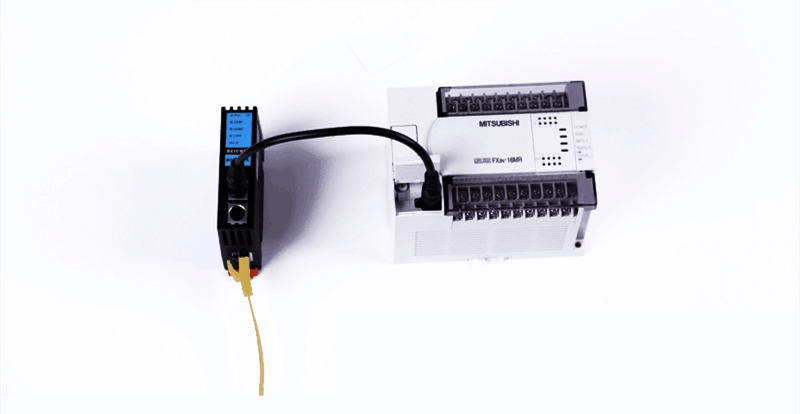

- Installed on a 35mm rail without the need for external power supply. The COM1 port is connected to the S8 programming communication port of FX, and the COM2 expansion port is used for touch screen communication.
- Parameter settings and running diagnostics can be performed on devices through a WEB server or the configuration diagnostic tool BCDevice.
- The baud rate of FX programming communication port can be automatically adjusted to meet the needs of large data volume communication.
- Supports Ethernet communication for MELSOFT products (GX Works2, GX Developer, etc.).
- Supports communication using the MELSEC Communication Protocol on the upper computer, as well as access to upper software such as servers for KingView, for MCGS, for Force Control, for IFIX, for INTOUCH, for KepWare OPC, etc.
- Integrated Modbus TCP server, supporting FC1, FC2, FC3, FC5, FC6, FC16, with Modbus data area automatically mapped to FX data area.
- Supports TCP/IP transparent protocol communication.
- With MC communication protocol, advanced programming language (such as VB, VC, C #, etc.) programming can be realized, and data communication for Mitsubishi FX can be realized, facilitating the development of production management system.
- SCADA (upper configuration software) that supports OPC channels communicates with FX in OPC mode.
- It can simultaneously implement MELSOFT connection, MC protocol connection, and ModbusTCP connection methods. Supports the connection of 6 upper computers.
- Support firmware updates on the user side through Ethernet.

Specification:
- Status display: Pwr, COM1, COM2, Link
- Ethernet interface: IEEE 802.3 compatibility, Link/Active indicator light, line sequence adaptation, support for Auto-MDIX
- Interface type: RJ45 female socket
- Transmission speed: 10/100Mbps
- Protocol support: for MELSOFT, for MC, for Modbus TCP, etc.
- Number of TCP connections: 6
- X1 interface (connect with PLC): RS422
- Interface type: MD8 communication female port
- Transmission speed rate: 9.6K, 19.2K, 38.4K, 115.2Kbps
- Protocol support: FX programming port
- X2 interface (connect with HDMI): RS422
- Interface type: MD8 communication female port
- Transmission speed rate: 9.6K, 19.2K, 38.4K, 115.2Kbps
- Protocol support: FX programming port
- Programming software: for GX Works2
- Configuration software: for MCGS, for KingView, for Force Control
- OPC software: for KepWare OPC
- Diagnostic and parameter setting tools: IE browser, default 192.168.1.178, BCDevice
- Power supply method: FX communication port directly receives power or external 24VDC
- Voltage type: 24VDC/100mA
- Working temperature: 0 ~ 60℃
- Working humidity: 90% non-condensing
- Installation method: 35mm din-rail mounting
- Electromagnetic compatibility: 2014/30/EU
- Anti-vibration: 4.5mm/30Hz/10Min
- ESD: 6KV
- Factory aging: 60 degree aging chamber operates for 168 hours, with power on and off for 500 million times
- Communication stability: Continuous communication with PLC for 30 days, 130 million communication with 0 errors
- Authentication: CE certification
- Size (L x W x H): 90 x 24 x 65mm
- Weight: 100g

Package Included:
- 1 x Host
- 1 x 0.6m Communication Cable
- 1 x CD
