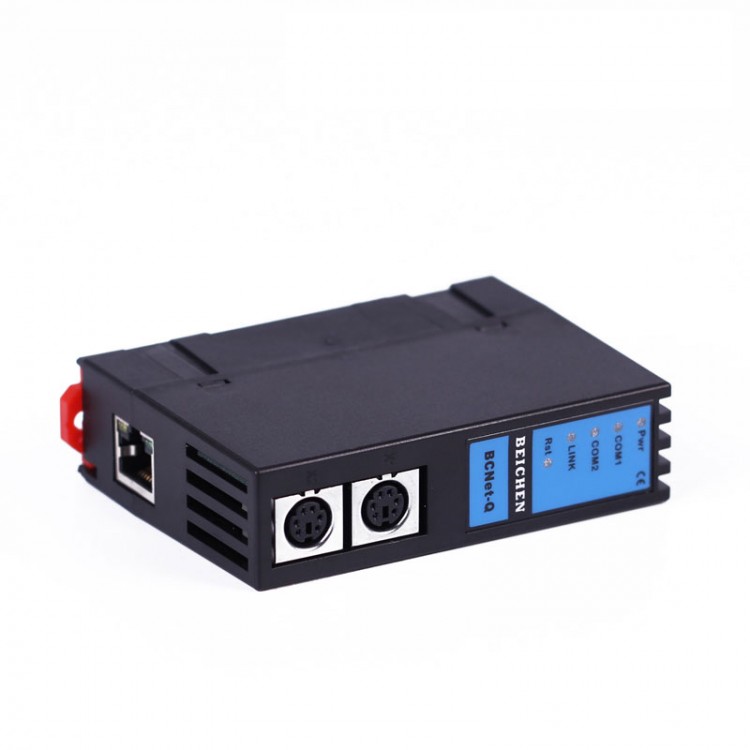

BCNet-Q Ethernet Module PLC Data Acquisition Module for Mitsubishi Q-Series Ethernet Communication Processor

BCNet-Q Ethernet Module PLC Data Acquisition Module for Mitsubishi Q-Series Ethernet Communication Processor

Description:
- BCNet-Q is an economical Ethernet communication processor, which is designed to meet the increasing needs of factory equipment informatization (equipment Network monitoring and production management). It is used for Ethernet data acquisition for Mitsubishi Q series PLC round port, which is very convenient to build a production management system.
- BCNet-Q adopts a modular design with communication cables. Without occupying the PLC programming port, the programming software/upper computer software monitors PLC data through Ethernet, while the touch screen can communicate with the PLC through the multiplexing interface X2.
- BCNet-Q supports the vast majority of SCADA software in the industrial control field, and supports two communication methods: for Mitsubishi MC Ethernet protocol and Modbus TCP.

Function:
- Installed on a 35mm rail without the need for external power supply. The COM1 port is connected to the MD6 programming communication port of Q, and the COM2 expansion port is used for touch screen communication.
- Parameter settings and running diagnostics can be performed on devices through a WEB server or the configuration diagnostic tool BCDevice.
- The Baud rate of Q programming communication port is automatically adjusted to meet the needs of Big data communication.
- Supports Ethernet communication for MELSOFT products (for GX Works2, for GX Developer, etc.).
- Supports communication using the MELSEC Communication Protocol on the upper computer, as well as access to upper software for KingView, for MCGS, for Force Control, for IFIX, for INTOUCH, for KepWare OPC servers, etc.
- Integrated Modbus TCP server, supporting FC1, FC2, FC3, FC5, FC6, FC16, with Modbus data area automatically mapped to Q data area.
- Supports BCNetTCP/IP transparent protocol communication.
- With MC communication protocol or transparent transmission, advanced language (such as VB, VC, C #, etc.) programming can be realized, and data communication with Q-series for Mitsubishi can be realized to facilitate the development of production management system.
- SCADA (upper configuration software) that supports OPC channels communicates with Q in OPC mode.
- It can simultaneously implement for MELSOFT connection, MC protocol connection, BCNetTCP transparent transmission, and ModbusTCP connection methods. Supports the connection of 6 upper computers.
- Support firmware updates on the user side through Ethernet.

Specification:
- Status display: Pwr, COM1, COM2, Link
- Programming software: for GX Works2
- Configuration software: for MCGS, for KingView, for FORCECON, etc.
- OPC software: for KepWare OPC
- Diagnostic and parameter setting tool: IE browser, 192.168.1.178 by default, BCDevice
- Power supply: communication port or external 24VDC
- Voltage type: 24VDC/100mA
- Working temperature: 0 ~ 60℃
- Working humidity: 90% (non-condensing)
- Installation method: 35mm guide rail
- EMC: 2014/30/EU
- Anti-vibration: 4.5mm/30Hz/10Min
- ESD: 6KV
- Size: 90 x 24 x 65mm
- Weight: 100g

Ethernet Interface: IEEE 802.3 compatibility, Link/Active indicator, line sequence adaptation, support for Auto-MDIX
- Interface type: RJ45 female socket
- Transmission speed rate: 10/100Mbps
- Supported protocol: for MELSOFT, for Modbus TCP, for BCNet TCP, etc
- TCP connections: 6

X1 Interface (for PLC): RS232
- Interface type: MD6 Communication Female
- Transmission speed rate: 9.6K, 19.2K, 38.4K, 115.2Kbps
- Supported protocol: Q programming port

X2 Interface (for HMI): RS232
- Interface type: MD6 Communication Female
- Transmission speed rate: 9.6K, 19.2K, 38.4K, 57.6K, 115.2Kbps
- Supported protocol: Q programming port

Package Included:
- 1 x Data Acquisition Module
- 1 x 0.6m Communication Cable
