BCNet-S7200 Straight-through Type Ethernet Communication Module Processor for Siemens Touch Screens

BCNet-S7200 Straight-through Type Ethernet Communication Module Processor for Siemens Touch Screens

Description:

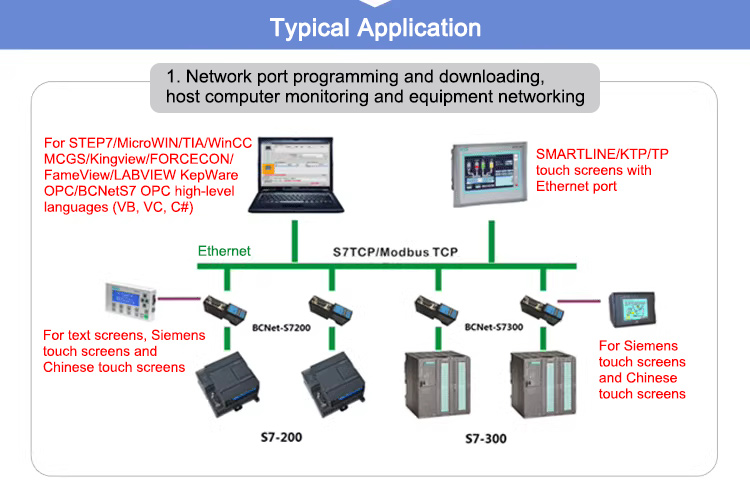

BCNet-S7200 is used for Siemens S7-200/SMART S7-200 Ethernet programming, host computer monitoring and data acquisition. It is very convenient to build a production management system.

According to the different models of the extended RS485 port touch screen, it is divided into straight-through type and bridge type.

BCNet-S7200 Straight-through Type: The expansion port can be connected to touch screens for Siemens, Proface and other series or other master stations.

BCNet-S7200 Bridge Type: The expansion port can be connected to touch screens of Weinview, Kinco, Kunluntongtai MCGS, etc., but it is not for Siemens touch screens.

BCNet-S7200 supports most SCADA software in the industrial control field. It supports for Siemens S7TCP Ethernet protocol and ModbusTCP protocol.

Features:
1. The PPI port for Siemens S7-200 takes power
2. There is no need to configure or change the program for the PLC
3. It does not affect the existing touch screen communication
4. Compatible with Ethernet driver for Siemens CP243-1
5. Integrated ModbusTCP server
6. Supports SCADA and OPC communication

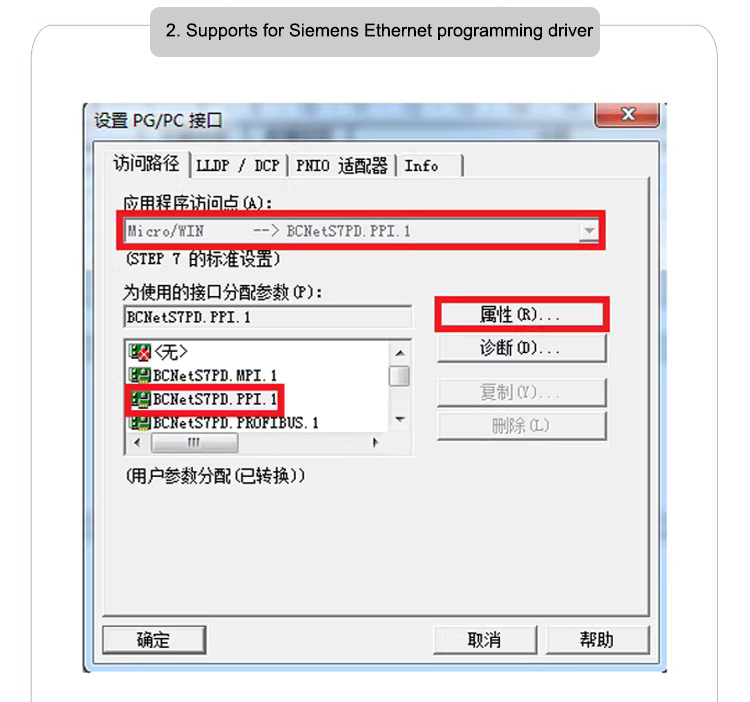

7. Support WinCC and S7-200 TCP/IP connection
8. Supports high-level language programming

Technical Parameters:

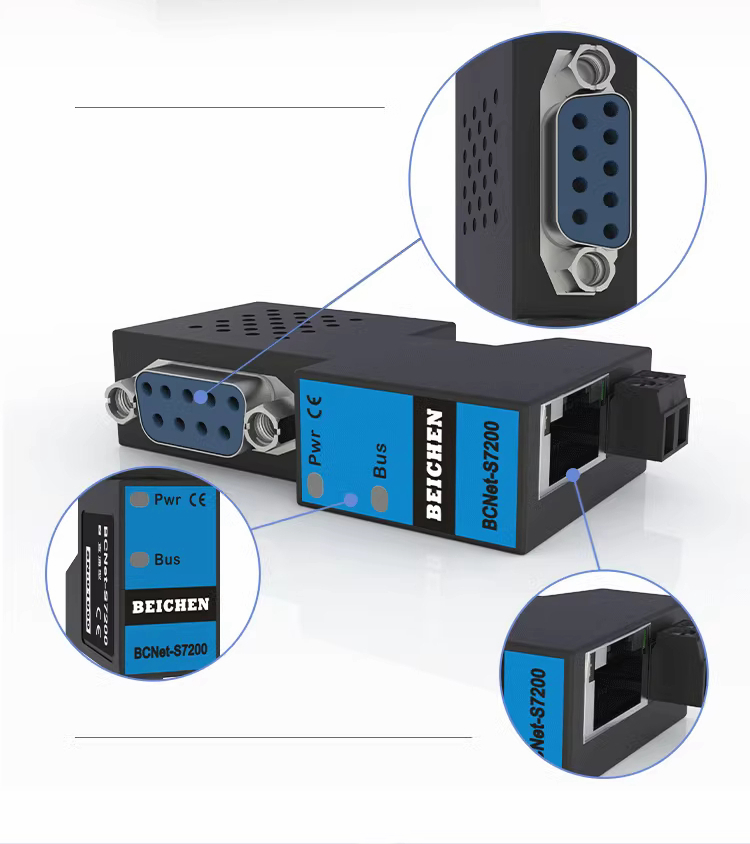

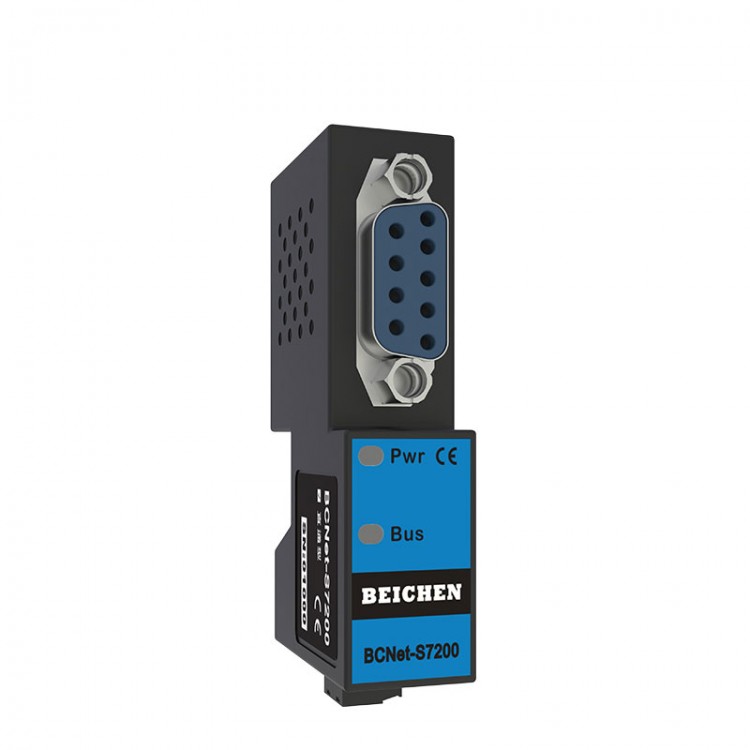

- Model: BCNet-S7200
- Item name: Ethernet Communication Processor
- Status display: PWR, BUS
- Ethernet interface: Link/Active indicator light, line sequence adaptive
- Interface type: RJ45 female socket
- Transmission rate: 10/100Mbps
- Supported protocol: For Siemens S7TCP, ModbusTCP, OPC, TCP/IP protocols
- Number of TCP connections: 32 maximum
- S7 interface: RS485
- Interface type: DSUB 9-pin male
- Transmission rate: 9.6K, 19.2K, 187.5K, baud rate adaptive
- Supported protocol: PPI
- HMI interface: RS485
- Interface type: DSUB 9-pin female
- Transmission rate: 9.6K, 19.2K, 187.5K
- Supported protocols: S7 single-master protocol
- Human machine type: For Siemens, MCGS, Weinview, Delta, Kinco, etc.

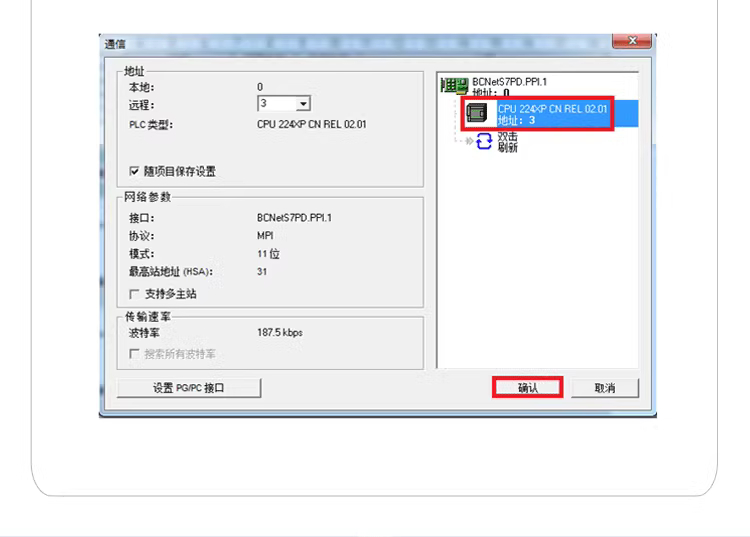

- Programming software: MicroWIN
- Configuration software: For WinCC, Kunluntongtai, Kingview, FORCECON, FameView, IFIX, INTOUCH, LABVIEW, etc.
- OPC software: For KepWare OPC & BCNetS7 OPC
- Diagnostic and parameter setting tools: Internet Explorer, default 192.168.1.188, BCNetPro, BCDevice
- Power supply mode: PLC communication port directly takes power
- Voltage type: 24VDC/100mA
- Operating temperature: 0~60°C
- Operating humidity: 95% non-condensing
- Installation: Plug and play
- Electromagnetic compatibility: 2014/30/EU
- Certification: CE certified
- Dimensions (L*W*H): 65 x 30 x 17mm/2.6 x 1.2 x 0.7"
- Weight: 60g/0.1lb

Package Included:
- 1 x Ethernet Communication Module

Packaging Details:
- G.W.: 0.5kg
