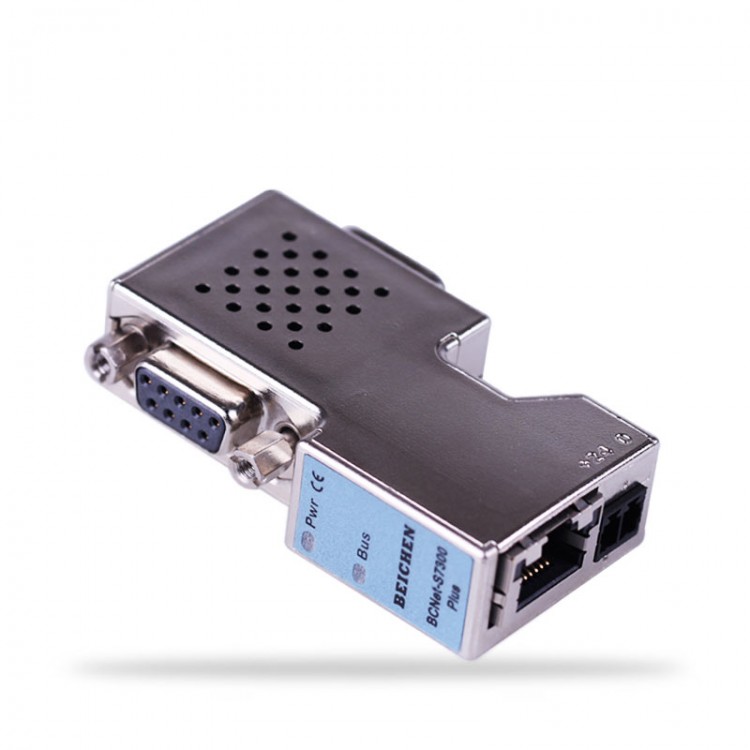

BCNet-S7200Plus Bridging Type Ethernet Module PPI to S7TCP/Modbus TCP Data Acquisition Module for Siemens

BCNet-S7200Plus Bridging Type Ethernet Module PPI to S7TCP/Modbus TCP Data Acquisition Module for Siemens

Description:
- BCNet-S7200Plus is an advanced version of BCNet-S7200. On the basis of BCNet-S7200, the network interface supports data exchange and ModbusTCP master slave communication functions with Siemens Ethernet such as S7-200SMART, S7-1200/1500, S7-300PN, CP243-1/CP343-1/CP443-1.

Model classification:
- BCNet-S7200Plus straight through model: an extended 9-pin female port that can connect to touch screens, and master stations.
- BCNet-S7200Plus bridging type: an extended 9-pin female port that can be connected to other touch screens (not for Siemens).

Features:
- It is suitable for Siemens S7-200, SMART S7-200
- Support for Siemens STEP7 and for MicroWIN
- Compatible with Siemens S7TCP protocol
- Support communication between upper SCADA and OPC
- Support advanced programming language programming
- The Ethernet port supports Ethernet communication for SIMATIC controllers and processors
- The network port supports ModbusTCP server and client functions

Specification:
- Status display: Pwr, Bus
- Programming software: for MicroWIN, for STEP7
- Configuration software: for WinCC, for MCGS, for KingView, for Force Control, for Fameview, for IFIX, for INTOUCH, for LABVIEW, etc.
- OPC software: for KepWare OPC, for BCNetS7 OPC
- Diagnostic and parameter setting tool: IE browser, 192.168.1.188 by default, BCDevice
- Power supply: communication port
- Voltage type: 24VDC/100mA
- Working temperature: 0 ~ 60℃
- Working humidity: 95% (non-condensing)
- Installation method: plug and play
- EMC: 2014/30/EU
- Size: 65 x 30 x 17mm
- Weight: 60g

Ethernet Interface: Link/Active indicator, line sequence adaptation
- Interface type: RJ45 female socket
- Transmission speed rate: 10/100Mbps
- Supported protocol: for Siemens S7TCP, for Modbus TCP Master and Slave, for OPC, for TCP/IP protocol open
- TCP connections: maximum 32

S7 Interface: RS485
- Interface type: DSUB 9-Pin Male
- Transmission speed rate: 9.6K, 19.2K, 187.5K, baud rate adaptation
- Supported protocol: for PPI/MPI Slave Station

HMI Interface: RS485
- Interface type: DSUB 9-Pin Female
- Transmission speed rate: 9.6K, 19.2K, 187.5K
- Supported protocol: PPI/MPI Slave Station
- HM type: for Siemens, for MCGS, for WeinView, for Delta, for Kinco, etc.

Package Included:
- 1 x Data Acquisition Module
