BCNet-S7300-S Ethernet Module (Magnetic Antenna) PLC Data Acquisition Module for Siemens S7-300/400/840D/840DSL

BCNet-S7300-S Ethernet Module (Magnetic Antenna) PLC Data Acquisition Module for Siemens S7-300/400/840D/840DSL

Description:
- BCNet-S7300-S is used for data acquisition of PLCs for Siemens S7-300/400/and for Siemens CNC 840D, 840DSL, etc., making it very convenient to build a production management system.

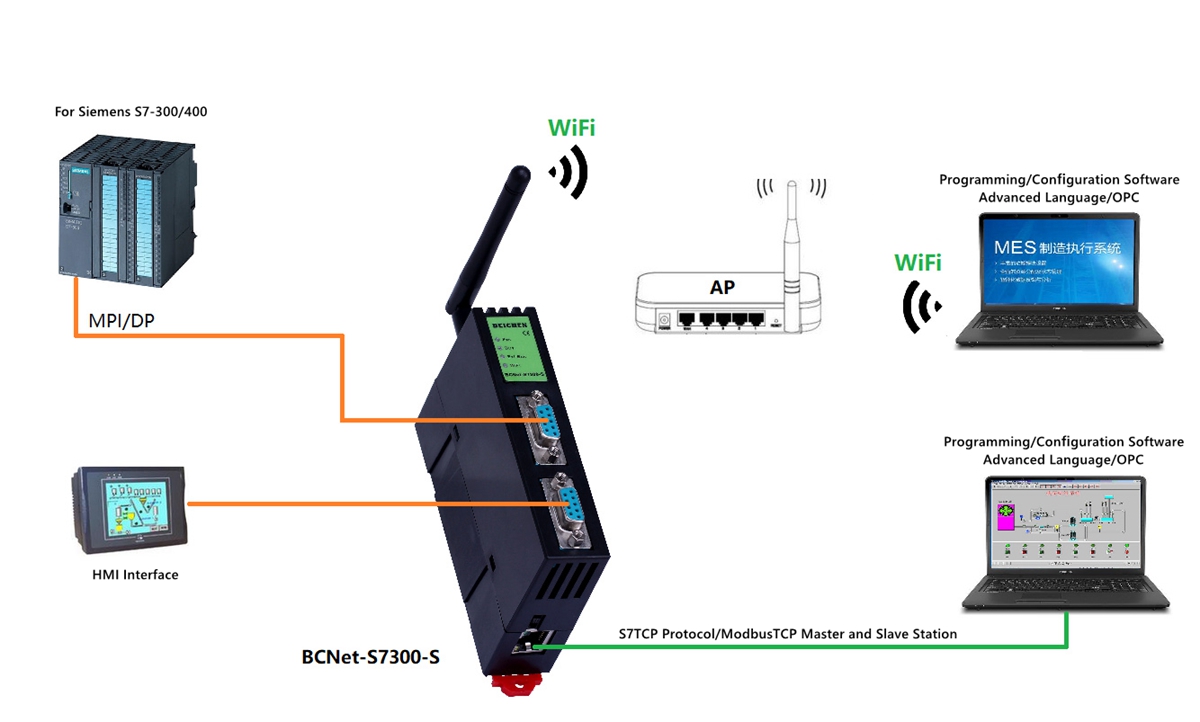

- The module integrates WiFi function and supports AP mode, STA mode, and AP+STA mode. It comes with a rubber rod or a magnetic antenna, making it easy to build a WiFi network. PLC programming, data acquisition, and data exchange can be directly carried out through WiFi. Supports communication with Ethernet interfaces of S7-200SMART, S7-1200/1500, S7-200/300/400, ModbusTCP master slave communication, and point table detection functions. The direct and bridge types can be dialed for selection. The direct type 9-pin female port supports S7 multi master communication, while the bridge type 9-pin female port supports ModbusRTU master slave communication.

Features:
- Supports multi master communication, and the expansion port can be connected to a touch screen or other master stations.
- Set parameters and run diagnostics on the device through a WEB server or configuration diagnostic tool BCDevice.
- Baud rate: 9.6Kbps ~ 6Mbps adaptive
- Installed on a 35mm rail, connected to the PPI/MPI/PROFIBUS communication port of the PLC through a DP cable, requires an external 24VDC power supply.
- Integrated WiFi function, supporting AP mode, STA mode, and AP+STA mode.
- PLC programming, data acquisition, and data exchange can be carried out through WiFi.
- Supports communication with Ethernet interfaces of S7-200, S7-200SMART, S7-1200/1500, S7-300, and S7-400, as well as ModbusTCP master and slave functions.
- The extended 9-pin female port supports the master and slave functions of Modbus RTU.
- Supports for Siemens S7 Ethernet communication drivers, including for MicroWIN, for STEP7, for TIA, and for WinCC.
- Users can use advanced language programming (such as VB, VC, C #, etc.) according to BCNetS7 protocol to realize data communication with S7-200/300/400, which is convenient for developing production management system.
- Provide BCNetS7 OPC server for free, supporting SCADA communication with PLC via OPC channel.
- Integrated with Modbus TCP server, the Modbus data area can be automatically or edited mapped to the S7-200/300/400 register.
- It can simultaneously achieve S7TCP connection and ModbusTCP communication, supporting up to 32 upper computer connections.
- Support firmware updates on the user side through Ethernet, once purchase, permanent upgrade.

Specification:
- Status display: Pwr, Bus, WiFi
- Programming software: for MicroWIN, for STEP7, for TIA
- Configuration software: for WinCC, for MCGS, for KingView, for Force Control, for FameView, for IFIX, for INTOUCH, etc.
- OPC software: for Kepware OPC, for BCNetS7 OPC
- Diagnostic and parameter setting: IE browser, 192.168.1.188 by default, BCDevice
- Power supply: Terminal port or external 24V DC
- Voltage type: 24V DC/100mA
- Working temperature: 0 ~ 60℃
- Working humidity: 95% non-condensing
- EMC: 2014/30/EU
- Size (L x W x H): 115 x 27 x 75mm
- Weight: 150g

Ethernet Interface: Link/Active indicator, automatic polarity crossing
- Interface type: RJ45 Female socket
- Output speed rate: 10/100Mbps
- Supported protocol: for Siemens S7TCP, ModbusTCP, BCNetS7
- Connections: max. 32

WiFi interface: 802.11 b/g/n; 2.4G - 2.5G
- Interface type: external high gain antenna
- Transmission power: +26dBm (MAX, 2.4G 802.11b/g/n)
- Receiving sensitivity: -89dBm (802.11b), -74dBm (802.11g), -72dBm (802.11n)
- Wireless type: Station/AP mode
- Safety mechanism: WPA-PSK/WPA2-PSK/WEP
- Supported protocol: for Siemens S7TCP; for ModbusTCP; for BCNetS7
- Connection: max. 32

S7 Interface: RS485
- Interface type: DSUB 9-Pin Male
- Transmission speed rate: 9.6K, 19.2K, 187.5K, 500K, 1.5M, 3M, 6M, baud rate adaptive
- Supported protocol: for PPI/for MPI Slave Station/for MPI Master and Slave Station/for PROFIBUS

HMI Interface: RS485
- Interface type: DSUB 9-Pin Female
- Transmission speed rate: 9.6K, 19.2K, 187.5K, 500K, 1.5M, 3M, 6M, baud rate adaptive
- Supported protocol: MPI multiple master station protocol, Modbus RTU master and slave station
- HM types: for Siemens, for MCGS, for Weinview, for Delta, for Kinco, etc.

Package Included:
- 1 x Module
- 1 x Magnetic Antenna
