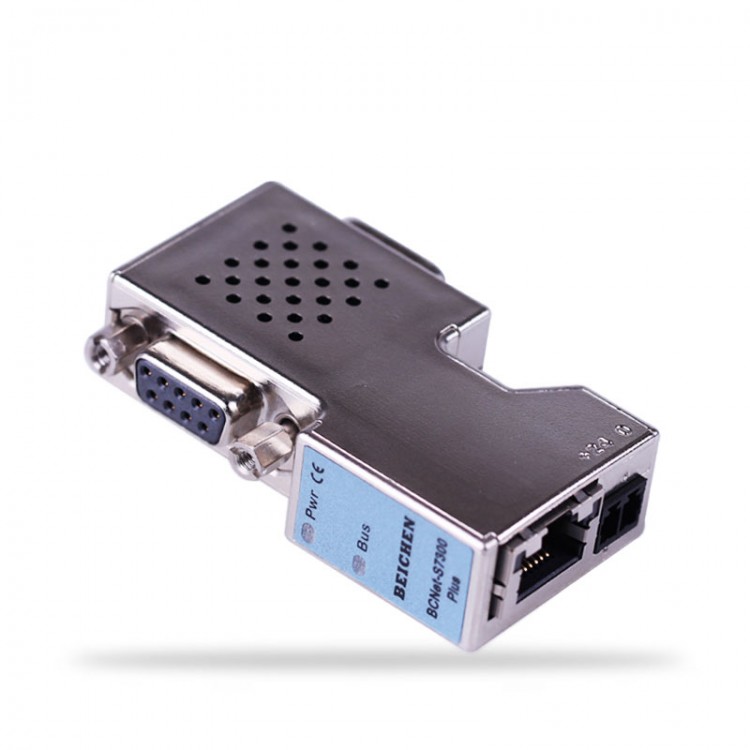

BCNet-S7300Plus Bridging Type Ethernet Module MPI/DP to S7TCP Data Acquisition Module for Siemens S7-200/300/400

BCNet-S7300Plus Bridging Type Ethernet Module MPI/DP to S7TCP Data Acquisition Module for Siemens S7-200/300/400

Description:
- BCNet-S7300Plus is an advanced version of BCNet-S7300. On the basis of BCNet-S7300, the Ethernet port has added support for communication function between PLC for Siemens with network ports (S7-200SMART, S7-1200/S7-1500, S7300PN, CP243-1/CP343-1/CP443-1) and ModbusTCP master slave communication.

Model classification:
- BCNet-S7300Plus straight-through model, with an extended 9-pin female port, supports for MPI/DP multi master communication, and can connect touch screen and master station.

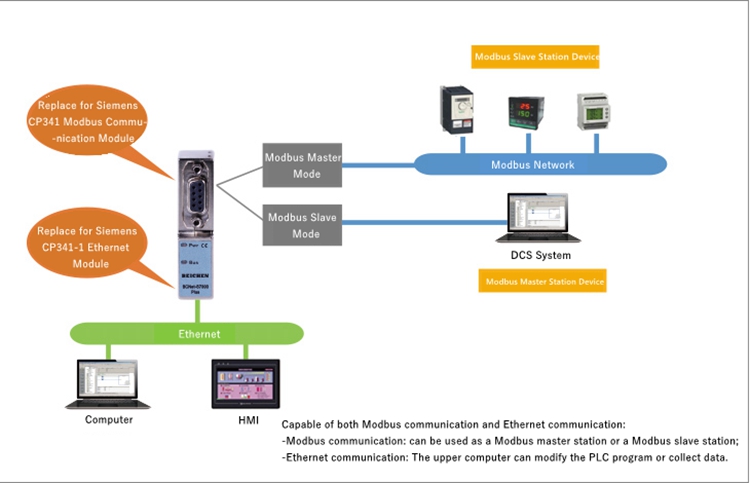

- BCNet-S7300Plus bridging type, extended 9-pin female port, supporting the master and slave function of ModbusRTU.

Features:
- It is suitable for Siemens S7-200/300/400
- Support for Siemens STEP7 and for TIA
- Compatible with S7TCP protocol for Siemens
- The network port supports for ModbusTCP server and client functions
- Support communication between upper SCADA and OPC
- Support advanced programming language programming
- The Ethernet port supports Ethernet communication with SIMATIC S7 controllers and processors
- High performance magnetic coupling isolation
- Suppression of instantaneous pulse in power supply by high capacity TVS transistor

Specification:
- Status display: Pwr, Bus
- Programming software: for MicroWIN, for STEP7, for TIA
- Configuration software: for WinCC, for MCGS, for KingView, for Force Control, for Fameview, for IFIX, for INTOUCH, for LABVIEW, etc.
- OPC software: for KepWare OPC, for BCNetS7 OPC
- Diagnostic and parameter setting tool: IE browser, 192.168.1.188 by default, BCDevice
- Power supply: communication port
- Voltage type: 24VDC/100mA
- Working temperature: 0 ~ 60℃
- Working humidity: 95% (non-condensing)
- Installation method: plug and play
- EMC: 2014/30/EU
- Size: 65 x 30 x 17mm
- Weight: 60g

Ethernet Interface: Link/Active indicator, line sequence adaptation
- Interface type: RJ45 female socket
- Transmission speed rate: 10/100Mbps
- Supported protocol: for Siemens S7TCP, for Modbus TCP, for OPC, for TCP/IP protocol open
- TCP connections: maximum 32

S7 Interface: RS485
- Interface type: DSUB 9-Pin Male
- Transmission speed rate: 9.6K, 19.2K, 187.5K, 500K, 1.5M, 3M, 6Mbps, baud rate adaptation
- Supported protocol: Q programming port

HMI Interface: RS485
- Interface type: DSUB 9-Pin Female
- Transmission speed rate: 9.6K, 19.2K, 187.5K, 500K, 1.5M, 3M, 6Mbps
- Supported protocol: S7 multiple master station protocol
- HM type: for Siemens, for MCGS, for WeinView, for Delta, for Kinco, etc.

Package Included:
- 1 x Data Acquisition Module
