| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $76.13 | $74.57 | $72.24 | $69.14 | Contact US |
Feature:
1. Used with a common ratchet wrench as a digital torsion wrench with the same function as a digital torsion wrench.
2. This product is fully functional, compact and easy to carry, cost-effective, widely used in machinery, aviation, railway, maintenance, testing and other fields.
3. With power saving function,it will automatically shutdown after 80 seconds without being used.
4. Buzzer and LED light alarm prompt,and the measuring accuracy up to 1%, supports third-party metering.
5. Peak/tracking conversion mode, real-time display, record peak,50 torsion can be reserved maximum.
Specification:
- Item Type: Torsion Adapter
- Material: Tool Steel
- Surface Treatment: Polishing and Chrome Plating

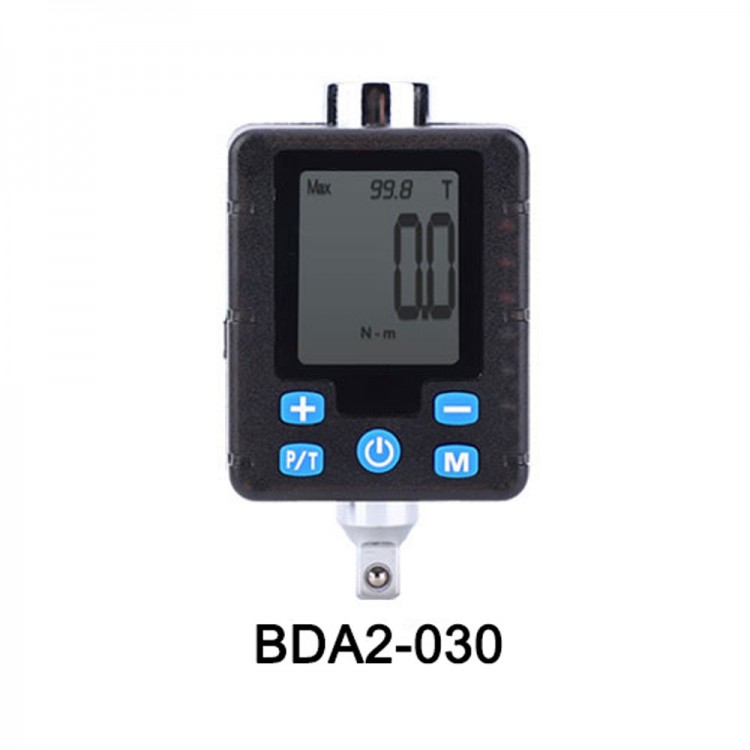

- Model: BDA2-030
- Accuracy: +-2%
- Memory: 50 Sets
- Operating Mode: Peak / Patrol
- Unit Options: Kg /m, Kg / cm, Inches / Pounds, Feet / Pounds, N / m
- Battery: 2 x AAA Battery(Not Included)
- Operating Temperature: -10~60℃
- Storage Temperature: -20~60℃
- Relative Humidity: 15-90%
- Auto Power Off: 80 Seconds
- Size: 75x45x45mm / 2.95x1.77x1.77in
Type | Resolution | Display Range | Alarm Range | Accuracy Ensurance Range | Driver Tip | Applicable Wrench/Socket |
BDA2-030 | 0.01 | 0.3~30N.m | 1.5~30N.m | 6~30N.m | 1/4in DR | 19mm for 3/4 Wrench and Socket |
BDA3-135 | 0.1 | 1.35~135N.m | 6.8~135N.m | 27~135N.m | 3/8in DR | 12.5mm for 1/2 Wrench and Socket |
BDA4-200 | 0.1 | 2~200N.m | 10~200N.m | 40~200N.m | 1/2in DR | 10mm for 3/8 Wrench and Socket |
BDA4-340 | 0.1 | 3.4~340N.m | 17~340N.m | 68~340N.m | 3/4in DR | 6.3mm for 1/4 Wrench and Socket |
