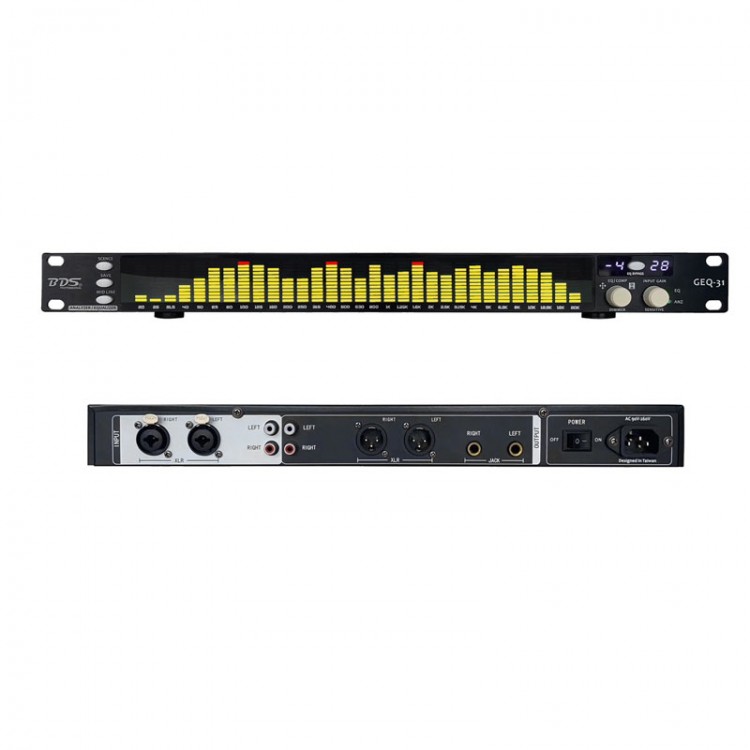

BDS GEQ-31 31-Band 1U Audio Spectrum Analyzer Equalizer Spectrum Display Designed with Yellow LEDs

BDS GEQ-31 31-Band 1U Audio Spectrum Analyzer Equalizer Spectrum Display Designed with Yellow LEDs

Features:
* The BDS GEQ-31 is a mono digital graphic equalizer exclusively developed by BDS, a Taiwan-based company
* Ultra-compact and lightweight chassis
* High-performance 32-bit DSP chip for control
* Unique 3-group LED digital display
* Pure digital 31-band GEQ with ultra-low noise
* Input level signal compression display function
* Adjustable gain range: ±18dB
* Stores and recalls up to 20 presets
* Real-time 31-band EQ adjustment
* 0dB center line toggle display
* Accurate real-time 31-band spectrum analyzer
* Integrated LED display module
* 11-segment LED indicators per frequency band
* Professional audio input/output interfaces
* Lossless direct pass-through circuitry
* Spectrum analyzer brightness adjustment
* Adjustable input signal sensitivity
* Supports wide-range AC power (90V–260V)

Specifications:
* Power Supply: AC 90V–260V (50Hz/60Hz)
* SNR: 118dB
* Frequency Response: 20Hz–20kHz
* Power Consumption: 10W–12W
* Input Interface: XLR, RCA
* Input Sensitivity: 0V–1V
* Output Interface: XLR, RCA
* LED Module: 12 dots × 31 segments (total 372 dots)
* LED Color: Yellow
* Dimensions: 19" × 5.1" × 1.7"
* Weight: 4.4 lb

Packing List:
* 1 x Set of Spectrum Analyzer Equalizer

Packaging Details:
* Weight: 3.5kg
