| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $258.53 | $253.26 | $245.34 | $234.79 | Contact US |

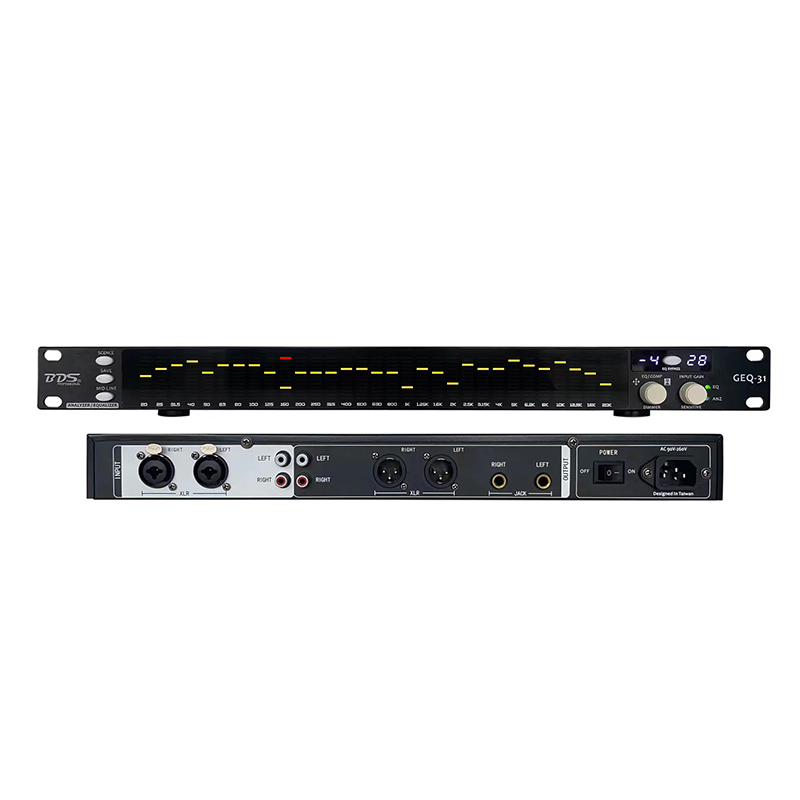

BDS GEQ-31Y Mono Digital Spectrum Analyzer with LED Display Audio Spectrum Indicator Amplifier
Features:
- 1U compact rack body size
- High quality 32bit Main DSP control
- Real GEQ designed with 3 groups screen display
- Digital 31 segment equalizer with ultra-low noise
- The max gain value is +-18db adjustable
- Input compressor function with display
- Up to 20 groups scene can be saved or call
- Real time 31 frequency equalizer scene display
- Equalizer 0dB mid line switching display

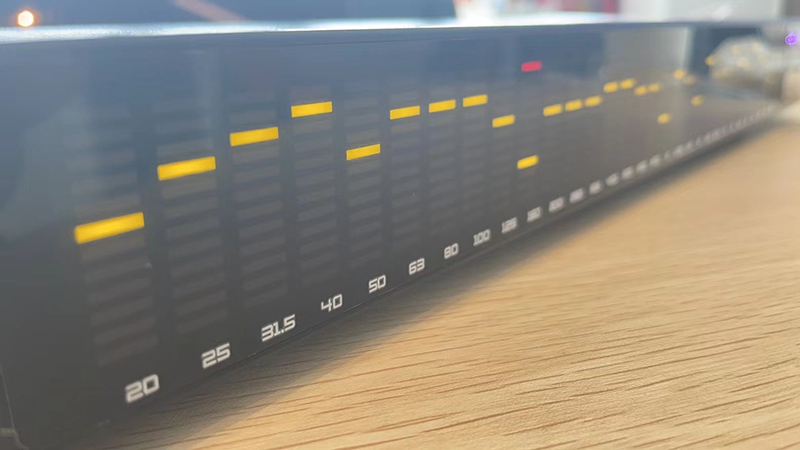

- 31ch real-time spectrum analyzer
- Integrated LED display module
- Each frequency with 11 signal led display
- easy to control and very durable
- Input and output use variety pro audio socket
- High quality direct loss less circuit in and output
- Analyzer dimmer and input signal Sensitivity
- Auto feedback control functions(31F)
- Support AC 90V-260V power
Specifications:
- Power supply: AC90V-260V (50HZ/60HZ)
- SNR: 118dB
- Frequency response: 20Hz-20KHz
- Power consumption: 10W-12W
- Input interface: XLR, RCA port
- Input sensitivity: 0V-1V
- Output interface: XLR, RCA
- LED MODULE: 12 x 31section
- Dimension: 483mm x 44mm x 130mm
- Weight: 2KG
Package Included:
- 1 x BDS GEQ-31Y
