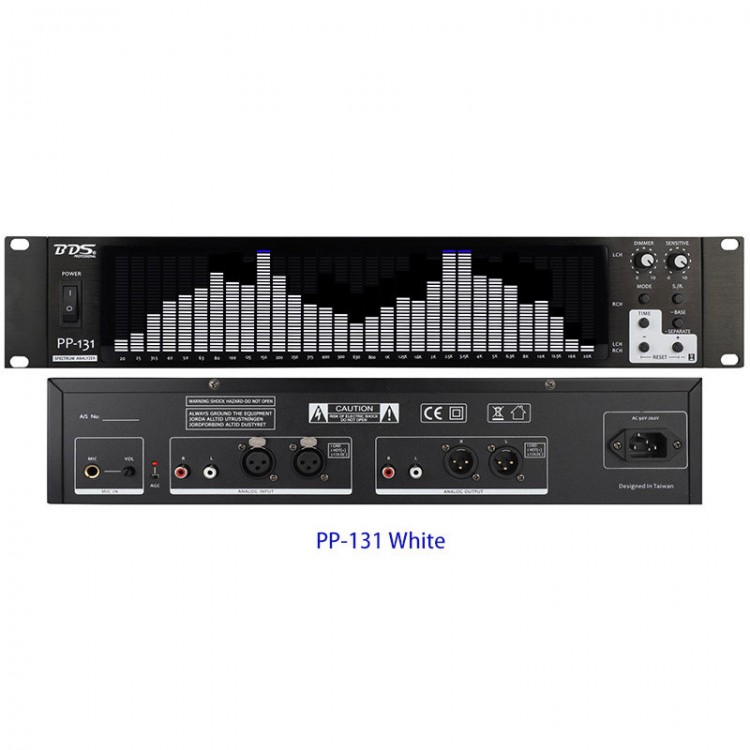

BDS PP-131 White Audio Spectrum Analyzer Display Music Spectrum Indicator VU Meter 31-Segment

BDS PP-131 White Audio Spectrum Analyzer Display Music Spectrum Indicator VU Meter 31-Segment

Operation Video:
http://v.youku.com/v_show/id_XNDY0Mjg2MTEyOA==.html?x&sharefrom=iphone&sharekey=a26d63c275d5c52d41a449d39609110b8

Features:
- Designed in Taiwan by BDS
- Standard 2U thin and ultra-small chassis size
- Using high-performance DSP chip control
- Absolutely accurate real-time 31-band frequency point level
- Integrated LED: A total of 930 lights dynamic module display
- Each frequency point uses 30 lights to display the level signal
- The panel is simple, easy to control, durable and stable
- Input and output support XLR and RCA socket
- Real display and smooth display mode settings
- Multiple graphics display switching
- PHT (PEAK HOLD TIME) peak hold time setting
- MFT (MAIN FALL TIME) main spectrum fall time setting
- Stereo sampling. Can be independently displayed on the spectrum at the same time
- Microphone output interface with volume adjustment
- Automatic gain increase and decrease function
- Real-time input level display dual 31 segments
- This machine uses a lossless through synchronization circuit
- The panel supports spectrum light brightness adjustment
- Support input level sensitivity adjustment
- AC full voltage power supply input

Technical Parameters:
- Power supply requirement: AC 90V-260V (50HZ / 60HZ)
- Power consumption: 10W-15W
- Input interface: XLR, RCA
- Input sensitivity: 0V-1V
- Output interface: XLR, RCA
- LED module: 30 points of light-emitting diodes*31 segments, a total of 930 points
- LED color: white, blue
- Size: 483mm*88mm*130mm
- Net weight: 2.5KG

Package Included:
- 1 x Set of Spectrum Analyzer Display
