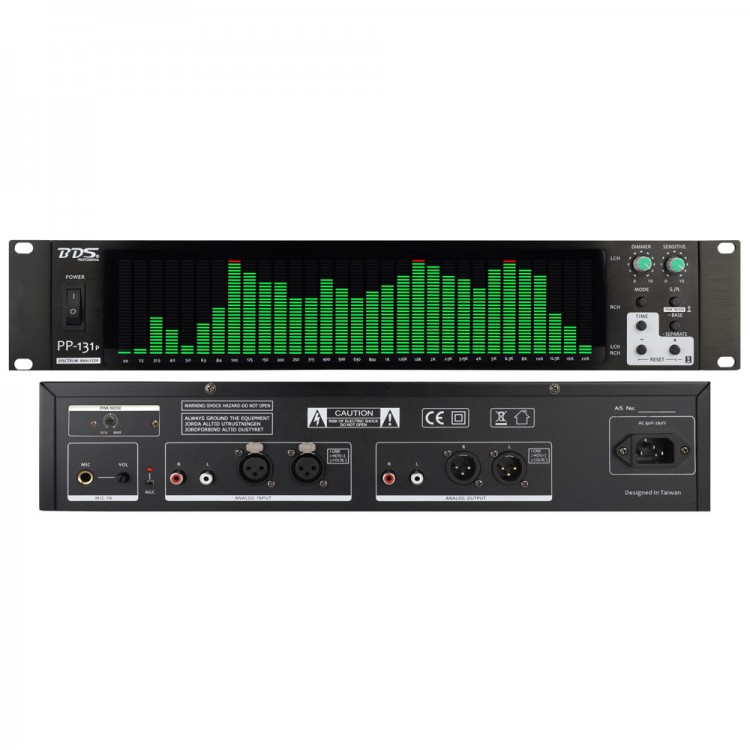

BDS PP-131P Green Audio Spectrum Analyzer Display Music Spectrum Indicator VU Meter 31-Segment
Features:
1. Researched and developed by Taiwan BDS company
2. Standard 2U thin and ultra-small chassis
3. Using high-performance DSP chip control
4. Real-time 31-band frequency point level
5. A total of 930 lights dynamic module display with integrated LED
6. Each frequency point uses 30 lights to display the level signal
7. The panel is simple, easy to control, durable and stable
8. Both input and output support XLR and RCA interfaces
9. Real display and smooth display mode setting
10. A variety of graphics display switching
11. PHT (PEAK HOLD TIME) peak dwell time setting
12.MFT (MAIN FALL TIME) main spectrum fall time setting
13. Stereo sampling. Can be independently displayed on the spectrum at the same time
14. Microphone input interface with volume adjustment
15. Automatic gain increase and decrease function
16. Real-time input level display dual 31 segments
17. This machine uses a lossless through synchronization circuit
18. The panel supports spectrum light brightness adjustment
19. Support input level sensitivity adjustment
20. AC full voltage power supply input
Technical Parameters:
1. Power supply requirement: AC 90V-260V (50HZ / 60HZ)
2. Power consumption: 10W-15W
3. Input interface: XLR, RCA
4. Input sensitivity: 0V-1V
5. Output interface: XLR, RCA
6. LED module: 30 points of light-emitting diodes * 930 points in 31 segments
7. LED color: emerald green, bright red
8. Size: 483mm*88mm*130mm
9. Net weight: 2.5KG
Package Included:
- 1 x Set of Spectrum Analyzer
