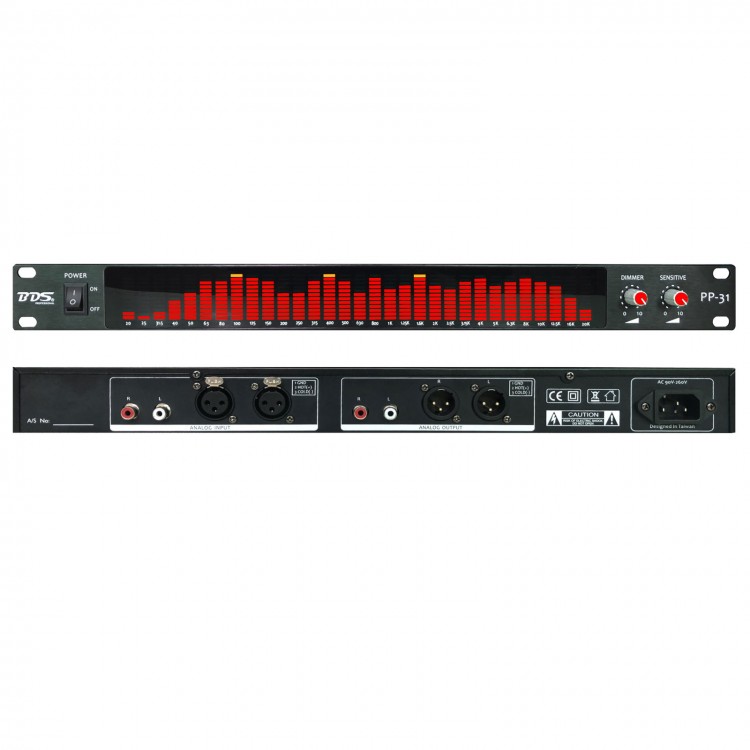

BDS PP-31 Red LED Digital Audio Spectrum Analyzer Display 1U Music Spectrum VU Meter 31 Segments
Video Introduction:
http://v.youku.com/v_show/id_XNDY0MjU4NzMwNA==.html?x&sharefrom=iphone&sharekey=db3e581733a01583b7cc09646bd01cd18
Features:
- Researched and developed by Taiwan BDS company
- Standard 1U thin and ultra-small chassis
- This machine adopts DSP chip control
- Real-time 31-band frequency point level
- Adopt one-piece LED dynamic module display
- Each frequency point uses 12 lights to display the level signal
- The panel is simple, easy to control, durable and stable
- Input and output support XLR and RCA sockets
- This machine uses a lossless through-amplification synchronization circuit
- The panel supports spectrum light brightness adjustment
- Support input level sensitivity adjustment
- Support AC full voltage power supply input
Technical Parameters:
- Power supply requirement: AC 90V-260V (50HZ / 60HZ)
- Power consumption: 5W-10W
- Input interface: XLR, RCA
- Input sensitivity: 0V-1V
- Output interface: XLR, RCA
- LED module: light-emitting diode 12 points*31 segments, total 372 points
- LED color: Red
- Size: 483mm*44mm*130mm
Package Included:
- 1 x Set of Spectrum Display
