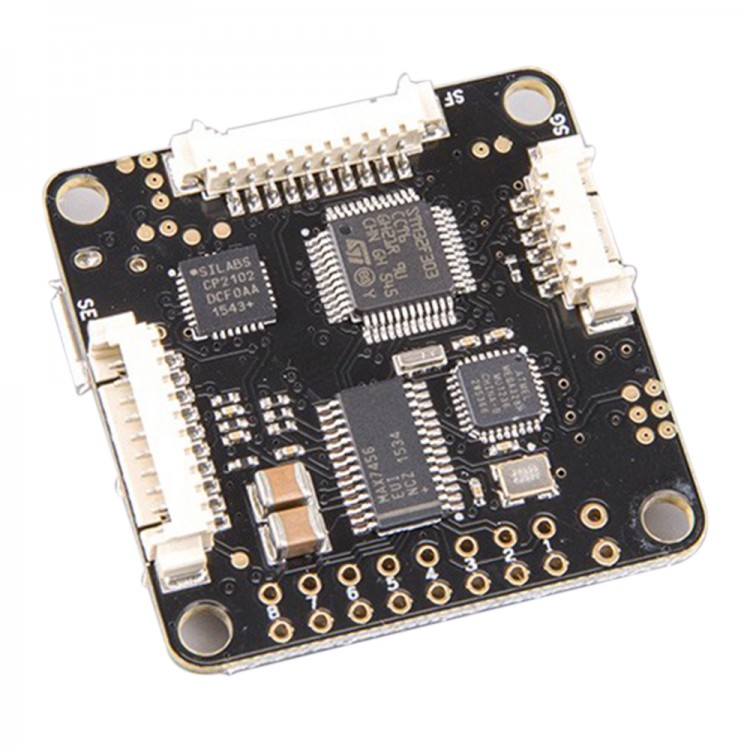

BeeRotor F3 Flight Controller BRF3 Integrate OSD for RC FPV QAV Multicopter
Features:
- Optimization for Cleanflight/Betaflight firmware
- ARM Cortex-M4 core STM32F303CC with 32bit/72MHz/256K Flash/40K SRAM and hardware floating point unit
- MPU6050 and BMP180 / BMP280 Sensors
- Build-in 8MB flash for black box log recorder
- On board OSD with absolutely original MAX7456EUI+ and standard FTDI debug port
- Receiver connector with PPM/SBUS/SumD/DSM2/DSMX and RSSI input
- Up to 3 serial ports and 8 PWM outputs
- Multifunction connectors with SWD/UART2~3/Soft-serial/Buzzer/LED trip/Voltage detection
- Multifunction OSD connectors with video_IN/ video_OUT/ICSP/debug port (UART1)
- PDB connector with 5V input/Current and Voltage detection
- Power input reverse polarity protection
Specification:
- Power input: 5.0~5.5V
- Dimension: 35x35x9mm
- Fixing hole spacing: 30mm
- Weight: 7.3g
- PPM/RSSI/SBUS/SumD Receiver Cable
- Camera/video-TX cable
- Buzzer/LED strip/voltage detect cable
- OSD debug port to FTDI adapter cable
More information: Click here
Package included:
- 1x BeeRotor F3 Flight Controller
