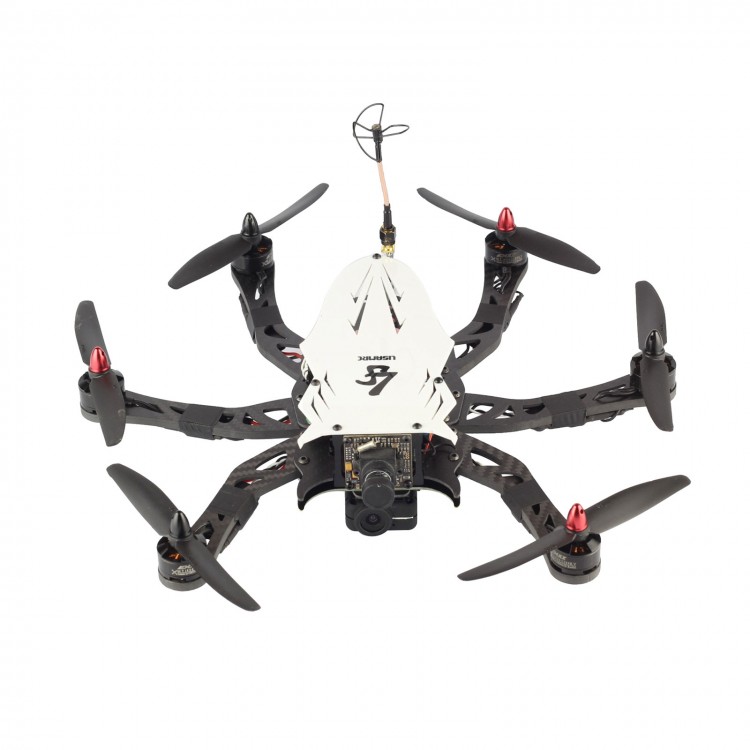

Beetle LS-300 Glass Fiber Alien Hexacopter with Emax 1806 Motor & 12A ESC & CC3D Flight Control for FPV Photography

Beetle LS-300 Glass Fiber Alien Hexacopter with Emax 1806 Motor & 12A ESC & CC3D Flight Control for FPV Photography

Description:
- Name of the product: beetle
- No. of the product: L3-300
- Glass fiber weight: 160g
- Center wheelbase: 300mm
- Unfolding size: 295*270mm

Official recommendation (not included)
- Brushless electronic machine: 1806-2204(2000-2300kv)
- Brushless electronic adjustment: 10-15A 3S
- System support: mini apm cc3d
- Battery support: 3s 1500-2200mah
- Throttle rod: 5030 iches

Parameters
- Body frame adopts 1.5mm glass fiber board, light weight
- The hexacopter is with PCB circuit lower board for placing the wires
- Hexacopter arm thickness is 5mm,
- Front placed FPV camera, compatible with Mobius mini camera





CC3D Flight Controller Description:
- CC3D openpilot opensource flight control is suitable fro MINI 200/250/300 multicopter
- With damper two sides sticks, and three connecting cables
- Shell size: 40mm*40mm*14mm
- Board size: :36mm*36mm
- Board net weight: 7.3g
- Total weight: 15.2g

Emax MT1806 Motor and ESC Features:
Motor:
- KV: 2280
- No. of cell: 2-3S
- Framework: 12N 14P
- Propeller: 5-6inch
- Length: 26.7mm
- Weight: 18g
- Shaft: 2MM
- Diameter: 25mm

ESC:
- Based on Simonk programme
- Low voltage protection, over current protection, power on self detection function
- Supportmax rotate speed: 210,000r（2 magnetic poles), 70,000r(6 magnetic pole), 35000r(12 magnetic poles)
- MCJ and BEC adopts different stabilizer, improve anti interference ability
- ESC multiparameters can be set through RC
- Throttle range can be set, to compatible with different receiver, has very good low speed performance
- Built in linear BEC or switch BEC


Package Include:
- Beetle LS-300 Glass Fiber Alien Hexacopter Frame Kit  x 1pcs
- EMAX 1806 Motor  x 6pcs
- EMAX 12A ESC x 6pcs
- CC3D Flight Controller x 1pcs
- 5 inch Carbon Fiber Propeller x 3pairs
