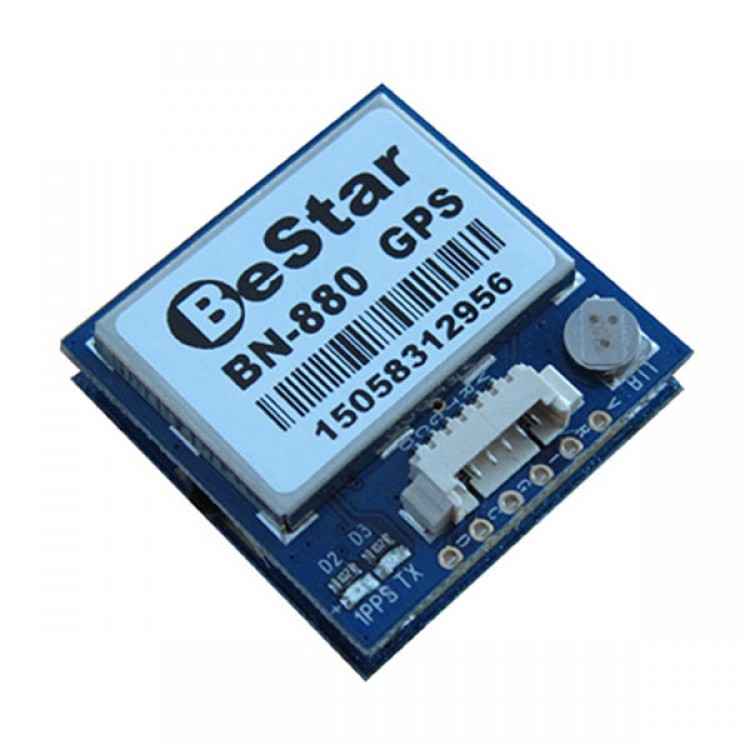

BeStar Flight Control GPS BN-880 UBLOX NEO-M8N Dual Mode Module Compass
Description:
- Default: TTL level, 9600, 1HZ, standard NMEA-0183 agreement output, with compass ICHMC5883L
- Baud rate to choose, 4800,9600,19200,38400,115200
- Output agreement to choose: NMEA-0183 or UBX
- Output frequency to choose: 1Hz-10Hz output
- Size: 28mm*28mm*10mm
Parameters:
- Power supply: DC voltage: 2.8V-4.3V, typical: 3.3V or 5.0V
- Consumption: acquisition: 50mA @5V
- Receiving format: GPS, GLONASS, Galileo, Beidou, QZSS and SBAS
- Receiving channel: 72 searching channel
- Receiving sensitivity: cold start: -167dBm, acquisition: -148dBm
- Positionig time: cold start: 26S -130dBm, warm start: 25S hot start: 3S
- Level positioning precision: 2m at open wild
- Output frequency: 1HZ-10HZ, default 1HZ
- 1PPS precision: <15ns, pulse width: 100ms
- Acceleration precision: 0.1m/s
- Max height: 18000m
- Max speed: 515m/s
- Max acceleration: 4G
- UART interface: UART port: TXDA and RXDA
- Support Rate: 4800bps to 115200bps, default 9600bps
- UART is used for NMEA output
- Working temp: -40---85defree
- Storage temp: -40---85degree
- Weight: 10g
