BETAFPV ELRS Micro TX Module 2.4GHz Transmitter Module With OLED Screen For Long-Range FPV Drones

BETAFPV ELRS Micro TX Module 2.4GHz Transmitter Module With OLED Screen For Long-Range FPV Drones

Features:
- Maximum power 500mW
- Built-in cooling fan. When the power exceeds 250mW, the fan will automatically work at a constant speed
- Fit various remote controllers. Support Micro JR interface, and provide GND/VCC/CRSF interface for those without JR interface. Supports most ELRS receivers on the market. Support for all OpenTX remote controllers and some remote controllers (T16IZ, T16SZ, T18SZ, ET16, etc.)
- External power supply. Suitable for long-distance voyages. With XT30 interface and Type-C interface, it can be powered by external power supply (5V~12V)
- Built-in OLED display and a 5D button (Short press the button to switch. Long press the button to confirm) to adjust parameters. Adjustable parameters include transmit power packet frequency, return rate, color of RGB lights, frequency pairing, upgrade
- Adjustable colors of LED light, and the default is Cyan (cyan blue). Colors can be adjusted in White/Blue/Cyan/Aqua/Red/Green/Yellow/Purple

Parameters:
- Type: 2.4GHz
- Data refresh rate: 50Hz/150Hz/250Hz/500Hz
- RF output power: 25mW/50mW/100mW/250mW/500mW
- Frequency band: 2.4GHz ISM
- Return packet rate: can be closed, 1:2/1:4/1:8/1:16/1:32/1:64/1:128
- Support WIFI upgrade

Precautions:
1. Please not connect 3S or more batteries to the Micro TX Module, otherwise it will cause permanent damage.
2. Before the Micro TX Module is powered on, please install the matching antenna, otherwise its PA chip will be damaged.

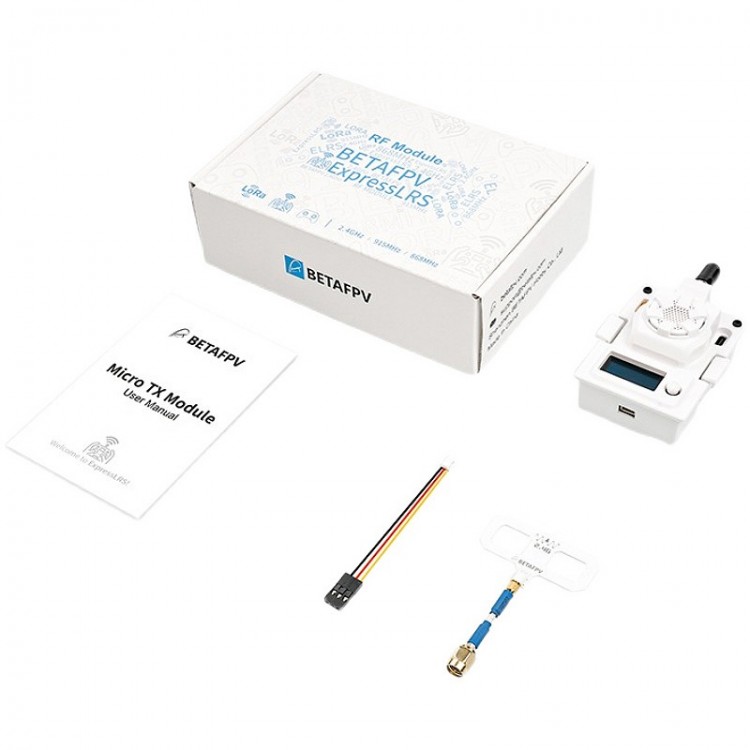

Package Included:
- 1 x Set of TX Module

Note:
- Battery is not included in the package.
