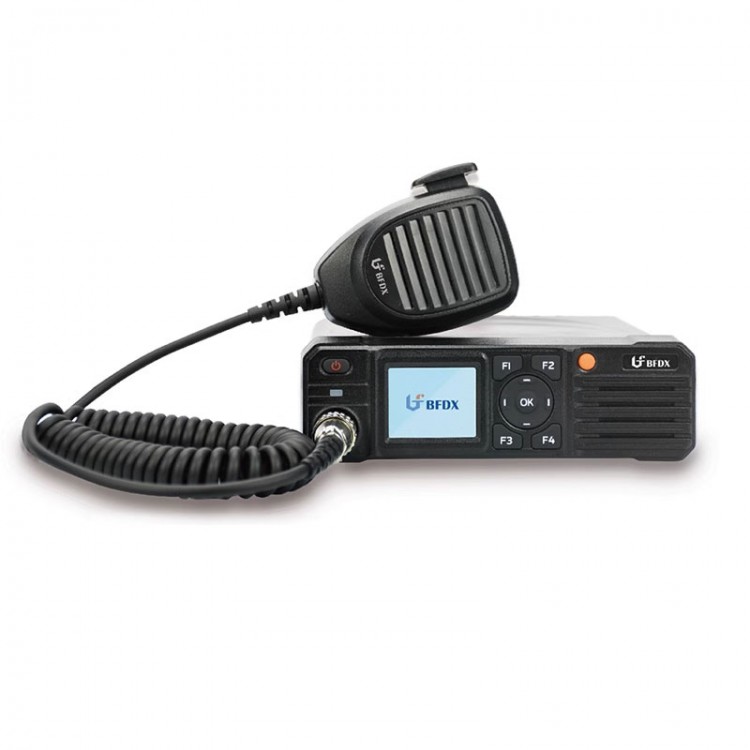

BFDX BF-TM8500 50W 400-480MHz DMR Transceiver 1024-Channel Mobile Radio for Logistics Road Trips

BFDX BF-TM8500 50W 400-480MHz DMR Transceiver 1024-Channel Mobile Radio for Logistics Road Trips

Description:
BF-TM8500 is a DMR mobile radio. It is suitable for intercity transportation, large and medium-sized logistics, off-road driving, road trips, etc.

It boasts a compact size, with voice encryption, diversified alarm modes, adjustable powers, intelligent color screen, concise keyboard for operation. BF-TM8500 supports large-capacity channels, wide coverage and fast transmission speed.

Bluetooth, recording and positioning functions are optional.

Features:
- Voice encryption
- Supports roaming
- Give priority to calls
- Supports DCDM
- Diversified alarm modes
- 1024 channels
- Adjustable powers: 50W/25W/10W
- Optional Bluetooth function
- Optional recording function
- Optional positioning function

Specifications:
General Parameters:
- Frequency range: 400-480MHz
- Total channels: 1024
- Zones: 64
- Channel spacing: 12.5KHz/25KHz
- Operating voltage: DC13.8V (±20%)
- Frequency stability: ±1.5ppm
- Antenna impedance: 50Ω
- Dimensions: 162mm (L) x 157mm (W) x 51mm (H)/6.4" x 6.2" x 2"
- Weight: 1300g/2.9lb

Transmitter:
- Output power: 50W/25W/10W
- 4FSK modulation: 12.5 data only: 7K60FXD; 12.5kHz data and voice: 7K60FXE
- FM modulation: 12.5kHz: 8K50F3E; 25kHz: 16KF3E
- Modulation limit: ±2.5kHz at 12.5kHz; ±5kHz at 25kHz
- FM noise: -40dB
- Spurious emissions: -36dBm ≤ 1GHz/-30dBm ≥ 1GHz
- Adjacent channel power: ≤ -60dB
- Frequency response: +1/-3dB
- Audio distortion: 3%
- Digital voice encoder: AMBE3000

Receiver:
- Digital sensitivity: 5%BER: 0.25uV
- Analog sensitivity: 0.25uV (12dB SINAD)
- Intermodulation: 60dB
- Adjacent channel selectivity: 60dB
- Spurious suppression: 60dB
- FM noise: -40dB
- Frequency response: +1/-3dB
- Rated audio output power: 5W
- Rated audio distortion: 3% (typical)
- Conducted radiation: -57dBm
- GPS positioning accuracy: Horizontal positioning accuracy ≤10m (under good signal conditions)
- TTFF (time to first fix) cold start: < 1 minute (under good signal conditions)
- TTFF (time to first fix) hot start: < 10 seconds (under good signal conditions)

Environmental Indicators:
- Working temperature: -20℃ to +60℃
- Storage temperature: -20℃ to +70℃

Package Included:
- 1 x Main unit
- 1 x Power cable
- 1 x Handheld microphone without buttons
- 1 x Fastener for microphone
- 2 x Screws for fastener
- 1 x Bracket
- 2 x Screws for fixing
- 1 x Fuse

Packaging Details:
- G.W.: 2.5kg
