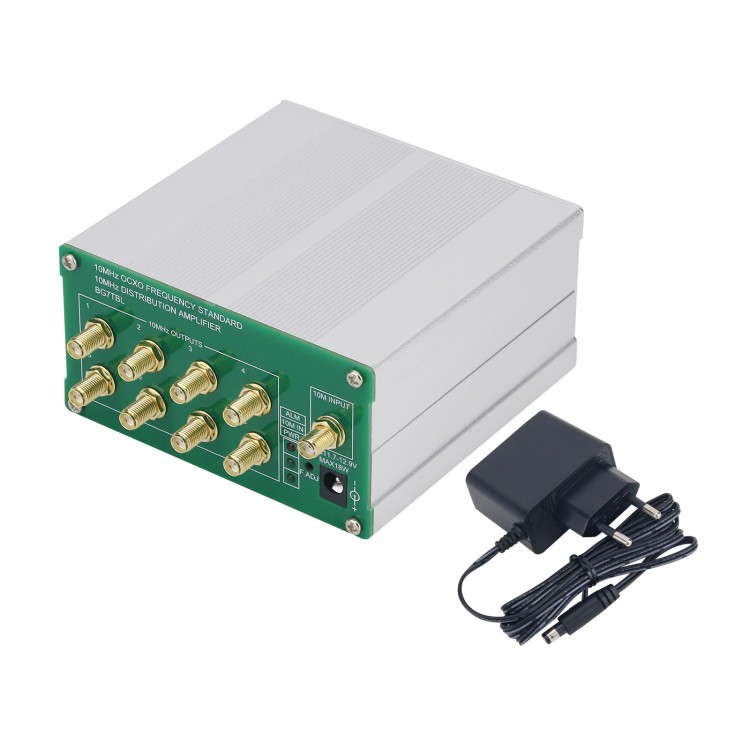

BG7TBL 10MHz 0.1Vpp-5Vpp Frequency Divider 8-Channel Output Distribution Amplifier with Built-in OCXO
Specification:
- Model: FDIS-8-SMA-10M
- Power supply: DC11.7-12.9V, maximum 18W
- Input: 10M, 0.1Vpp - 5Vpp
- Output: 8-channel, 1VRMS (13dBm+/-2dB)
- Interface: SMA, 5.5 - 2.1
- Indicator:
PWR: power indicator
EXT 10M: external 10M output indicator
ERROR: light on, without output
- Size: W x H x L = 100 x 55 x 120
- Net weight: 600g
FAQ:
Q: What is this?
A: This is a frequency distribution amplifier. It can input external signals and then output 8-port signals.
Q: What is the main purpose?
A: For example, you have a 100M frequency reference and you have to provide a reference for 5 instruments separately. In this case, you can use this amplifier.
Q: What does the 3 indicators do?
A: PWR: the power indicator. As long as the power is connected, the light will be on, used to check whether the power supply part is good. EXT IN: this light is on, indicating that the output is an external input signal. ALM: When this light is on, it indicates no signal output or equipment failure. 3 seconds of power-on and 3 seconds of power-off are not counted.
Q: What is the use of OCXO?
A: It can be used as clock source. When there is no external input, internal OCXO is used automatically.
Package Included:
- 1 x Frequency Divider
- 1 x Power Adapter (AC110-220V - DC12V/1A)
