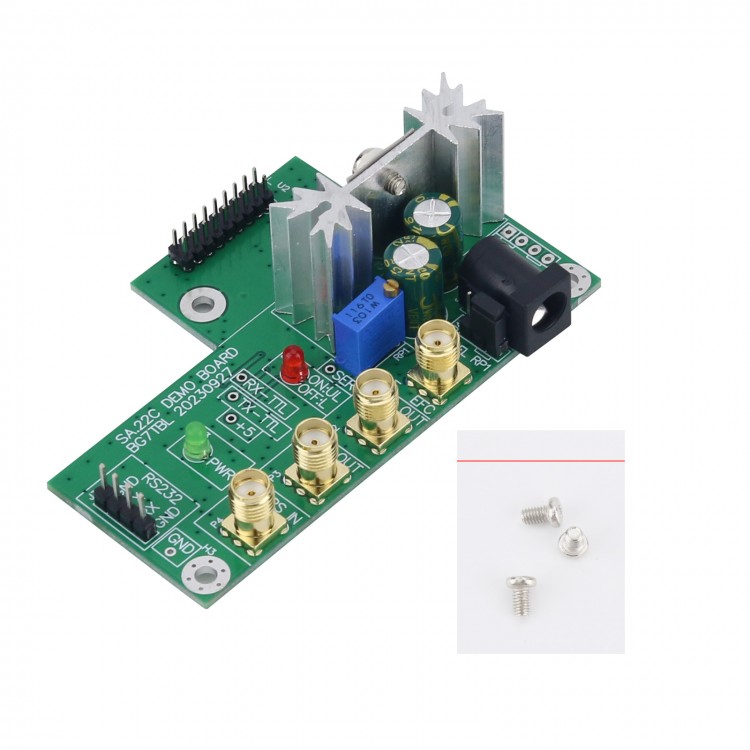

BG7TBL SA.22C Rubidium Clock Interface Board Atomic Clock Testing Board Multiple Channel Output

BG7TBL SA.22C Rubidium Clock Interface Board Atomic Clock Testing Board Multiple Channel Output

Interface Description:
- J1: power interface, 5.5-2.1, onboard anti-reverse diode
- JP2: 4PIN, unwelded, directly connected with J1, suitable for wiring out
- D3: power indicator, green indicator light on when power on, otherwise light off
- RP1: frequency adjustment potentiometer, 0-5V output voltage range, chosen by J4 jumper whether to use it or not.
- JP4: jumper, choose to use potentiometer or not
- U2: to connect SA.22C; when connecting SA.22C, it is necessary ti tighten the screws.
- P1-EFC: EFC pin, input 0-5V, fine tune the frequency of the rubidium clock. If RP1 potentiometer is selected for connection, it is recommended to suspend the pin.
- P2-1PPS-OUT: 1PPS output
- P3-FA-OUT: Rubidium clock 10M output, support frequency adjustment with ox command, board mounted 0.1uF DC isolation capacitor
- P4: 1PPS input
- D2: Locked LED, red; LED on for unlocked; LED off for lock
- J3: RS232 interface, directly connect the serial port of the computer, TX connect the RX pin of the serial port, RX connect to the TX pin of the serial port, 57600BPS
- Size: 79 x 52 x 25mm
- Fixing hole size: M3.0---71.36mm, distance to board border---3.5mm
- Weight: 70g

Precaution:
- If the height is not suitable, the height can be adjusted appropriately by adding or reducing shims;
- When using, it is necessary to fix the circuit board to prevent poor contact;
- When adjusting the potentiometer, be sure to fix the circuit board properly, otherwise it may cause poor contact and significant frequency fluctuations.

FAQ:
Q: What should I do if the green light on the circuit board does not light up after power on?
A: Check if the power supply is plugged in properly and if the power supply is sufficient. It is recommended to use a 15V 3A power supply (not included). If the power supply is normal, it may be a malfunction of the rubidium clock. It is recommended to check the rubidium clock.

Q: After powering on, the green light is on, while the red light remains on and cannot be extinguished. What should I do?
A: The rubidium clock is malfunctioning. It is recommended to check the rubidium clock.

Q: Just powered on, the green light and the red light is on. After a while, the red light goes out, and after a while, the red light on again. What should I do?
A: The rubidium clock is malfunctioning. It is recommended to check the rubidium clock.

Q: Just powered on, the green light and the red light is on, and after a while, the red light becomes dim, but it doesn't go out. What should I do?
A: The rubidium clock is malfunctioning. It is recommended to check the rubidium clock.

Q: Just powered on, the green light is on, but the red light remains off. What should I do?
A: The rubidium clock is malfunctioning. It is recommended to check the rubidium clock.

Q: After connecting the potentiometer, no matter how the potentiometer is adjusted, the frequency cannot be adjusted to 10M
A: The rubidium clock needs to be adjusted or has a malfunction. It is recommended to check the rubidium clock.

Q: After connecting to SMA, why cannot check the 10M output?
A: Check if the SMA interface has good contact. If contact well, there is a possibility of rubidium clock malfunction. It is recommended to check the rubidium clock.

Package Included:
- 1 x Board
- 2 x M3 Screws
