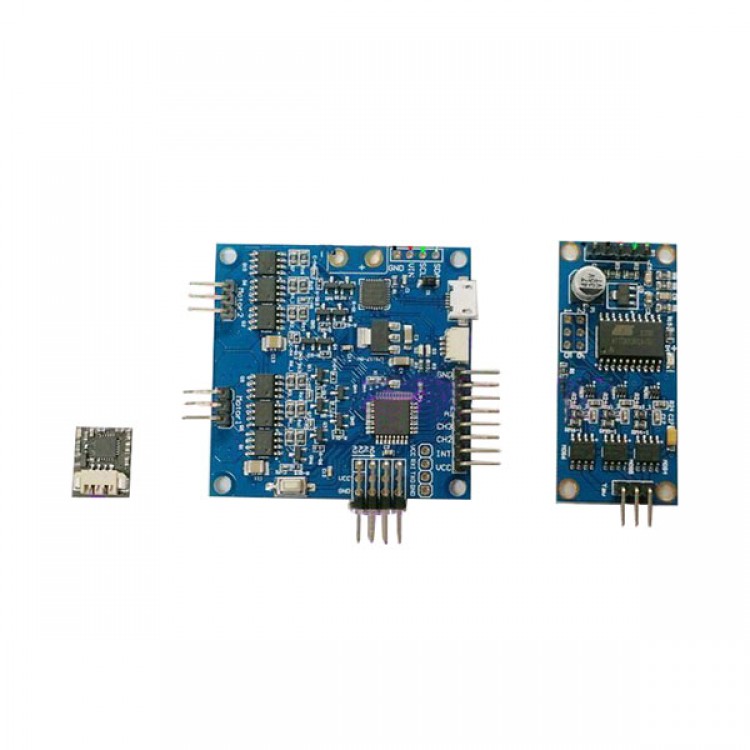

BGC 3.15 Large Current BGC 3.12 Three Axis Brushless Gimbal Control Board
Description:
- Newest version BGC 3.15 large power two axis brushless motor drive board
- Adopting MOS tube to drive, have larger current
- Can support 2-8 full series gimbal motor
- Adopting MOS tube to substitute L6234D to drive motor
- Peak current: 10A
- Long working hours 5A
- Back up IIC interface can directly connect with expansion board
Note: this version can not update official firmware, only update compatible firmware
Paremeters:
- Dimension: 5*5*cm
- Drive mode: MOS tube
- Max working current: 10A
- Continuous working current: 5A
- Can support motor: 2-8 series (from gopro to RED camera)
- Net weight: 15g
- Internal firmware: BGC Russian version
- BGC 3.15 reserves the third axis control board interface, easier to connect BGC third control board
Package includes:
- Three axis BGC3.12 control board x 1 set
