BGC Universal 3-axis/ 3-axle Brushless Gimbal Controller | V2.2B2 (Firmware upgradeable)

BGC Universal 3-axis/ 3-axle Brushless Gimbal Controller | V2.2B2 (Firmware upgradeable)

Features:
- With  latest official  firmware
- Firmware upgrade is supported when newer official version firmwares available
For more information and trouble shooting, please refer to developer's official website: http://www.simplebgc.com/eng/downloads/
Basic welding/ironing skills are required.

Specifications:
BGC Universal 3-axis/ 3-axle Brushless Gimbal Controller | V2.2B2 (Firmware upgradeable)
Weight:  17g  (including sensor and wire)
Main board size: 50 x 50mm
Power input: max 4S/ 16.8V (12V/ 3S is suggested)

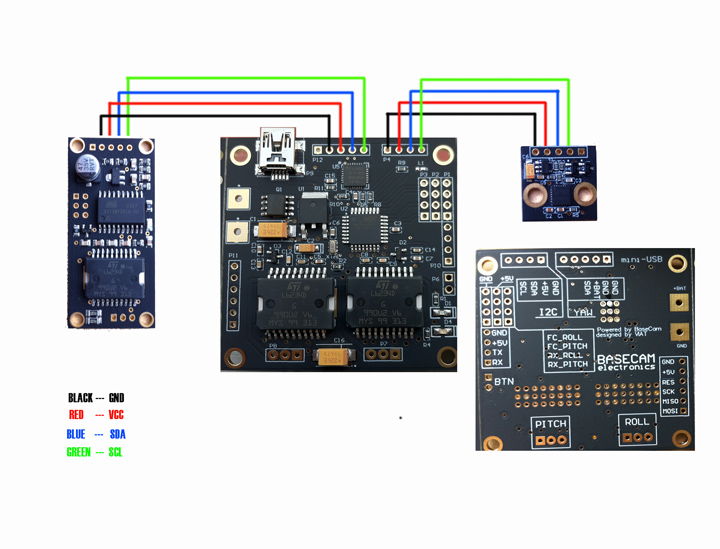

Connection diagram:
a. Connection with other official accessories

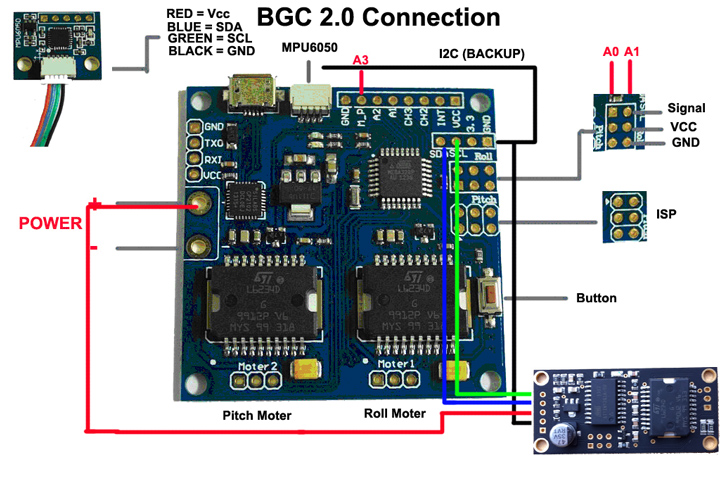

b. Connection with BGC2.0

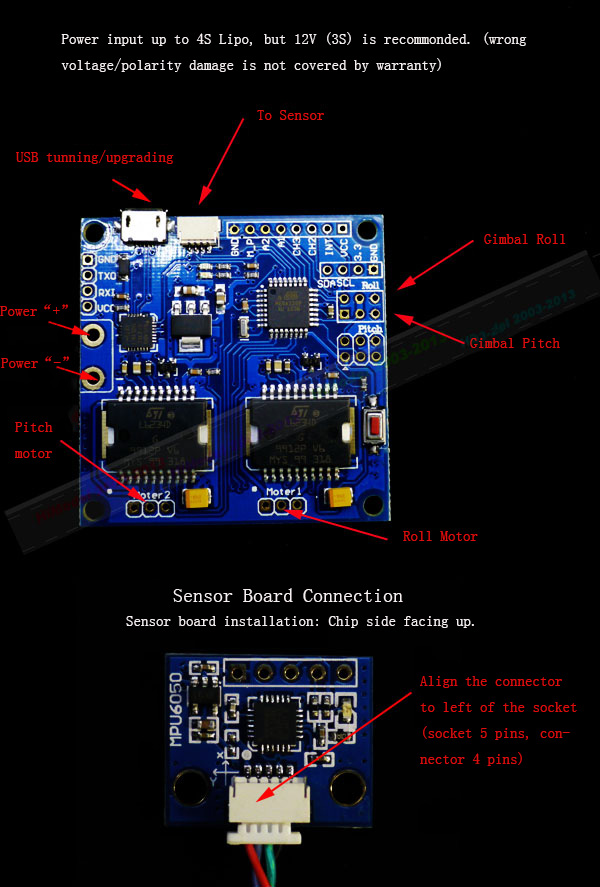

General Installation hint:  Sensor chips side facing UP (below picture is taken from previous version controller board and for reference only).




Note about brushless gimbals & Controllers:
Brushless gimbals and controllers are very new to the market and it is an emerging technology. You will need some patience and effort to get it to work as seen on youtube etc.. THIS IS NOT A PLUG AND PLAY DEVICE!
You will need some understanding of Microsoft windows drivers, software settings and tuning the gimbal software to your liking and to suit your multirotor.
Getting things to work the way it’s supposed to will be YOUR RESPONSIBILITY. Please understand this before you purchase any Brushless Gimbal Related Item.

Includes/Requires:

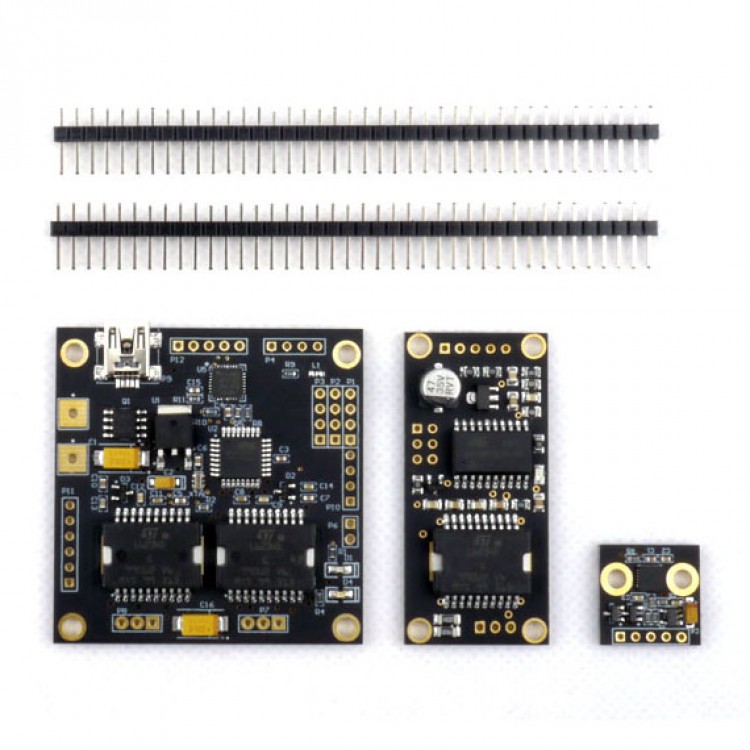

Includes:
- 1 x GBC Universal Brushless Gimbal Controller main board
- 1 x 3rd axis expansion board
- 1 x sensor
- 1 x metal terminals

Requires:
- 1 x sensor wire (length may vary from your systems)

The official firmware download: http://www.simplebgc.com/eng/downloads/
