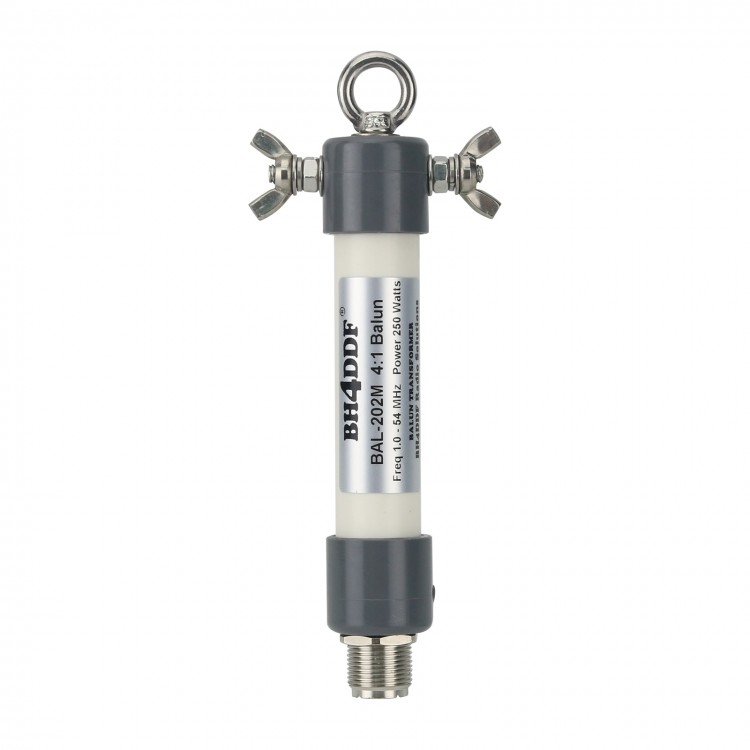

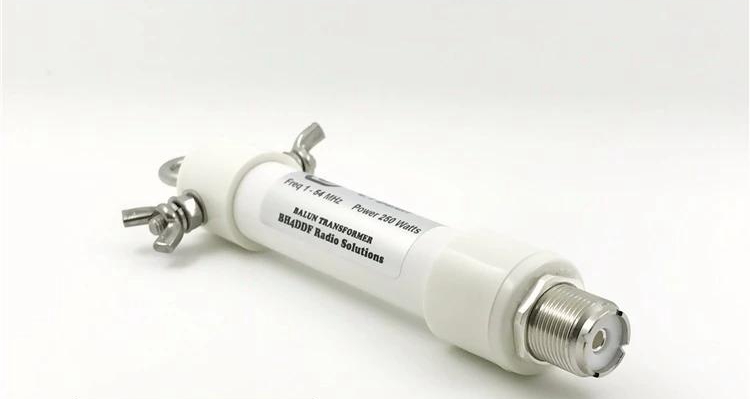

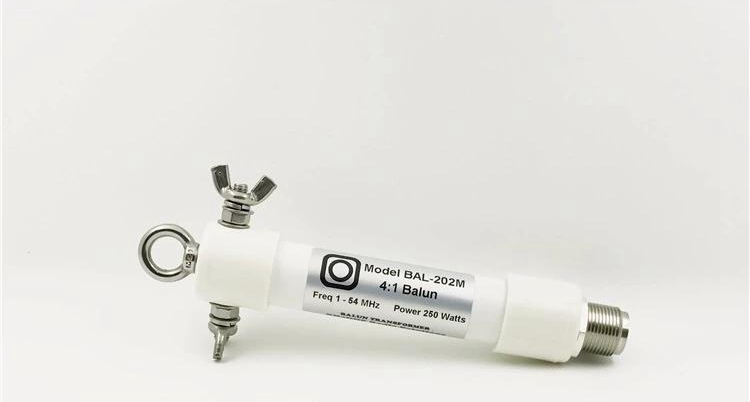

BH4DDF BAL-202M 4:1 Shortwave Balun 200ohms Waterproof Antenna Balun Transformer 1-54MHz 250W SSB/PEP 350W
Features:
- BAL-202M 4:1 Balun has undergone several rounds of testing and selection of high-quality accessories, with a frequency coverage of 160 meter - 6 meter. It is made of high-quality ferrite thickened nickel zinc high-frequency magnetic rings that are manually wound. The SWR of the entire amateur frequency range is less than 1.1, with a continuous power of 250W and an instantaneous power of up to 350W.
- Using for RCOMTECH exported nickel plated SO-239 connector, with lower attenuation losses.
- Lightweight and easy to use, with excellent waterproof performance, the pipe size is only (diameter) 20x115mm, and U-bolts are used for easy fixation on the support rod. It is a necessary item for HAM to set up simple antennas outdoors.
Specification:
- Frequency range: 1.0 - 54MHz
- SWR: ≤1.1
- Rated impedance: 200ohms
- Power: 250W SSB, PEP 350W
- Size: (diameter) 20 x 115mm
Package Included:
- 1 x Balun
