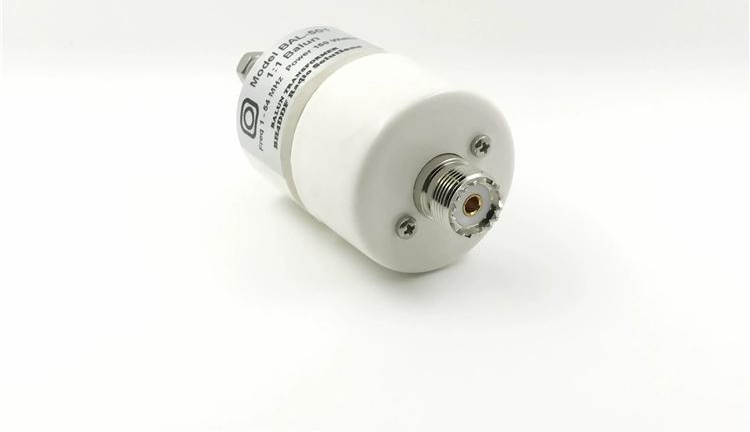

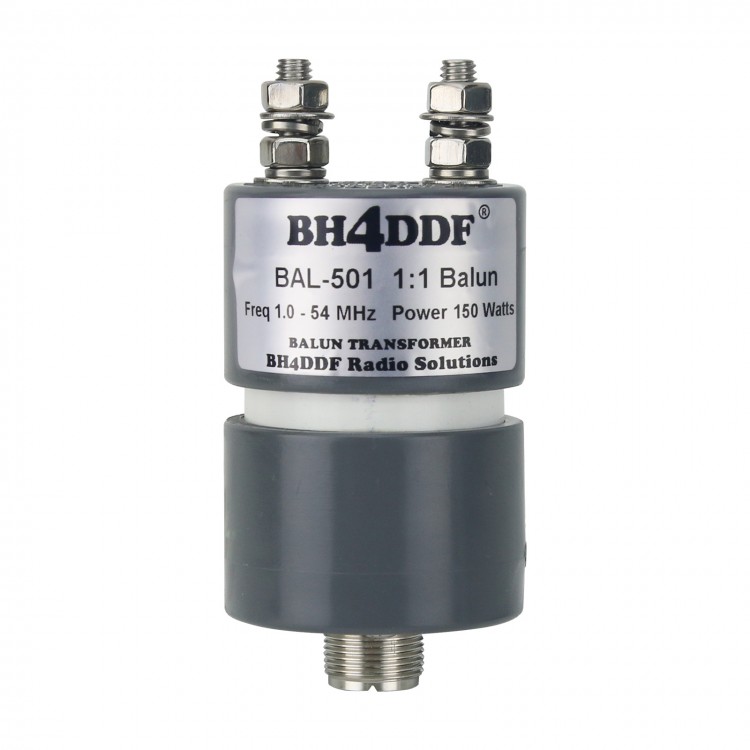

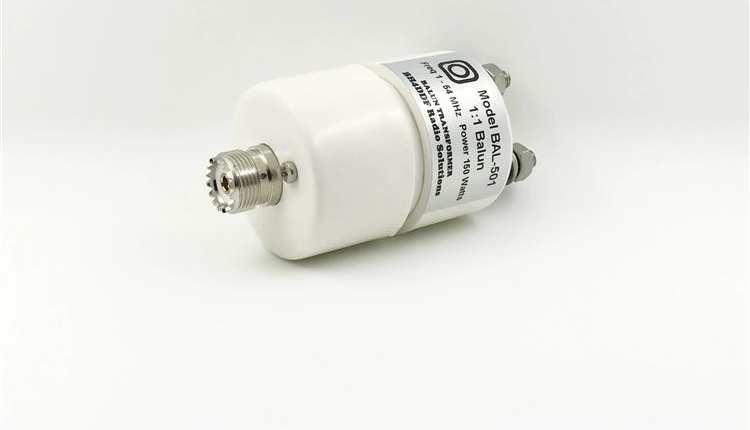

BH4DDF BAL-501 1:1 Shortwave Balun 50ohms Waterproof Antenna Balun Transformer 1-54MHz 150W SSB/PEP 250W
Features:
- The BAL-501 1:1 balun is suitable for Yagi and Dipole antennas (positive V inverted V). After several rounds of testing and selection of high-quality accessories, the frequency covers 160 meter - 6 meter. It is made of high-quality ferrite thickened nickel zinc high-frequency magnetic rings and is manually wound. The SWR of the entire amateur frequency range is less than 1.1, with a continuous power of 150W and an instantaneous power of up to 250W.
- Using for RCOMTECH exported nickel plated SO-239 connector, with lower attenuation losses.
- Lightweight and easy to use, with excellent waterproof performance, the pipe size is only (diameter) 46x70mm, and U-bolts are used for easy fixation on the support rod. It is a necessary item for HAM to set up simple antennas outdoors.
Specification:
- Frequency range: 1.8 - 54MHz
- SWR: ≤1.1
- Rated impedance: 50ohms
- Power: 150W SSB, PEP 250W
- Size: (diameter) 46 x 70mm
Package Included:
- 1 x Balun
