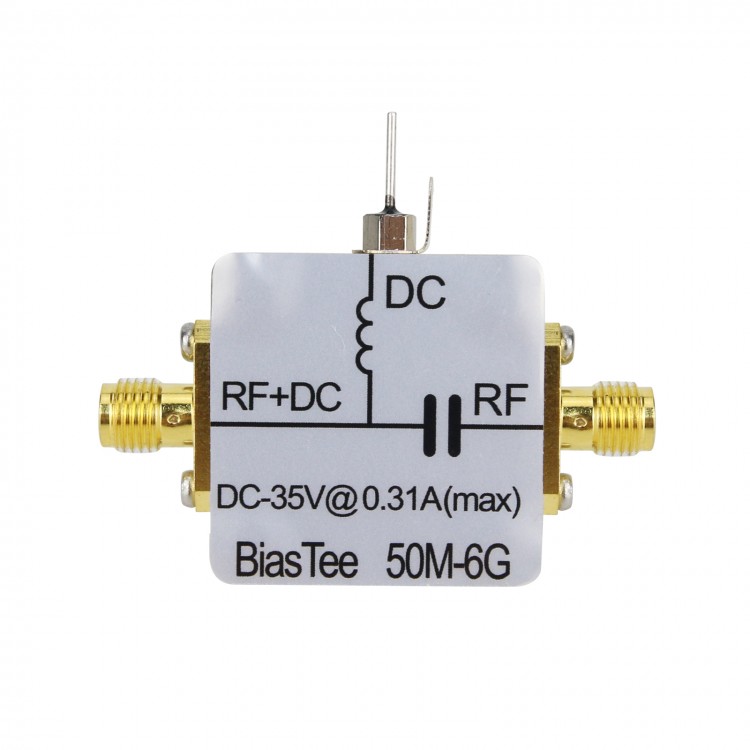

Bias Tee 50M-6GHz Module Maximum 310MA DC-35V 0.31A Max RF DC Blocking Featuring Low Insertion Loss
Application Scenarios:
- Antenna RF feed
- When the module is tested, connect the instrument to block DC (spectrum analyzer and signal source cannot be directly connected to the DC power, so they need to be blocked)
Module Parameters:
- Operating frequency: 50MHz-6GHz
- Insertion loss: ≤ 0.8dB
- Normal working voltage: DC-35V
- Normal working current: ≤ 0.31A
- Module Dimensions: 27 x 27 x 10mm/1.1 x 1.1 x 0.4" (LxWxH)
Package Included:
- 1 x Bias Tee
