Bilins HDV-M615 Mini Size AV to HDMI Analog Composite Input to HDMI 1080p (60HZ) Output Converter Adapter

Bilins HDV-M615 Mini Size AV to HDMI Analog Composite Input to HDMI 1080p (60HZ) Output Converter Adapter

Introduction:
The MINI AV to HDMI Converter is a universal converter for analog composite input to HDMI 1080p (60HZ) output. The analog to digital conversion in this module employs 10 bits maximal 162MSPS sampling, black/white level expansion, color transition improvement, dynamic range expansion, blue stretch , auto-detect and auto-convert the composite signal to 1080p(60HZ) output. Making video come alive, delivering the sharpest, most realistic HD visuals available.

Features:
- No need to install drivers, portable, flexible, plug and play.
- Provide advanced signal processing with great precision, colors, resolutions, and details;
- Support PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input.
- Support HDMI 1080p or 720p output.

SPECIFICATIONS:
- Input ports: 1xRCA (Yellow, White, Red).
- Output ports: 1xHDMI.
- Dimensions (mm): 66(D) x55(W) x20(H)
- Wight (g): 40
- Composite input: PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M,PAL/N.
- HDMI output: 1080p60Hz, 720p/60Hz.

PACKAGE CONTENTS:
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
1) Main unit (Mini CVBS to HDMI converter) -----1 PCS
2) USB cable ---------------------------------------------1 PCS
3) User Manual. ------------------------------------------1 PCS

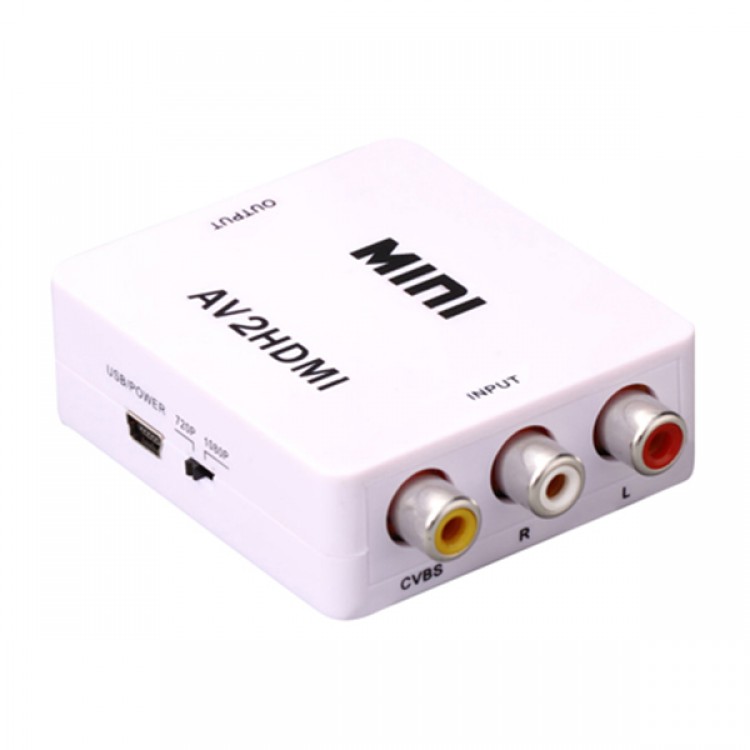

PANEL DESCRIPTIONS:
Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.
Back Panel:Top    Panel: Front Panel:
CVBS --------------CVBS INPUT
L/R------------------Audio Input
USB Power---------------USB Power Input
720P/1080P--------720P or 1080 output switch
HDMI --------------HDMI Output
