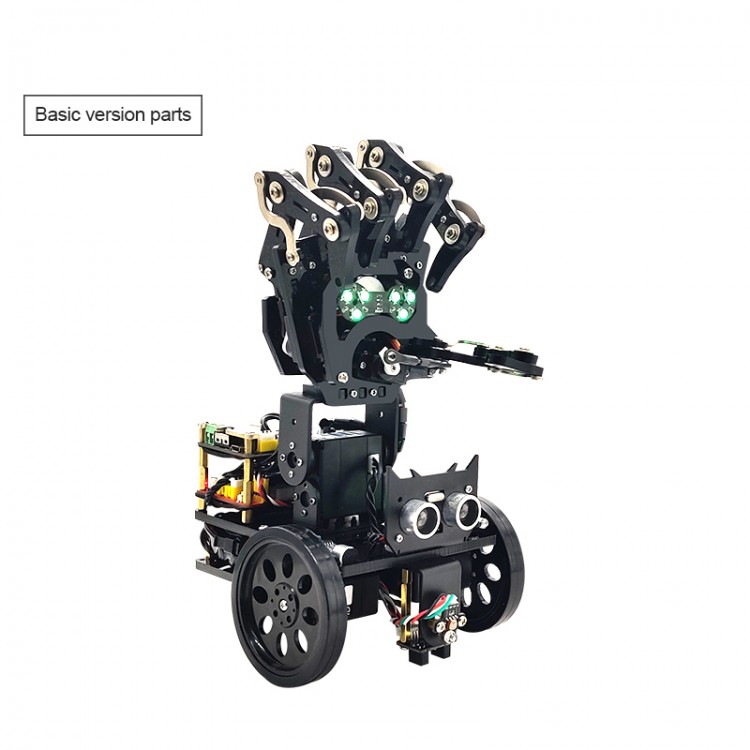

Bionic Mechanical Programming Robot DIY Kit Mobile Manipulator Palm Robotic Arm Unassembled

Bionic Mechanical Programming Robot DIY Kit Mobile Manipulator Palm Robotic Arm Unassembled

Description:
The Gihand2 programming robot has finger sensing and posture sensing functions. It can control the front, rear, left, and right of the car. Equipped with MP3, infrared, sound, sensors, grayscale, loop, and RGB color light modules, it can realize voice broadcast, infrared automatic presentation, voice control rock-paper-scissors, ranging, smart loop, etc. ways to play.

Upgrade:
-Graphical programming
-More flexible
-Mobile chassis

10 Smart Ways to Play:
Discoloration with one wave
-Infrared trigger RGB to change color

Block recognition
-Gray module to identify colors

Infrared demo
-Infrared induction triggers automatic demonstration actions

Voice Control rock-paper-scissors
-Rock-paper-scissors are detected in 1s

Sound control lights
-The color changes every time the sound is detected

Voice control report the number
-Detecting sound trigger number

Ranging bending
-Bend according to the ultrasonic ranging distance

Ranging report the number
-Automatically report the number of measuring distance within a certain range

Distance measurement and obstacle avoidance
-When less than the safe distance, it will automatically avoid obstacles

Intelligent tracking
-The car walks along the black line and the colored lights show the walking state

Control Methods:
-Computer control
-WeChat control
-Infrared control

STM32 Control Board
Product model: STM32
Product weight: 32g
Dimensions: 70mm*49mm
Hole size: 63mm*42mm
Power supply voltage: 6-8.4V
Online/offline operation: support
Storage actions: 10000+
Reserved buttons: 2 way
Open source: provide source code and schematics
Programming environment: KEIL
Total steering gear interface: 3 channels (5 channels can be connected in series for each channel)
PWM servo interface: 6 channels
Support: handle/WiFi/MP3/infrared, etc.
Sensor interface: 6 channels
Secondary development: support
PC software: provide
WeChat mini program: provide

Specifications:
Body parameters
Size: 120mm/325mm
Weight: 940g
Material: Acrylic + metal parts

Power supply system
Battery: 2S lithium battery
Life time: 60min

Degree of freedom
Palm: 5 degrees of freedom
Waist: 1 degree of freedom
Wheels: 2 degrees of freedom

Electric control system
Control board: STM32 board
Servo: ZX361D servo

Software part
Host computer: Zide graphical software
Mini Program: WeChat Mini Program

Software:
-Zide graphics
-WeChat Mini Program
-Open source 32 board program
-Wired debugging

Hardware:
-Robotic sensing palm
-Base
-ZPI5D
-Small wheels
-Open source 32 board
-Infrared remote control
-USB data cable
-Bluetooth module

Package List:
1 x Robotic Arm Kit

Note: The product is not assembled
