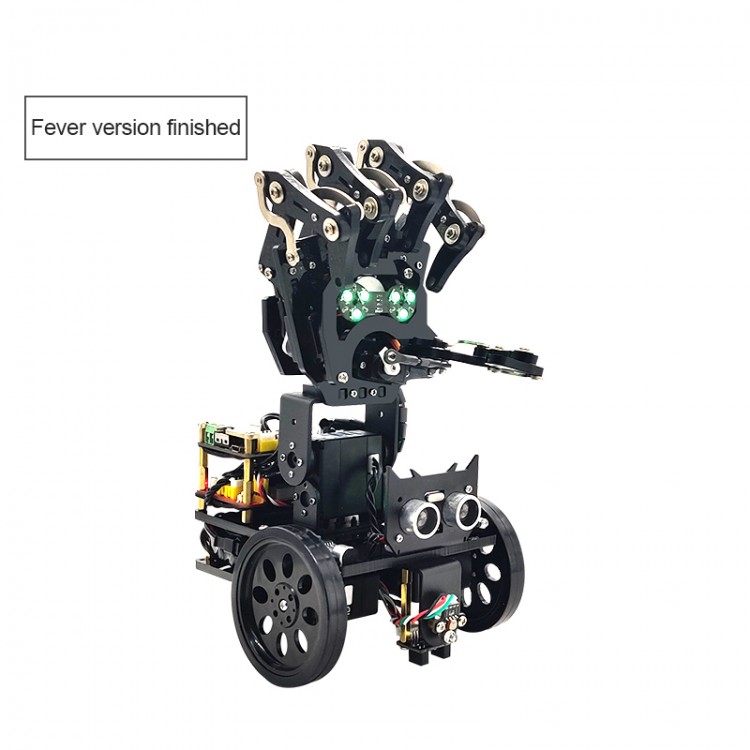

Bionic Robotic Arm Mobile Manipulator Palm Mechanical Programming Robot w/ MP3 Playing Dance Assembled

Bionic Robotic Arm Mobile Manipulator Palm Mechanical Programming Robot w/ MP3 Playing Dance Assembled

Description:
The Gihand2 programming robot has finger sensing and posture sensing functions. It can control the front, rear, left, and right of the car. Equipped with MP3, infrared, sound, sensors, grayscale, loop, and RGB color light modules, it can realize voice broadcast, infrared automatic presentation, voice control rock-paper-scissors, ranging, smart loop, etc. ways to play.

Upgrade:
-Graphical programming
-More flexible
-Added RGB lights, tracking, color recognition, etc.
-Mobile chassis

10 Smart Ways to Play:
Discoloration with one wave
-Infrared trigger RGB to change color

Block recognition
-Gray module to identify colors

Infrared demo
-Infrared induction triggers automatic demonstration actions

Voice Control rock-paper-scissors
-Rock-paper-scissors are detected in 1s

Sound control lights
-The color changes every time the sound is detected

Voice control report the number
-Detecting sound trigger number

Ranging bending
-Bend according to the ultrasonic ranging distance

Ranging report the number
-Automatically report the number of measuring distance within a certain range

Distance measurement and obstacle avoidance
-When less than the safe distance, it will automatically avoid obstacles

Intelligent tracking
-The car walks along the black line and the colored lights show the walking state

Control Methods:
-Computer control
-WeChat control
-Infrared control

Features:
ZP15D bus and PWM servo
-Multiple steering gear modes, high torque and high precision, easy replacement of plug-in interfaces, and internal anti-blocking.

RGB lights
-Highlight RGB lights, single bus control, easy to use and expandable.

-2200mA lithium battery
More convenient to move, more muscles to carry, with overcharge and overdischarge protection.

MP3 voice broadcast
-Bus MP3 module, simple control, convenient wiring, with high-quality speakers and large volume.

-Open Mixly/Servo version source code
Open control source code, so that programming is no longer boring.

Arduino Expansion Board
Product model: ZL-A1
Main control chip: AT Mega328 UNO
Programming Environment 1: Arduino IDE
Programming environment 2: Mixly graphical programming
Product weight: 21g (bare board)
Dimensions: 70mm*49mm
Hole size: 63mm*42mm
Power supply voltage: 6-8.4V
Extended sensor 1: digital/analog sensor
Extended sensor 2: IIC pseudo-type sensor
Open source: provide source code and schematics
Bluetooth module: support
PS2 handle: support
Infrared remote control: support
MP3 voice module: support
WiFi camera module: support
Servo anti-reverse connection: support
Secondary development: support
Details: provide

STM32 Control Board
Product model: STM32
Product weight: 32g
Dimensions: 70mm*49mm
Hole size: 63mm*42mm
Power supply voltage: 6-8.4V
Online/offline operation: support
Storage actions: 10000+
Reserved buttons: 2 way
Open source: provide source code and schematics
Programming environment: KEIL
Total servo interface: 3 channels (5 channels can be connected in series for each channel)
PWM servo interface: 6 channels
Support: handle/WiFi/MP3/infrared, etc.
Sensor interface: 6 channels
Secondary development: support
PC software: provide
WeChat mini program: provide

Specifications:
Body parameters
Size: 120mm/325mm
Weight: 940g
Material: Acrylic + metal parts

Power supply system
Battery: 2S lithium battery
Life time: 60min

Degree of freedom
Palm: 5 degrees of freedom
Waist: 1 degree of freedom
Wheels: 2 degrees of freedom

Electric control system
Control board: Arduino control board/STM32 board
Servo: ZX361D servo

Software part
Host computer: Zide graphical software
Mini Program: WeChat Mini Program

Way to Control:
-Phone control
-Synchronization control
-Infrared control
-Sound sensor
-Ultrasound
-RGB
-Colorful lights
-Grayscale sensor
-Tracking sensor

Software:
-Mixly graphical
-Zide graphics
-WeChat Mini Program
-Mixly program
-Open source 32 board program
-Wired debugging
-Wireless debugging

Hardware:
-Robotic sensing palm
-Robotic sensing glove
-Base
-ZPI5D
-Small wheels
-Open source 32 board
-A1 sensor board
-Infrared remote control
-USB data cable
-Bluetooth module
-MP3 module
-Infrared sensor
-Sound sensor
-Ultrasonic module
-Grayscale sensor
-Tracking sensor
-Small colored wooden block
-RGB color light module

Package List:
1 x Assembled Robotic Arm
1 x Accessories Kit
