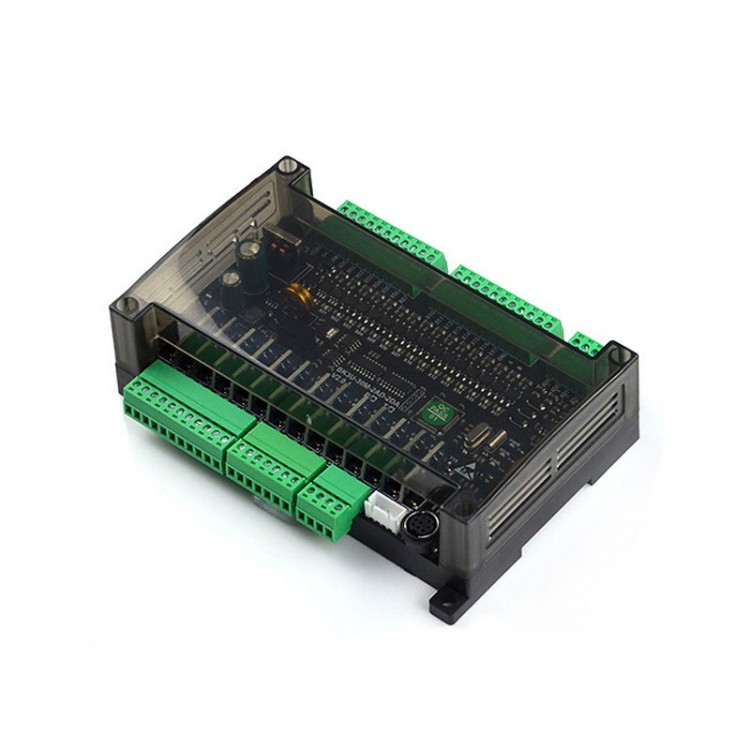

BK/FX3U-30MT-2AD-2DA PLC Controller Industrial Control Board 32BitHigh Precision and 100K Input and Output Pulse

BK/FX3U-30MT-2AD-2DA PLC Controller Industrial Control Board 32BitHigh Precision and 100K Input and Output Pulse

Features:
- It adopts transistor 12 point DI input - 8 point DO output and analog quantity 2AD input - 2DA output
- Using DC 24V power supply, do not input AC or 22V voltage
- Compatible with all instructions of FX3UPLC, and compatible with FX3U in maintaining the range of component power outage
- 2AD: 16 bit special use ADO=D8110 AD1=D8111 (input voltage range 0~10V or 0~20mA)
- 2DA: 16 bit special use DAO=D8114 DA1=D8115 (output voltage range 0-10V)
- Programming can be done using GX Developer or GX Works 2
- Can be downloaded/debugged/monitored online
- Supports Modbus and PID instructions
- With high-precision clock function

Technical parameters:
Auxiliary relay M:
- General: M0 - M499
- General: M1024 - M7679
- Power-off hold: M500 - M1023

Status S:
- General: S0 ~ 499  S900 ~ S4095
- Hold: S500 ~ S899

Timer T:
- 100MS: T0 ~ T199
- 10MS: T200 ~ T245
- 1MS: T246 ~ T249

Counter C:
- General: C0 - C99 (16Bit)
- General: C100 - C199 (16Bit)
- Hold: C200 - C219 (16Bit)
- 32Bit high speed counter: C235 - C255 (16Bit)
- 32Bit hold use: C220 - C234 (16Bit)

Data Register D:
- General: D0 - D127
- General: D1928 - D7999
- Hold: D128 - D1927
- 16Bit special use (AD): AD0 = D8110; AD1 = D8111 (0 ~ 10V is correspond to 0 ~ 2000 at M8115 position by default, 0 ~ 10V is correspond to 0 ~ 4000)
- 16Bit special use (DA): AD0 = D8114; AD1 = D8115 (0 ~ 10V is correspond to 0 ~ 2000 at M8115 position by default, 0 ~ 10V is correspond to 0 ~ 4000)

Pointer:
- JMAP/CALL branch: P0 - P127 128points
- Input interrupt and timing interrupt: IO ~15 6points

Input and output controlling method:
- Batch processing mode, input and output refresh instructions, equipped with pulse capture function

Package Included:
- 1 x BK/FX3U-30MT-2AD-2DA PLC Controller
