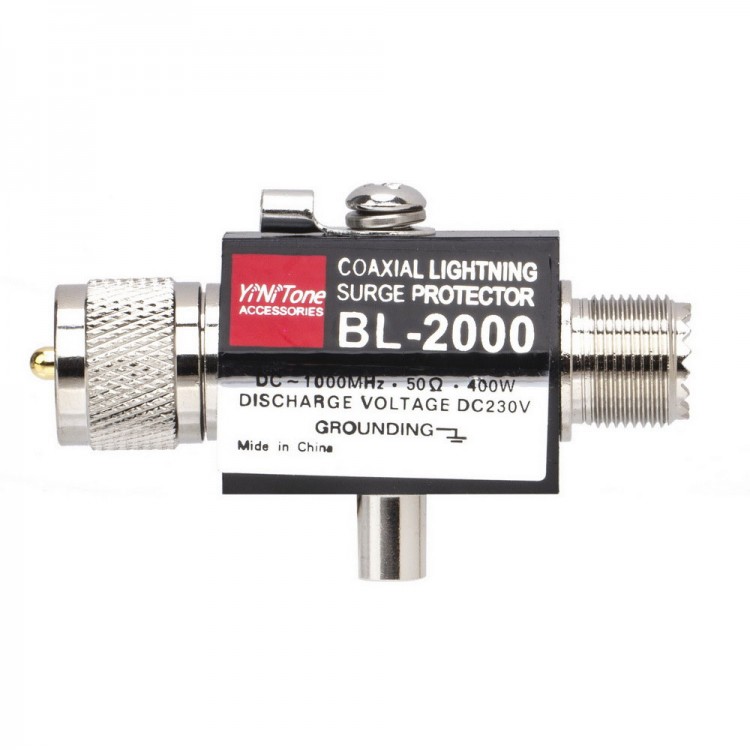

BL-2000 Coaxial Lightning Surge Protector PL259/M Male to PL259/M Female 400W 50Ω
Feature:
- Comprehensive Protection: Absorbs and grounds lightning surges from antennas on top of buildings, providing complete protection for transceivers, receivers, etc.
- Safety Guarantee: Designed with high safety in mind, the built-in inflatable lightning arrester element discharges and grounds the surge when the surge voltage exceeds a specified level.
- Convenient and Practical: Surge discharge and recovery action can be repeated as needed. If the lightning arrester components are damaged, they can be easily replaced with new components.
- Superior Performance: The coaxial structure of the lightning surge protector ensures excellent high frequency characteristics, wide bandwidth, low loss and SWR.
- Easy Installation: The coaxial lightning surge arrester adopts 1/4 wavelength short circuit principle, good lightning protection. Simple structure, sturdy and easy to install.
Specification:
- Type: Coaxial Lightning Arrestor
- Material: Stainless steel and copper
- Model: BL-2000
- Connector: PL259 Male to PL259 Female
- Frequency Range: DC~1000MHz
- Voltage VSWR: ≤1.1
- Peak Power: 400W
- Impedance: 50 Ohm
Package Included:
- 1 x BL-2000 Coaxial Lightning Arrestor
