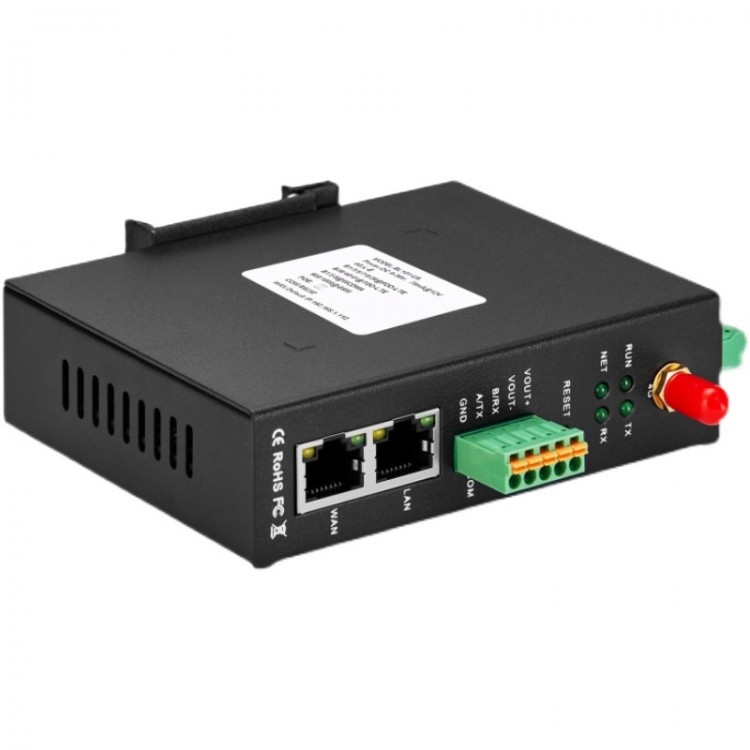

BL102 (4G + Network Port) PLC Gateway IoT Gateway Data Acquisition for Siemens Mitsubishi Delta

BL102 (4G + Network Port) PLC Gateway IoT Gateway Data Acquisition for Siemens Mitsubishi Delta

Description:
It is a Gateway that collects PLC data for Siemens, Mitsubishi, Omron, Delta, Allen-Bradley and Schneider and converts it to Modbus TCP, MQTT, HUAWEI Cloud, AWS, Alibaba Cloud, and King Pigeon Cloud protocols.

It's developed on embedded operation system for Linux with high stability. It is designed with various interfaces,1 RS485/RS232 (RS485 by default), 2 power supply inputs, 1 power supply output, 2 RJ45 Ethernet ports, 2 USB port, 1 SIM card slot, and 1 SD card slot. With 4G cellular and Ethernet network, it features with high speed and low latency data transmission.

For downlink, it supports various PLCs such as for Siemens, Mitsubishi, Omron, Delta, Allen-Bradley, and Schneider. For uplink, it supports for Modbus TCP, MQTT, HUAWEI Cloud, Alibaba Cloud, AWS, ThingsBoard, King Pigeon cloud, etc. Users can quickly connect many different industrial equipment to cloud platforms, SCADA, MES and other master computers. Multiple platforms and host computer systems can be online at the same time.

With TSL/SSL encryption, routing function and cascaded switch data collection, it can be used in
most of industrial application scenarios for secure data acquisition and remote monitoring purpose.

Features:
- Industrial grade PLC gateway
- PLC protocol to MQTT/OPC UA (optional)
- Support for Mitsubishi, Siemens, Delta, and Modbus
- Support various brand PLC and one-click connection for Huawei Cloud, AWS Cloud, Alibaba Cloud ThingsBoard, and King Pigeon Cloud
- Support 400 data points, 100 PLCs to collect data simultaneously. Up to 50 PLCs can be connected by serial port; and 50 PLCs by network interface
- One gateway can support PLCs of different brands; PLC protocol conversion to MQTT by internal calculation function
- Convert various data types, function codes, sorting methods, and decimal points of the PLC protocol into real values, and then transit to cloud platform by MQTT JOSN
- Support nine cloud platforms simultaneously, including for AWS Amazon Cloud, ThingsBoard, King Pigeon Cloud, MQTT, Modbus, Huawei Cloud, and Ali Cloud
- Support SSL encryption to ensure safer data transmission. X.509: Root certificate; Client Certificate; Client Key. Fully compliant with security strategy for AWS Amazon Cloud, Huawei Cloud, and Alibaba Cloud
- Support POE: flexible to wire, saving cost and energy. Safe and reliable to use. Only one Ethernet cable is needed for data transmission and power supply (transformer and power cord are not required)
- Timer function: The powerful timing task function supports the user to write data to the relevant registers regularly to realize timing control
- Alarm linkage function: alarm parameters and conditions can be set; alarm linkage to other registers and execute corresponding actions; alarm recovery linkage to other registers to execute corresponding actions. It has a powerful alarm function. When an alarm is triggered, the device reports the alarm status through MQTT. In addition, it can link other data points to perform other actions
- Data re-transmission function: When a network failure occurs, the device can cache 100,000 pieces of data. When the network resumes, it timestamps the data before uploading it to the server

Supported PLC:
- For Siemens S7-200, S7-200SMART, S7-300, S7-00, S7-1200, and S7-1500
- For Mitsubishi FX1S, FX3S, FX2N, FX3U, Q series, and A series
- For Omron CS series, CJ1/CJ2 series, and CP1H/CP1L series
- For MODBUS: Modbus RTU and Modbus TCP
- Others: for Delta, XINJE, Schneider, and ABB

Package Included:
- 1 x Gateway
- 1 x 4PIN 3.5MM Socket
- 1 x 5PIN 3.5MM Socket
- 1 x Rail Buckle
- 2 x Fixed Buckles
- 9 x Screws
- 1 x Antenna

Note:
- The default serial port is RS485.
- User manual in PDF will be provided (please scan the QR code of the card to download).
- The items pictured are for reference only. Its appearance may vary due to different models.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
