BL110UA Multi-protocol IoT Gateway Industrial-grade MQTT Gateway w/ Network Ports & OPC UA Protocol

BL110UA Multi-protocol IoT Gateway Industrial-grade MQTT Gateway w/ Network Ports & OPC UA Protocol

Read before Purchasing:
The BL series gateways do not have a power supply by default, as these devices are often used in environments where a power supply is already available (e.g. with a 24V switching power supply for a cabinet). The applicable voltage of the gateways is 9-36V DC. If you need a power supply, please contact customer service.

Introduction of BL110 Series:
Developed on Linux system, BL110 Series is a robust and cost-effective multiple-protocol IoT gateway with high stability. It has 1 RS232, 3 RS485, 1 CAN, 2 RJ45 (1 WAN & 1 LAN), 2 USB, 2 power input interfaces and 1 SIM card slot. Network can be connected via Ethernet to achieve high speed and low latency of data transmission.

In downlink, it supports various PLC protocols, including Modbus RTU Master, Modbus TCP Master, DL/T645, IEC101, IEC104, BACnet IP and BACnet MS/TP protocols.

In uplink, it supports for Modbus TCP, MQTT, OPC UA (optional), BACnet IP, HUAWEI Cloud, Alibaba Cloud, AWS Cloud, ThingsBoard Cloud, Sparkplug B, and KingPigeon Cloud. Users can connect it to various clouds as well as SCADA, OPC UA (optional), MES, BAS and other master computers for data processing. It can be online in different clouds and master systems simultaneously.

With TSL/SSL data encryption and routing function, it can be used to provide internet access for other devices with cyber security. More devices can be connected to it with cascaded switch for data processing. Due to complete functions and industrial grade quality, it can be used in many application areas.

Features:
- Supports simultaneous connection to 9 cloud platforms: for AWS Cloud, ThingsBoard, KingPigeon Cloud, Modbus integration with private cloud, MQTT integration with private cloud, Huawei Cloud, and Alibaba Cloud
- One gateway simultaneously supports data acquisition and protocol conversion for multiple PLCs of different brands. For Mitsubishi PLC, Siemens PLC, MODBUS RTU PLC and MODBUS TCP PLC
- Data upload after network disconnection: In the event of a network failure, the gateway itself can cache 100,000 pieces of data. When the network is restored, it will upload the data to the server with a timestamp
- Downlink supports: various PLC protocols such as Modbus RTU Master, Modbus TCP Master, DL/T645, IEC101, IEC104, BACnet IP, and BACnet MS/TP
- Uplink supports: for Modbus TCP, MQTT, OPC UA (optional), BACnet IP, HUAWEI Cloud, Alibaba Cloud, AWS Cloud, ThingsBoard Cloud, Sparkplug B, KingPigeon Cloud, etc.
- DC 9-36V power supply with terminal wiring. 2 channels of redundancy power input with reverse wiring prevention protection design, either channel can be used
- 1 RS232 and 3 RS485 (can be RS232 if required) interfaces
- Serial port baud rate supports 2400bps-115200bps; Stop bit supports 1, 2; Data bit supports 7, 8; Parity bit supports None, Odd, Even
- 2 RJ45 Ethernet ports: 1 WAN + 1 LAN. Data of equipment connected to LAN, WAN or cascade
switch can be collected. Both network link and rate indicators are available. Built-in isolation
transformer for up to 2KV electromagnetic insulation
- Supports TSL/SSL data encryption for security
- Supports routing function
- Supports sending configuration files and change the configuration remotely through MQTT
- Supports Modbus RTU to Modbus TCP, transparent transmission
- Supports RESET button with function of returning to factory setting to prevent wrong parameter
setting (long press RESET until RUN indicator light is off)
- Supports hardware and software watchdog with high reliability
- Supports restarting the device at a scheduled time
- Metal case with IP30 protection grade, safely isolated from inner system, especially suitable for
industrial control application
- Compact size: 109mm x 31mm x 145mm/4.3" x 1.2" x 5.7" (LxWxH). Supports wall-mounting and DIN Rail mounting

Package Included:
- 1 x Set of Gateway

Packaging Details:
- Weight: 0.6kg

Note:
- The version with OPC UA protocol is optional.

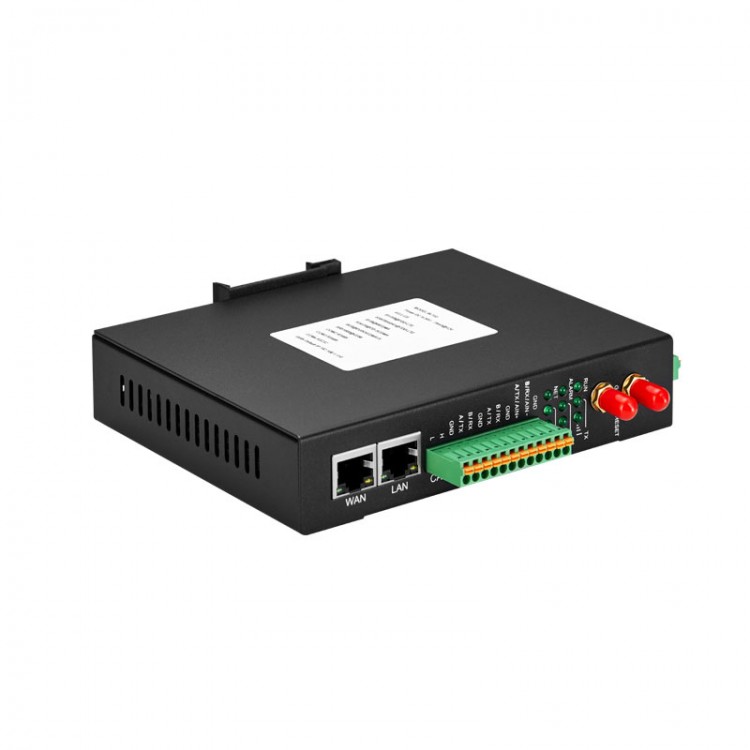

- The product is designed without 4G antenna and GPS antenna interfaces. The pictures below are for reference only. Thank you for your understanding!
