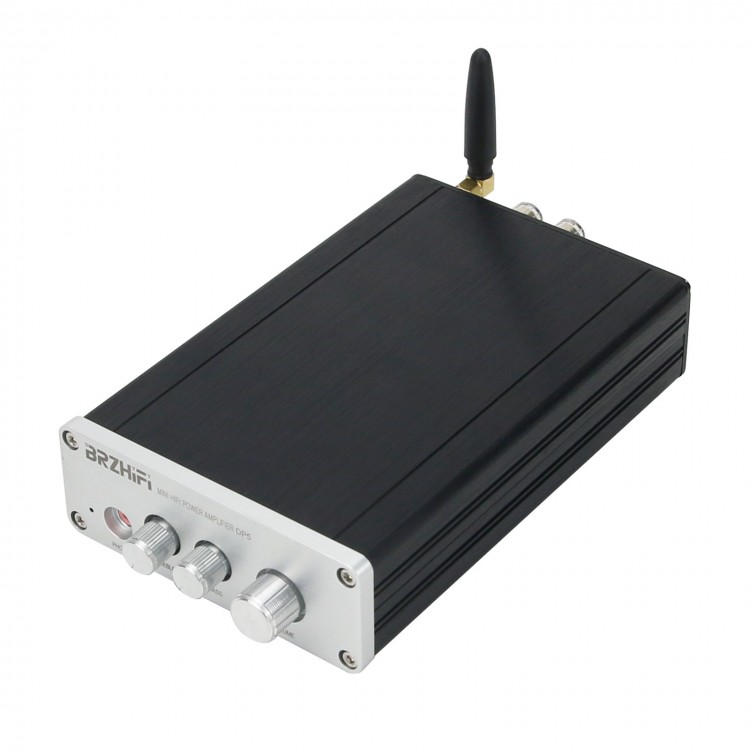

BL50B QCC3034 Bluetooth 5.0 Digital Power Amplifier 100W+100W TPA3116 APTX HD LDAC Decoding

BL50B QCC3034 Bluetooth 5.0 Digital Power Amplifier 100W+100W TPA3116 APTX HD LDAC Decoding

Description:
The digital power amplifier is an amplifier with the characteristics of low distortion, low noise, and large dynamic range. It has excellent sound quality transparency, resolution, and low-frequency shock. It is even more characterized by low power consumption, low heat, and small size. It is currently becoming the mainstream of home modern power amplifiers, and also widely used as car power amplifiers.

Specification:
Output power: 100W+100W
Bluetooth protocol: APTX-HD
Headphone monitoring: support
Bluetooth chip: QCC3034
Decoding chip: PCM5102A

Features:
-Equipped with QCC3034 Bluetooth receiver chip, it supports Bluetooth 5.0 and supports APTX-HD, achieving 24 bit lossless music transmission.
-High current red ring fever inductance, low heat generation, low loss, transparent sound quality.
The large-capacity capacitor filter array has sufficient strength and good dynamics.
-Using 5.0 high version Bluetooth chip to achieve faster transmission speed, more stable signal, more stable connection, and lower power consumption. At the same time, it reduces the call delay problem in 4.2 and below.
-APTX HD high-definition decoding, audio technology can ensure that devices that support wireless Bluetooth can provide high-definition HD audio.

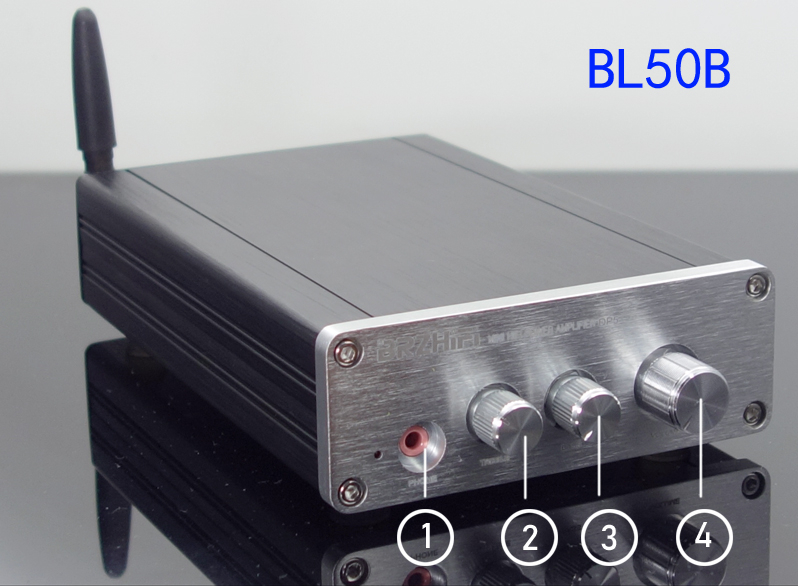

① 3.5 Stereo headphone socket—can be directly connected to wired headphones.
② Treble adjustment knob—left turn treble attenuation, right turn treble boost.
③ Bass adjustment knob—left turn treble attenuation, right turn treble boost.
④ Master tone adjustment knob—turn left treble attenuation, right turn treble boost (turn left to the end completely turn off the power).

Package List:
1 x Power Amplifier
