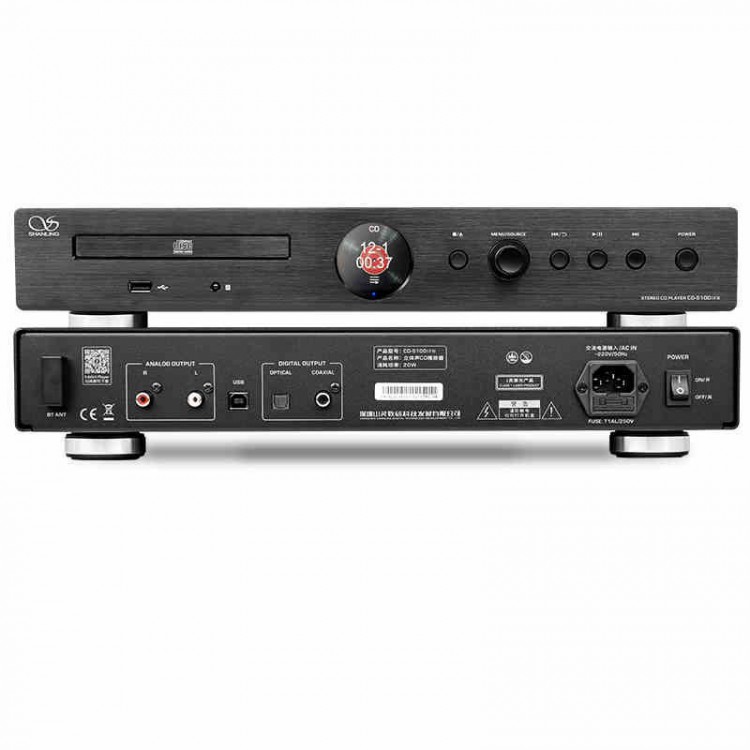

Black CD-S100 (23) Bluetooth USB Decoder DSD HiFi Digital CD Player MT1389L Servo System AK4493SEQ DAC

Black CD-S100 (23) Bluetooth USB Decoder DSD HiFi Digital CD Player MT1389L Servo System AK4493SEQ DAC

Description:
- Stylish appearance, dynamic fashion, the front panel design of CD-S10023 version exudes a sense of technology, the screen provides a clear view from a distance; Continuing the excellent craftsmanship and design of the previous generation, using the CNC processed metal panels to ensure stability and effectively prevent resonance.
- For INGENIC X2000 multi-core heterogeneous processor: CD-S100 23 version main control adopts high performance X2000 multi-core heterogeneous processor, enjoying the natural, pure, and immersive audio experience brought by powerful three-core structure.
- Golden configuration, new update, CD-S100 23 version adopts MT1389L servo system with disk error correction capability and faster read speed. Classic optical head for Sanyo HD850 and servo circuit ensure stable and reliable signal reading.
- Using AK4493SEQ DAC chip and the new LTA8092 operational amplifier, supporting audio specifications up to: 768kHz/32bit, DSD 512 hardware decoding.
- Supports mobile phone connection control, download the exclusive Shanling music app "Eddict Player" and use the Synclink on your mobile phone to control the CD player. Not only supports navigation of local songs on USB flash drive, but you can also categorize and control playback on your phone, as well as control CD playback such as play, pause, next track, etc., for more elegant and flexible control.
- Independently developed technology for FPGA + dual crystal oscillator, femtosecond low phase noise 45MHz/49MHz active crystal oscillator, phase noise as low as -150dB, ensuring high precision low jitter in all digital signal transmission of CD-S100 (23), effectively reducing jitter, for more pure and stable sound.
- Supports selection and playback of music USB flash drive, play your collection at any time. The S100 23 supports USB flash drives with capacities up to 2TB. After connecting to the mobile app "Eddict Player", there are even more personalized operations.
- Supports specifications up to DSD512.
- And supports 2T capacity USB flash drive and portable hard drive.
- Supports USB DAC, PCM 384KHz 32bit.
- Bluetooth module AP6256AC, supports Bluetooth 5.0, Bluetooth reception supports for LDAC, AAC, SBC, music features on mobile phones, tablet PC, computers, all can be played in high definition on S100.
- For Motorola IPS HD screen with a resolution up to 320x290, larger screen, more complete information, song names and covers are clear in the blink of an eye.

Highlights:
- For INGENIC X2000 main control chip
- MT1389L servo system
- AK4493SEQ DAC
- LTA8092 operational amplifier
- 3rd generation technology for FPGA
- Mobile APP control (for Eddict Player)
- 768kHz/32bit DSD512
- For Sanyo HD850 optical connector
- For Motorola 320x290 HD LCD Screen
- R-shaped transformer
- Stylish UI design
- Bluetooth 5.0

Specification:
- Size: 430 x 335 x 79mm
- Net weight: about 6.6kg
- Power consumption; < 20W
- Main control: for INGENIC X2000
- Decoding chip: AK4493SEQ
- Operational amplifier: LTA8092
- USB decoding chip: for INGENIC X2000
- Bluetooth: BT5.0
- Power supply: main transformer
- Display method: AMLCD screen (320 x 290)
- Control method: APP + remote control
- Input method: CD, USB-PC, USB flash drive, Bluetooth input
- Output method: coaxial, optical fiber, analog output
- USB flash drive format: DSD, DXD, APE, FLAC, WAV, AIFF/AIF, DTS, MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3, OPUS, TAK, etc. Support for CUE
- Audio output level: 2.1V
- Supported audio specification: 768kHz/32bit, DSD512
- Frequency response: 20Hz - 20kHz (±0.5dB)
- SNR: 114dB
- Distortion: < 0.0007%
- Dynamic range: 117dB

Package Included:
- 1 x Host
- 1 x Power Cable
- 1 x Remote Control
- 1 x User Manual
