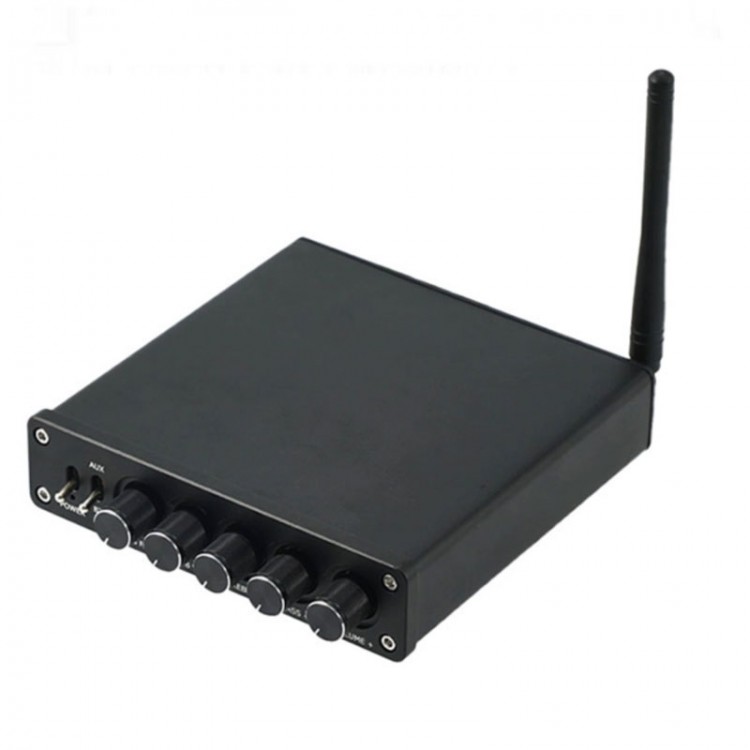

Black D210B TPA3116 Power Amplifier Class D HiFi Digital Amplifier with Tune Adjustment Function (3034 Bluetooth)
Features:
- 100W + 50W x 2 output power
- D210B is a 2.1 channel digital power amplifier, which has built-in 2 TPA3116D2 digital power amplifier with 50W x 2 output for left and right channel and 100W for bass port.

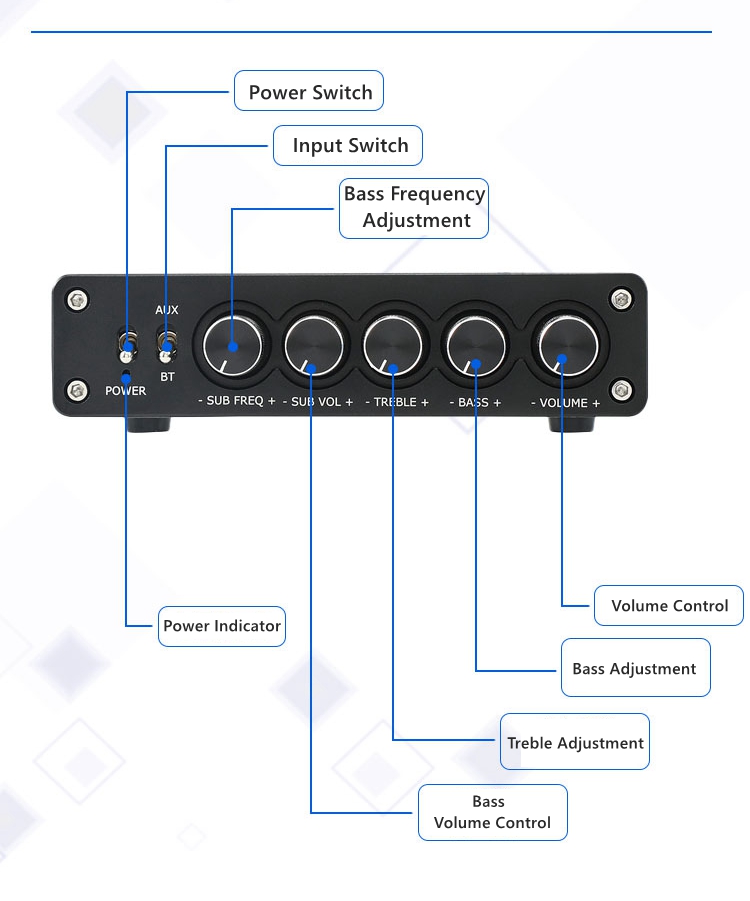

- Treble and bass adjustment, built-in Bluetooth 5.0 chip
Precaution:

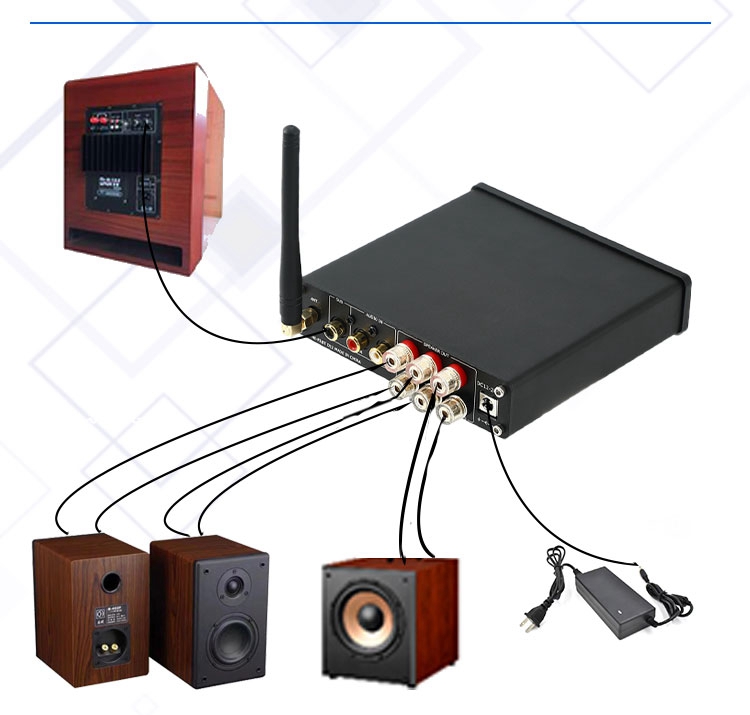

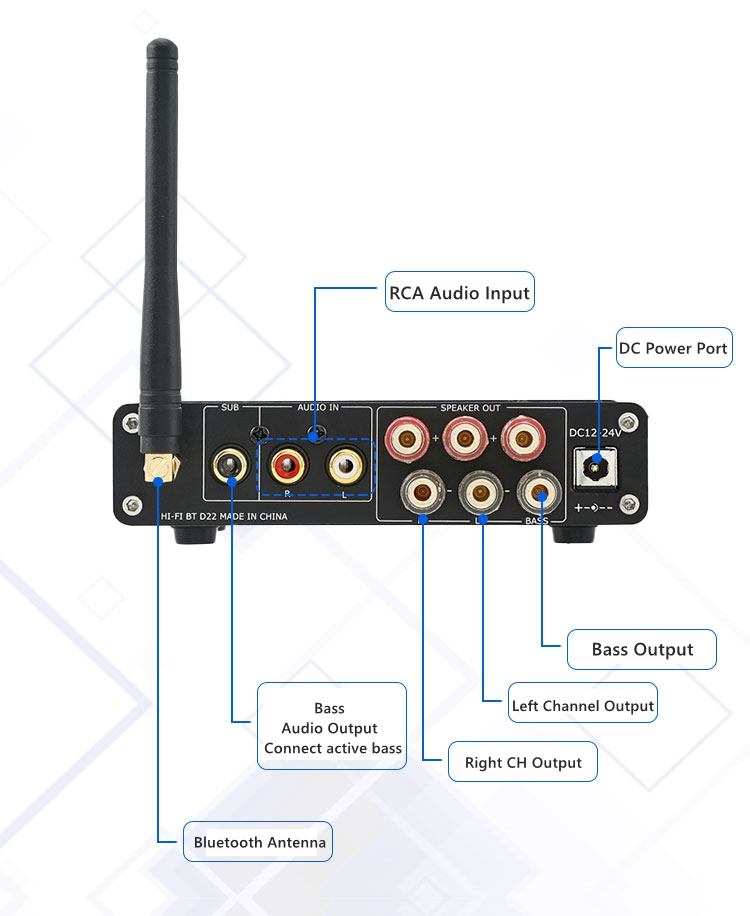

- The RCA interface for the audio output of the subwoofer behind the amplifier can only be connected to an active subwoofer, and the output interface of the subwoofer wiring post can only be connected to a passive subwoofer.
- D210B output can only be connected to passive speakers, it can not be connected to active speakers and fixed-voltage speakers.
- D210B use DC12-24V power supply, the higher the voltage, the higher the power, but it can not exceed 24V, otherwise it will burn the amplifier, power plug 5.5 x 2.5, inside positive and outside negative.
- The negative poles of the amplifier output cannot be connected together, otherwise it will cause the amplifier to be burned.
Specification:
- Model: D210B
- Output channel: 2.1channel
- Power amplifier chip: TPA3116
- Bluetooth version:Bluetooth 5.0
- Frequency range: 20 - 20KHz
- Working voltage: DC12V - 24V
- Output power: 50Wx 2 + 100W/4ohm (measured by 24V)
- Applicable speaker: 0W ~ 300W 4ohm, 8ohm, 16ohm
- Bluetooth transmission distance: 10m
- Protection mechanism: power reverse protection, short-circuit protection, self-recovery overheating protection

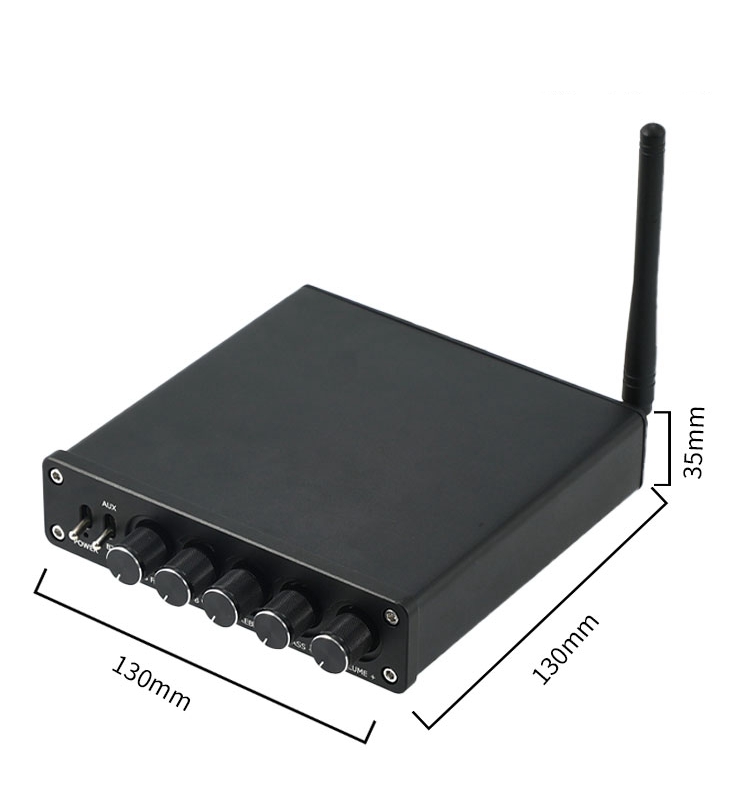

- Size: 130 x 130 x 35mm
- Weight: 500g
- DC power port: 5.5 x 2.5

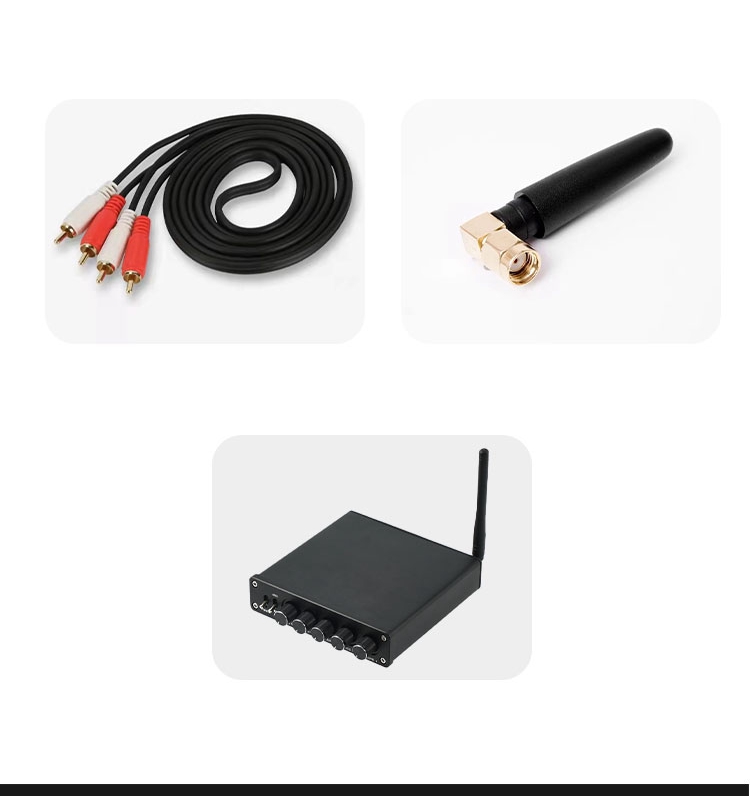

Package Included:
- 1 x D210B Host
- 1 x RCA Cable
- 1 x Bluetooth Antenna
- 1 x User Manual
