Black Mini DVR 5.8G-FPV Video Recorder Module CVBS Signal Input with Metal Shell Support 32GB TF Card

Black Mini DVR 5.8G-FPV Video Recorder Module CVBS Signal Input with Metal Shell Support 32GB TF Card

Features:
- Small size and light weight.
- Low power consumption, operating current 200mA.
- Aluminum alloy casing (CNC processing).
- Support 32GB TF card (10 level recommended).
- Built-in 3.7V/400mAh lithium-ion polymer battery.
- Universal USB charging interface.
- High-precision 4-level battery power indicator.
- Multi-language menu, 11 menu language choices.
- CVBS signal input (built-in video decoder).
- Support playback and AV signal output (built-in video encoder).

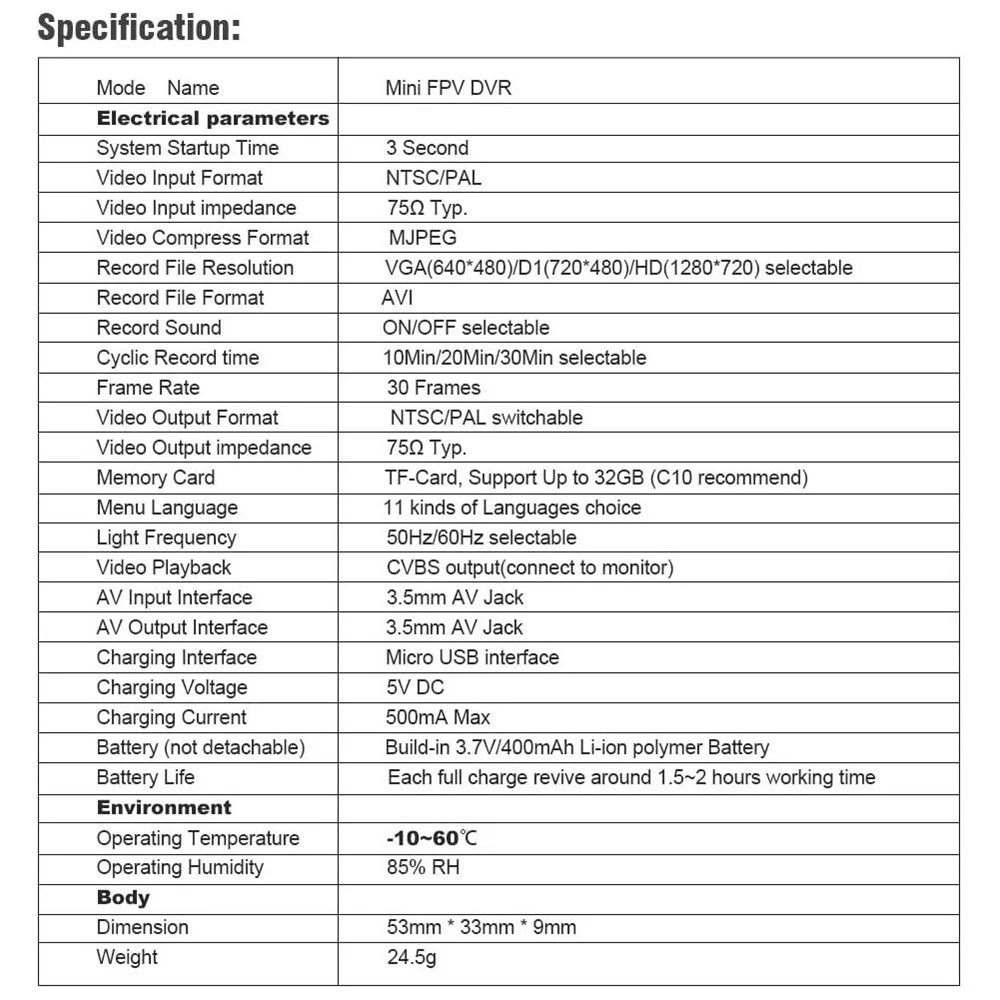

Specification:
- System startup time: 3 seconds
- Video input format: NTSC/PAL
- Video input impedance: 75ohms Typ.
- Video compression format: MJPEG
- Record file resolution: VGA (640 x 480) / D1 (720 x 480) / HD (1280 x 720) selectable
- Record file format: AVI
- Recording sound: ON/OFF selectable
- Cycle recording time: 10min/20min/30min optional
- Frame rate: 30 Frames
- Video output format: NTSC/PAL switchable
- Video output impedance: 75ohms Typ.
- Memory card: TF card, support up to 32GB (C10 recommended)
- Menu language: 11 language choices
- Optical frequency: 50Hz/60Hz can be selected
- Video playback: CVBS output (connected to the monitor)

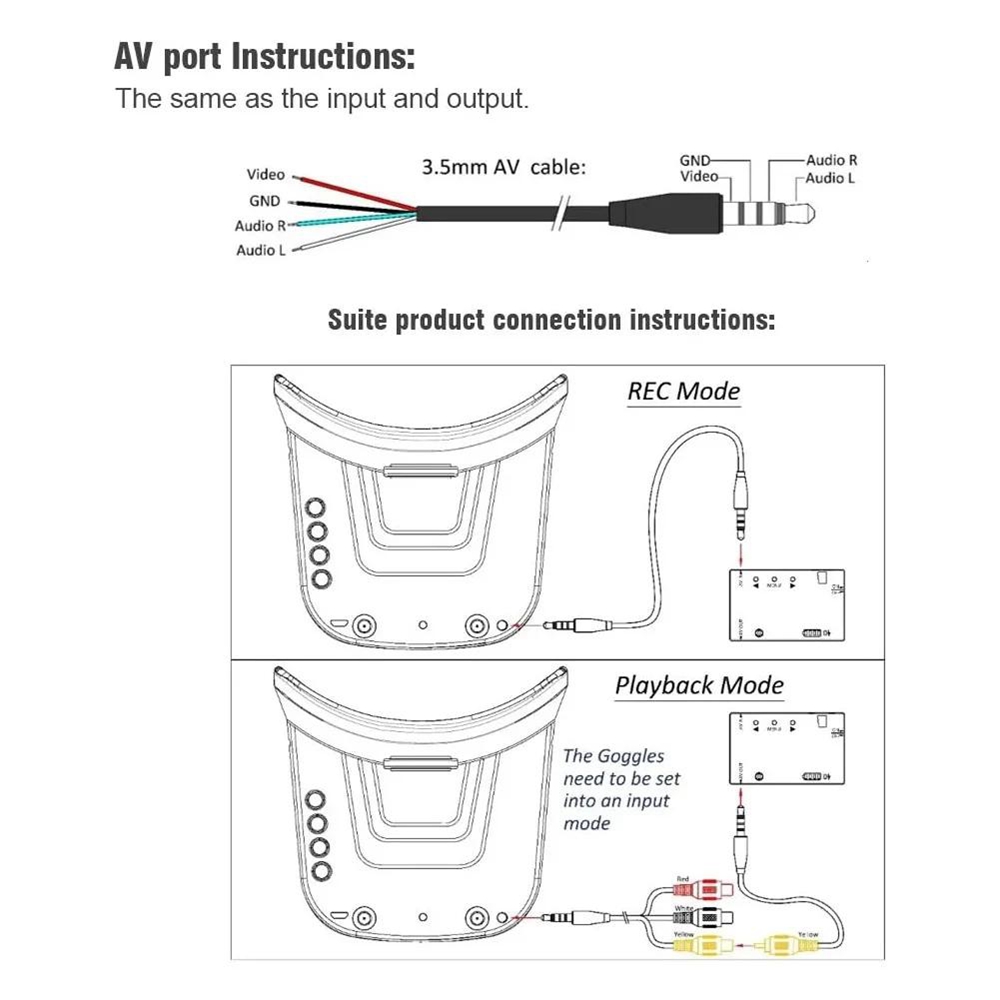

- Audio input interface: 3.5mm AV jack
- Audio output interface: 3.5mm AV jack
- Charging interface: micro USB interface
- Charging voltage: 5V DC
- Charging current: 500mA Max
- Battery (non-removable): built-in 3.7V/400mAh lithium ion polymer battery
- Battery life: each working load is 1.5 to 2 hours of working time.
- Operating temperature: -10 ~ 60°C
- Operating humidity: 85% RH

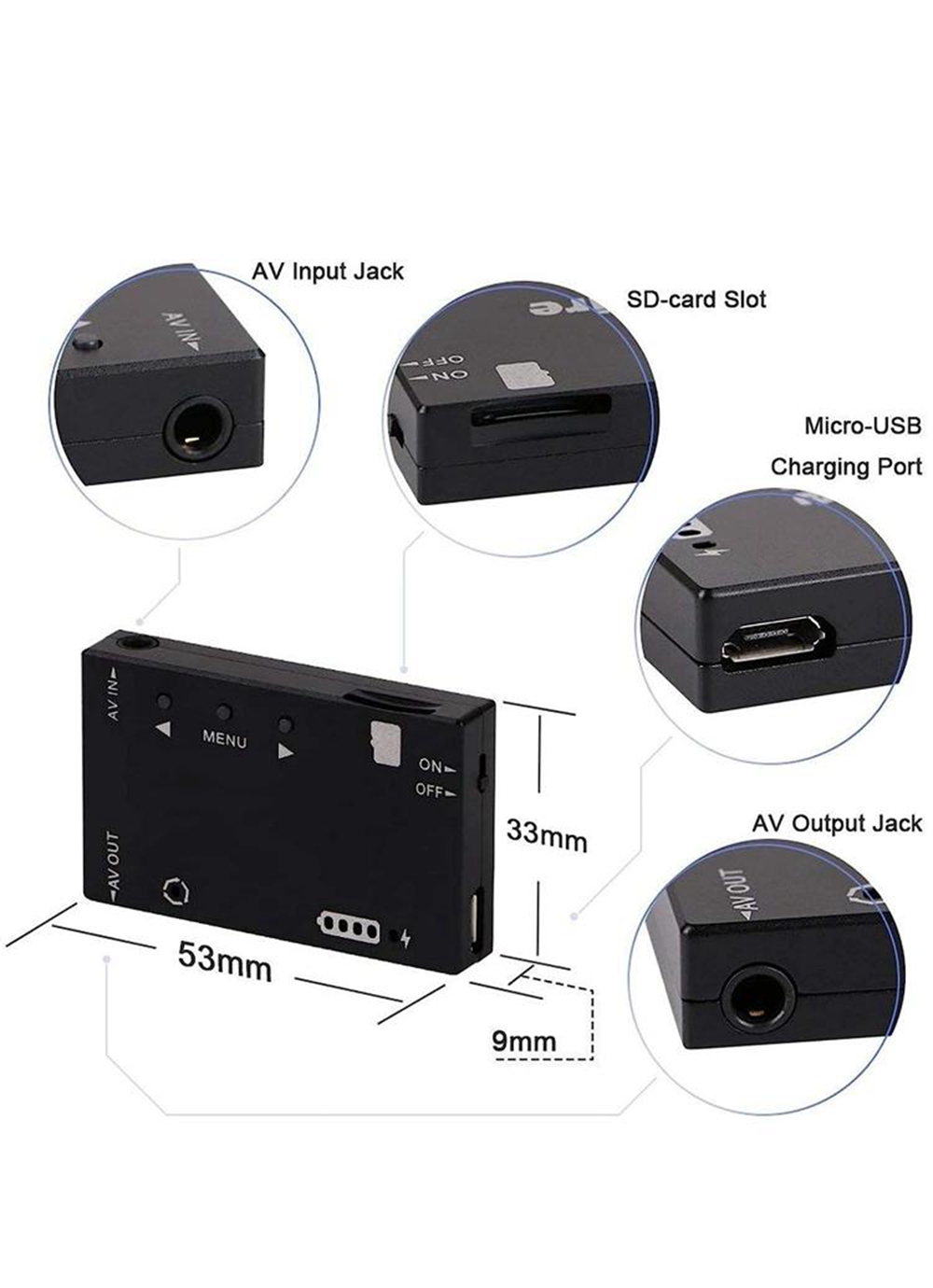

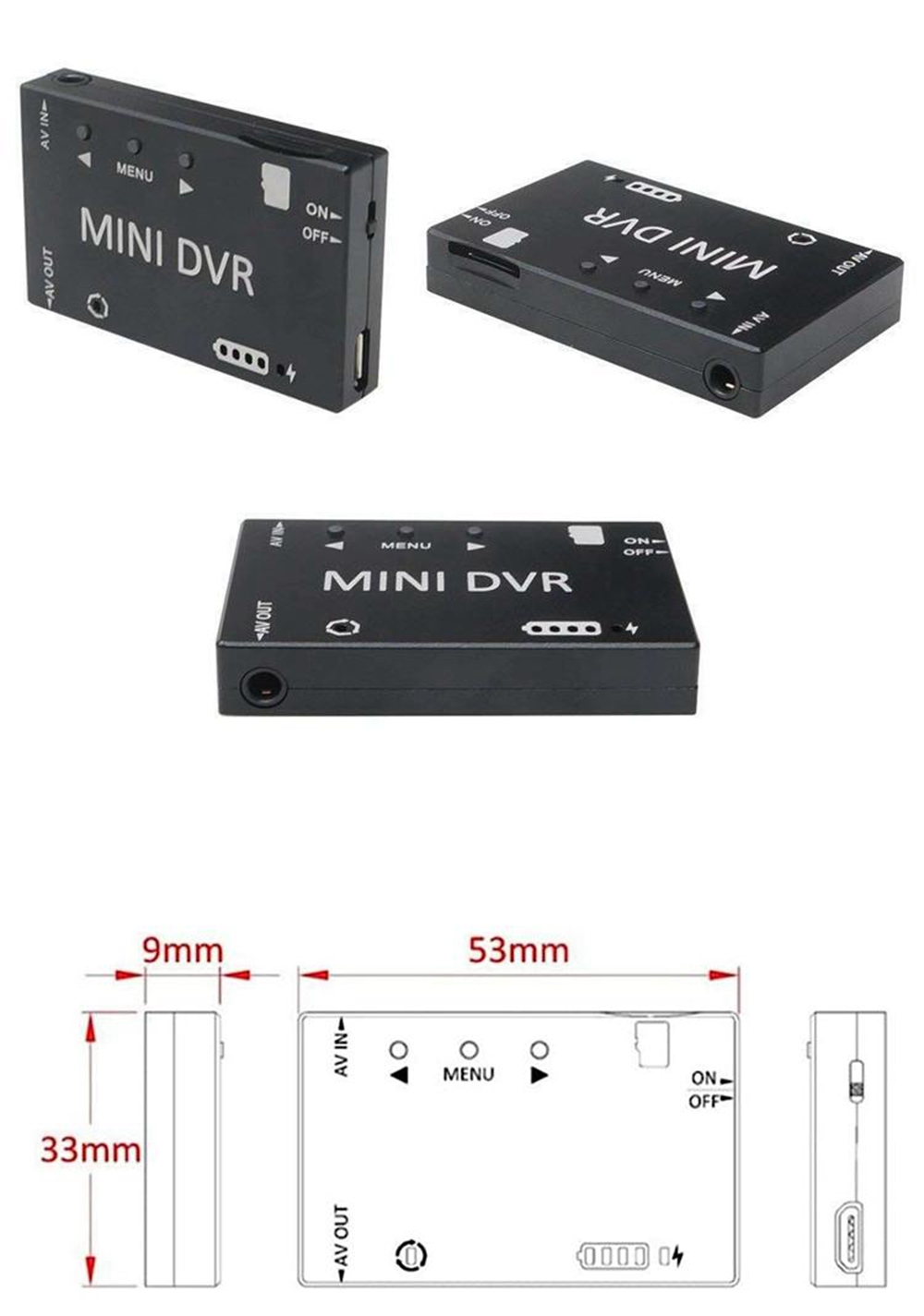

- Dimension: 53mm x 33mm x 9mm
- Weight: 24.5g
- Menu language: English, French, German, Italian, Spanish, Portuguese, Traditional Chinese, Simplified Chinese, Japanese, Russian, Korean.

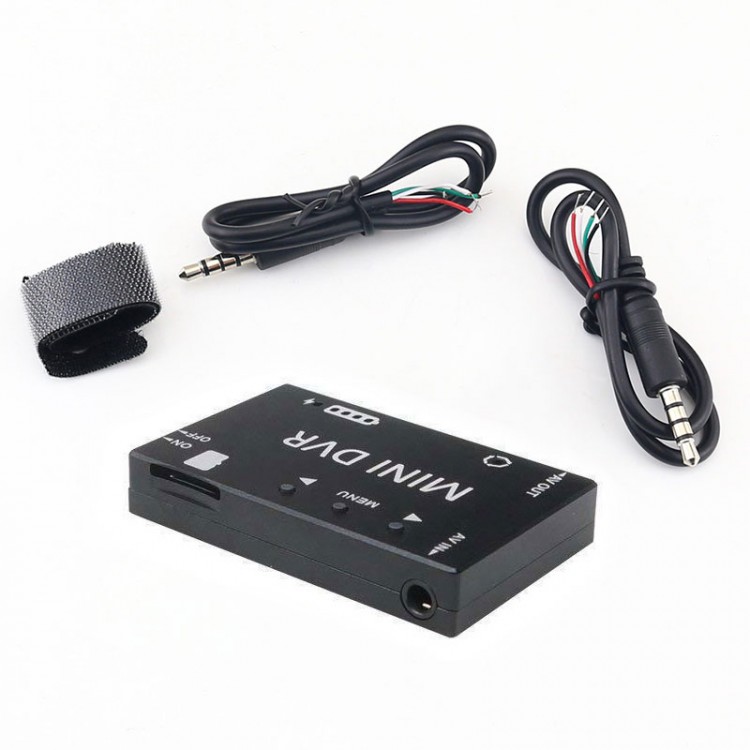

Package Included:
- 1 x FPV Mini DVR
- 2 x AV Cable
- 1 x Magic Strap
