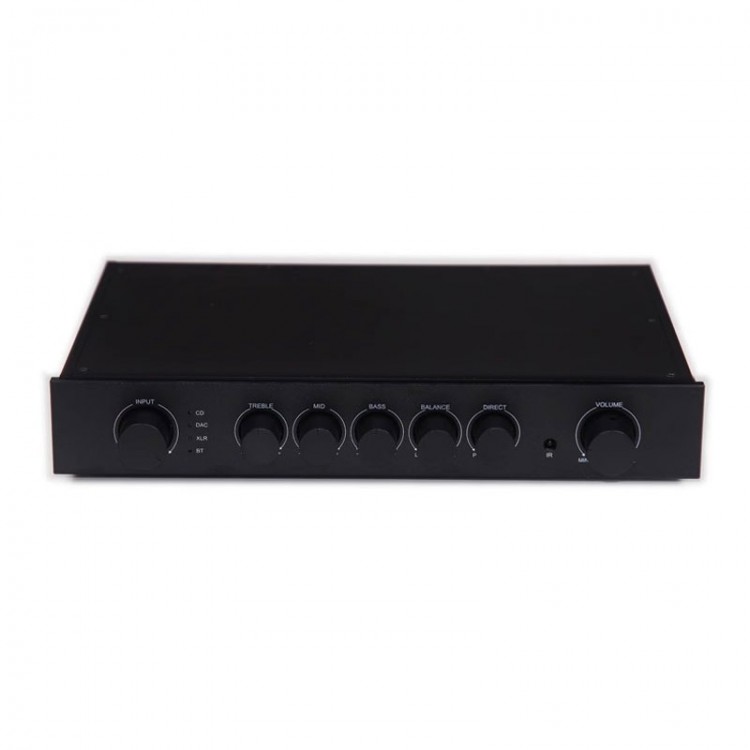

Black Panel Version E200 Preamplifier HiFi Fully Balanced Amplifier with Bluetooth Support Treble/Bass Adjustment

Black Panel Version E200 Preamplifier HiFi Fully Balanced Amplifier with Bluetooth Support Treble/Bass Adjustment

Features:
- Multiple optimizations of mature circuit architecture.
- E200 is a preamplifier with treble, medium, and bass frequency modulation functions, which can achieve fine tuning and correction adjustment of various frequency bands, making it very practical.
- The E200 also has a direct pass function, which can switch to skip tone circuits and achieve only high fidelity amplification.
- The remote control function is within reach, and the front-end design has remote control function: it can achieve remote control volume control, input selection switching and mute function, making the operation within reach.
- The Bluetooth version receiving component uses the current high-level Bluetooth 5.1 version and the Qualcomm QCC5125 chip from the United States, which almost supports all current Bluetooth lossless transmission formats: SBC AAC APTX LDAC high-level, and is equipped with a separate Bluetooth decoding chip PCM5102 to provide strong guarantee for high-quality audio output.
- APTX-LL solving latency issues is crucial for achieving audio and video synchronization in gaming and multimedia applications. Allow you to listen to the consistent sound quality of streaming music from commonly used media services.
- The starting point of excellence is the high point, with the addition of high-end imported audio electrolytic capacitors and for Nichicon HiFi supplements high-frequency low resistance electrolytic capacitors. The coupling capacitors use four 3.3UF for Siemens with pure and transparent sound.
- Excellent signal-to-noise ratio, low-noise precision stabilized power supply, equipped with fully sealed transformers and independent filtering power supply design at all levels, with the addition of high-temperature filtering electrolysis, it has been tested to achieve excellent dynamic response with ripple characteristics at the micro-volt level, providing an important foundation for good sound quality.
- Accurate reproduction of music details, using the classic 6-op amp amplifier circuit and a full range of wafer resistors, optimizing wiring for precise reproduction of music details.
- For ALPS potentiometer imported from Japan has stable consistency between the two channels, making it impossible to compare errors with ordinary instruments. It also has ultra-low sound distortion and high fidelity, making it the preferred choice for high-end audiophiles.
- Using high-end gold-plated interface resistors with low loss, low conductivity, and resistance to oxidation.
- Enjoy the fun of HiFi music with any combination, it is a front-end amplifier that needs to be paired with a back-end to drive the speaker. It can be used with different transistor back-end and electronic tube back-end.

Specification:
- Amplification: 6X
- THD: ≤0.003% (1kHz)
- Frequency response: 10Hz - 30kHz (±0.5dB)
- SNR: ≥110dB
- Input sensitivity: 255mV
- Input impedance: 50Kohms
- Input voltage: 220V (110V is optional)
- Product size: 333 x 245 x 61mm
- Net weight: 2.9kg

Package Included:
- 1 x Preamplifier
- 1 x Power Cable
- 1 x Remote Control
- 1 x User Manual
