| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $347.72 | $340.63 | $329.98 | $315.79 | Contact US |

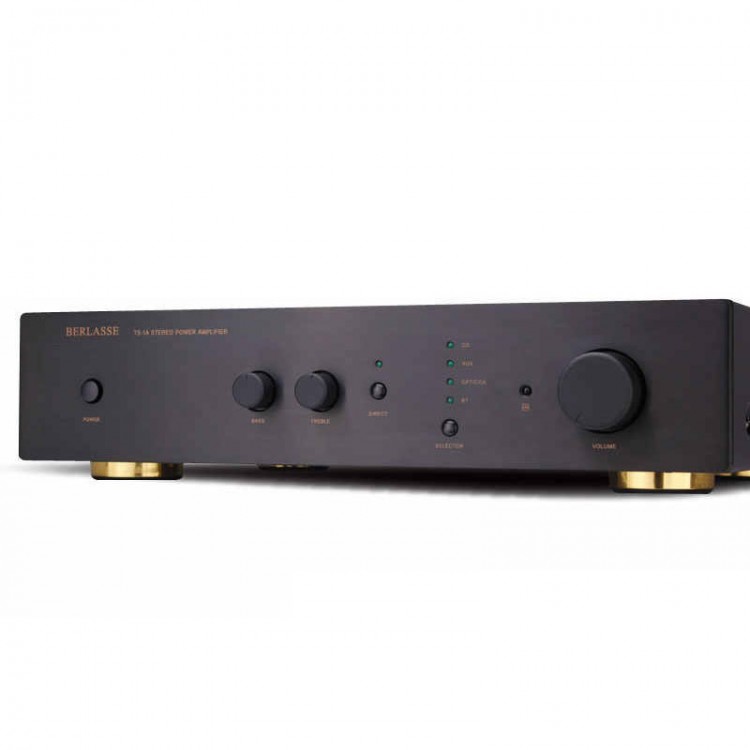

Black TS-1A HiFi2.0 High Power Dual Channel Stereo Audio Speaker Power Amplifier Bluetooth5.0 220V
Features:
- This machine is a practical home music amplifier with HIFI2.0 dual channel stereo design. The panel adopts aluminum alloy fine wire drawing technology, frosted texture knob, black painted iron chassis, simple and beautiful appearance, restrained and steady, practical functions, and simple operation.
- This machine is designed with 2 analog inputs, 1 digital (fiber coaxial) input, and 1 built-in Bluetooth (for Qualcomm QCC3003 5.0 version), with abundant ports and practical convenience.
- To follow the HIFI concept design, the master volume adopts a mechanical sealed motor ALPS potentiometer and manual high and low frequency adjustment. Equipped with a remote control, it can control the master volume level, as well as select two analog RCA channels, one Bluetooth channel, and one digital input channel. Designed with direct and tone switching functions, the direct switch adopts a contact type button that is switched by a relay, which is durable and reliable.
- The TS-1A combined power amplifier is a Class AB amplifier circuit with strong power and good driving force, suitable for general household floor speakers, bookshelf speakers and other fixed resistance 4-8 ohm range speakers.
- Each channel has a rated output power of 100W, and the power amplifier tube uses classic high-power (5200/1943) Toshiba paired tubes from Japan. It is powered by pure copper dual transformers and has abundant power. It adopts a high fidelity AA class preamplifier circuit, with clear and transparent sound, strong driving force, and pure and positive analog flavor tone.
- Built in startup delay function, with overload zero drift and output short circuit protection function, can effectively protect the amplifier system and speaker system.
Specification:
- Model: TS-1A
- Output power: 100W+100W (8Ω); 160W+160W (4Ω)
- Input impedance: 47KΩ
- Input sensitivity: ≥ 400mV
- Output impedance: 4 - 8Ω
- SNR: 95dB
- Frequency response: 40Hz - 20kHz
- Distortion: ≤ 0.5%
- Treble and bass gain:
Treble: ± 10dB/10kHz
Bass: ± 10dB/100Hz
- Power supply voltage: AC220V ± 10% (50Hz - 60Hz)
- Size: 430 x 335 x 100mm
- Net weight: 9.5kg
Package Included:
- 1 x Power Amplifier
