BLAD-B2 Bluetooth 5.0 Receiver Lossless Transmission Optic Fiber Coaxial Output Headphone Amp DAC

Availability: Out Of Stock

  • Price:$50.95
  • Price in reward points: 510 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $49.93 $48.91 $47.38 $45.35 Contact US
Quantity:

BLAD-B2 Bluetooth 5.0 Receiver Lossless Transmission Optic Fiber Coaxial Output Headphone Amp DAC

Features:

- For APTX-LL HD sound quality
- Digital/analog switching
- Compatible with multiple devices
- Optical fiber/coaxial
- CNC and anodizing process, delicate and beautiful corners, no burrs to the touch
- Bluetooth 5.0 enables stable wireless lossless transmission, 10m barrier-free connection
- High-end solution QCC3008 is used. For dual channels, for APT-X, HFP, A2DP, I2S and TWS
- Imported QCC3008 chip and Bluetooth 5.0 version provide high-quality wireless audio performance, support for APTX, APTXLL and other technologies, and reach HiFi standards. Signals are stable, transmission is ultra-low delay, and output through analog/digital.

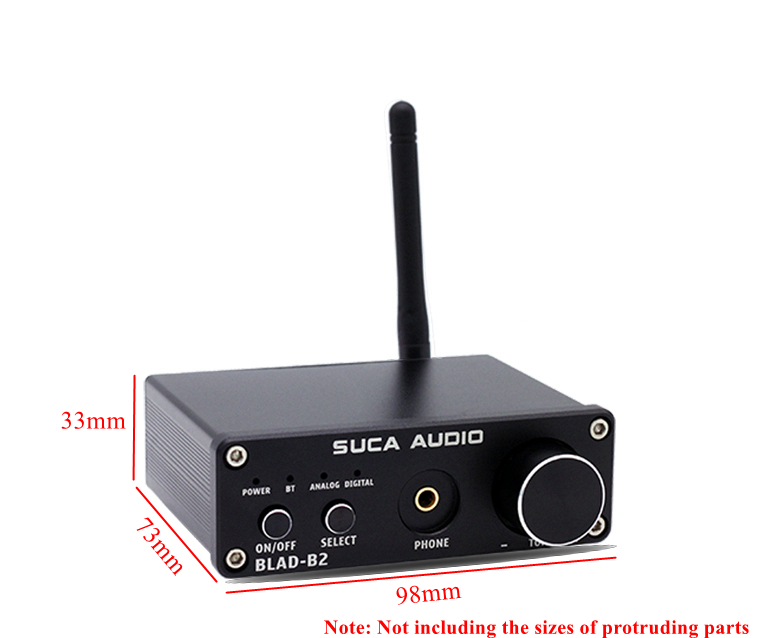

Front Panel:
- POWER: Power supply
- BT: Bluetooth
- ANALOG: Analog
- DIGITAL: Digital indicator
- ON/OFF: Power switch
- SELECT: Function switching
- PHONE: Headphone output
- TONE: Volume knob. Press it to choose Mute

Rear Panel:
- RF: Bluetooth input port
- OPTICAL: Optic fiber output port
- COAXIAL: Coaxial output port
- R & L: RCA analog output port
- DC 5V: Power supply input via micro USB

Specifications:
- Model: BLAD-B2
- Distortion: 0.01%
- Signal to noise ratio: ≥105dB
- Chipset: QCC 3008(CSR) +PCM5102+CS8406+HT97220
- Headphone output power: 130mW/16Ω; 100mW/32Ω; 80mW/64Ω
- Headphone matching impedance: 16-200Ω
- Headphone output interface: gold-plated 3.5mm
- Bluetooth transmission distance: 10 meters barrier-free transmission (related to the power of the transmitting device)
- Bluetooth specification: BT5.0 supports for APT-X, SBC, AAC
- Product power supply: DC5V (interface is Micro USB)
- Frequency response range: 20Hz-20kHz (±3dB)
- Output interface: RCA, optical fiber, coaxial (digital and analog output are both)

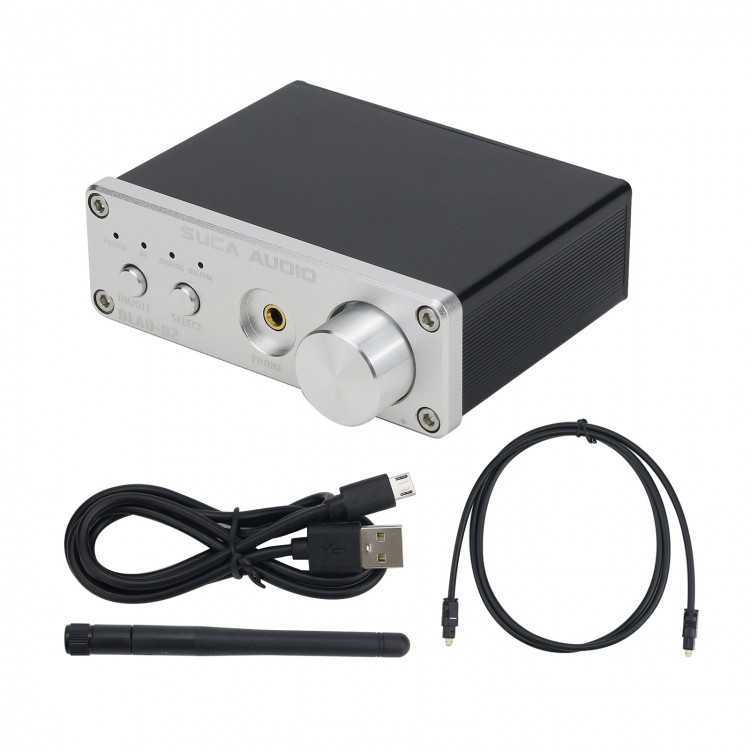

Package Included:
- 1 x Set of Bluetooth Receiver Decoder

Note: Optional Colors: Silver, Black. Please choose the color you want when purchasing. Thank you!
