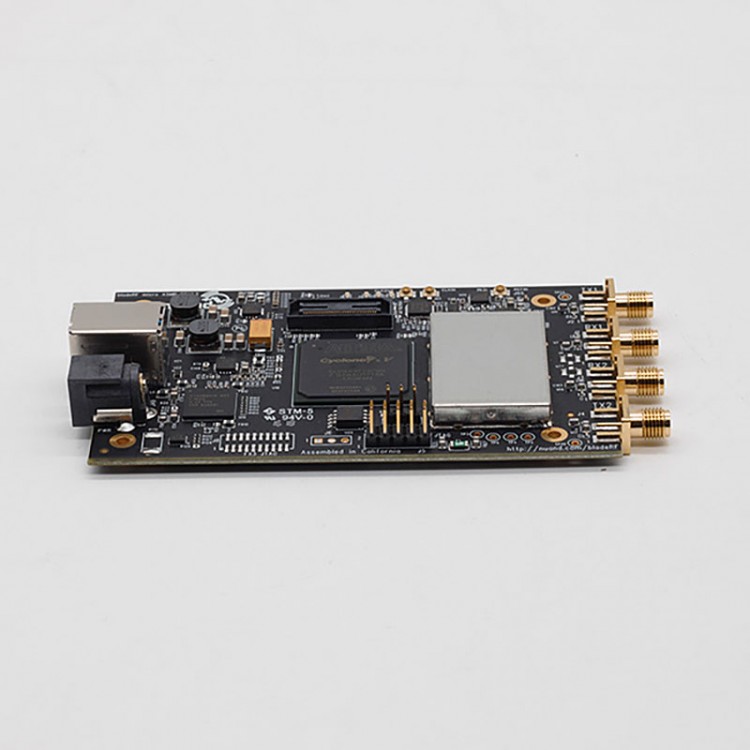

BladeRF 2.0 Micro xA9 SDR Board RF Development Board 47MHz-6GHz USB3.0

BladeRF 2.0 Micro xA9 SDR Board RF Development Board 47MHz-6GHz USB3.0

Description:
The bladeRF 2.0 micro xA9 is the next generation Software Defined Radio (SDR) offering a frequency range of 47MHz to 6GHz, 61.44MHz sampling rate, and 2×2 MIMO streaming. Packed into a small form factor, the bladeRF 2.0 micro was designed for high performance as well as mobile applications. Through libbladeRF the bladeRF 2.0 micro is compatible with GNURadio, GQRX, SDR-Radio, SDR#, gr-fosphor, SoapySDR, and more on Windows, Linux and macOS.

The RF shield cap protects sensitive RF components from Electromagnetic Interference (EMI) and provides additional thermal dissipation, allowing the bladeRF 2.0 micro to operate in challenging environments.

All of the RF SMA ports are capable of providing power over bias-tee circuitry to wideband amplifiers and pre-amps. Power to bias-tee peripherals is fully software controllable, providing maximal operational flexibility. Currently, the official bias-tee peripherals include the BT-100, a wideband power amplifier for TX, and the BT-200, a wideband low noise amplifier for RX.

At the core of the bladeRF 2.0 micro is the latest generation Cyclone V FPGA from Intel (formerly Altera). The xA9 features a 301KLE FPGA of which 294KLE are free and user programmable. The largest-in-class FPGA is ideal for accelerating modems in HDL.

An advanced clocking architecture allows the bladeRF 2.0 micro to receive and provide its 38.4MHz fundamental clock from and to other devices. Additionally, an on-board PLL allows the bladeRF 2.0 micro to tame its VCTCXO to a 10MHz reference signal. The xA9 features a highly accurate and stable oscillator. The on-board DAC sets the frequency trim of the oscillator to a factory calibrated value.

The Power Distribution Network (PDN) of the bladeRF 2.0 micro features an intricate combination of low noise and high efficiency switch mode and linear power regulators. While the bladeRF 2.0 micro can be run solely from USB bus power, an external power source can be supplied to ensure maximal linear performance of bias-tee peripherals. The PDN features an auto selection and hold-over circuitry to optimize power draw between USB bus and external DC power.

The bladeRF 2.0 micro can run in headless without needing to be connected to a PC or SBC. The on-board flash is large enough to hold any size FPGA image for the xA9.

Features:

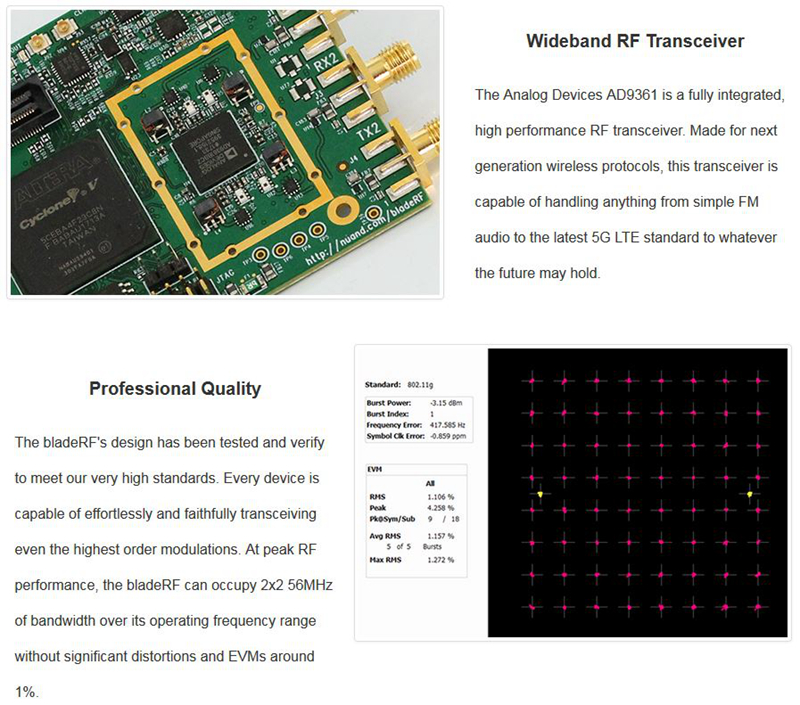

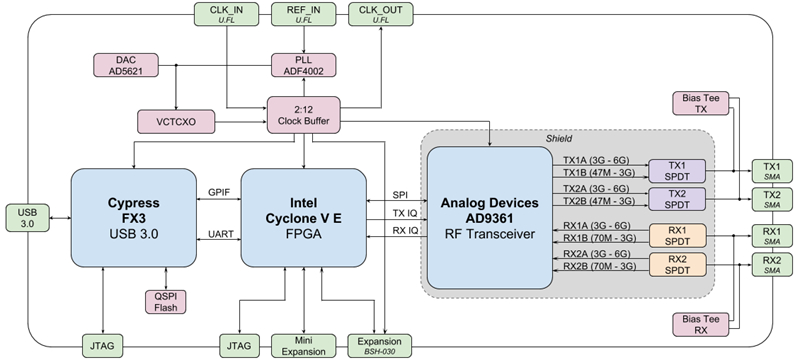

Block Diagram:


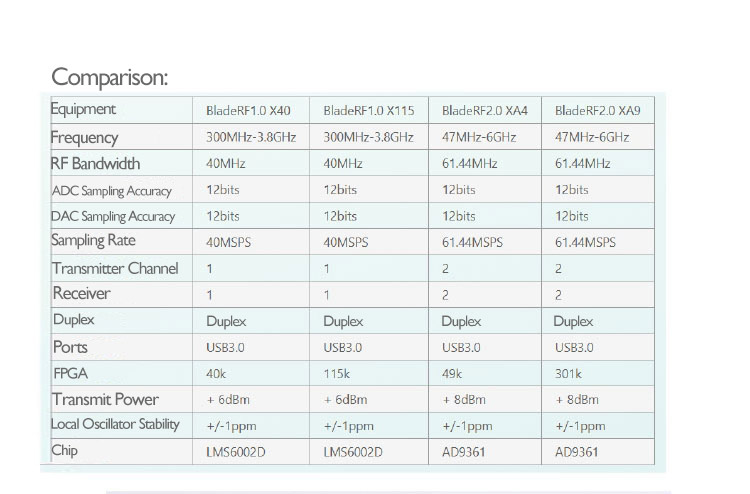

Technical Parameters:
- Frequency Range: 47 MHz to 6 GHz
- USB3.0 Cable: High-speed, low delay and enhanced electricity transmission ability
- Portable Development Board: 12.7 x 6.35 x 2.54cm
- Gold-plated RF SMA female connector
- 2x2 MIMO, 61.44 MHz sampling rate
- 56 MHz filtered bandwidth (IBW)
- Factory calibrated 38.4MHz, ±1ppm high-precision oscillator to control temperature

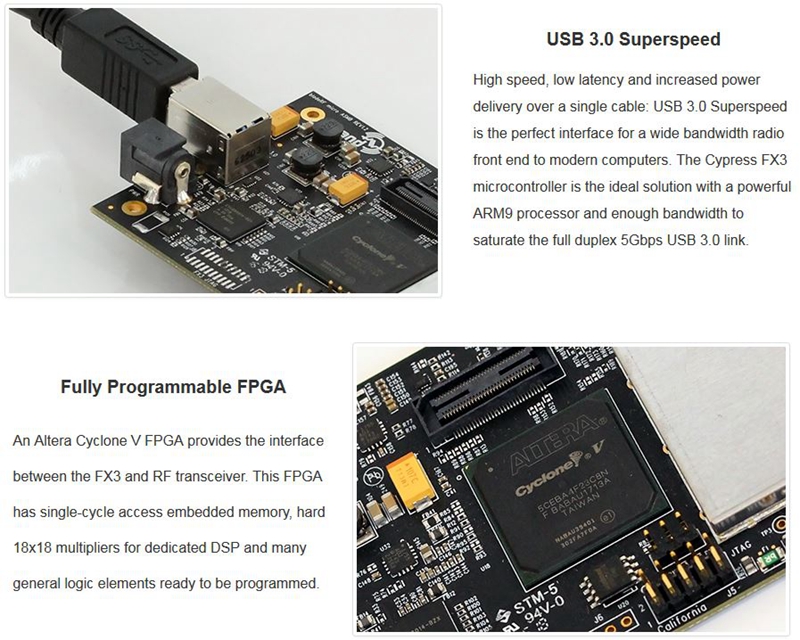

- On-board 200MHz ARM926EJ-S processor (JTAG Port)
- On-board xA9 301KLE Altera Cyclone 5E FPGA (Available JTAG Port)
- Powered by the bus. With USB3.0, it can be powered by 5V DC when connected to an external T-type bias circuit device, with automatic switching function
- High efficiency with low noise power structure
- Support for Software: GNU Radio via gr-osmosdr, Pothos via SoapySDR, SDRange, SDR Console, SDR # via sdrsharp-bladeRF, MathWorks MATLAB & Simulink via libbladeRF bindings.

Package Included:
- 1 x BladeRF 2.0 Micro xA9 SDR Board
- 1 x USB 3.0 SS Cable
