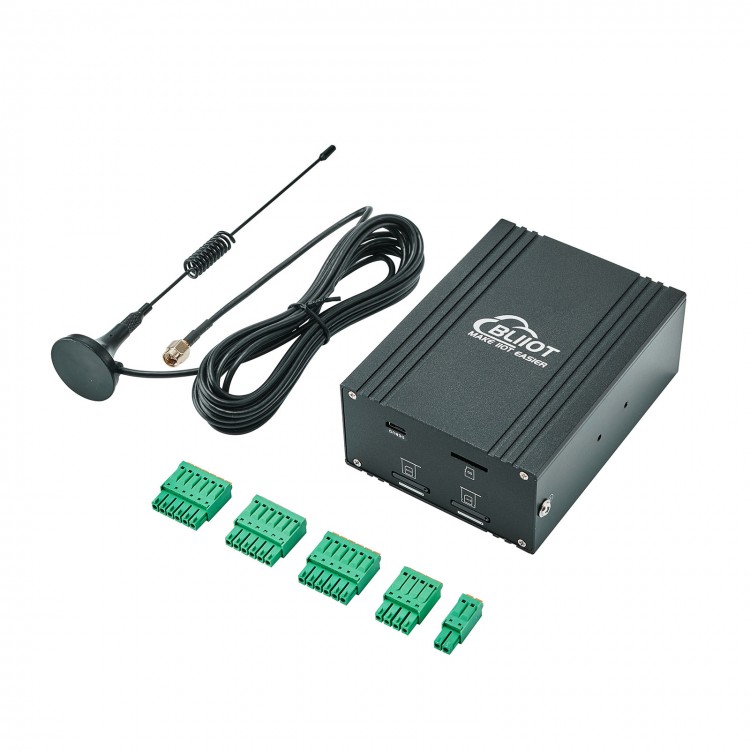

BLIIOT BL304 2G + 8G Embedded Computer Edge Gateway (Upstream Network Interface Transmission) w/ IO
Description:
The BL304 series Embedded Computer for ARM use i.MX8M Mini Quad-core 64-bit processor for NXP, running speed up to 1.8GHz, with advanced 4-core Cortex-A53 architecture (for ARM) and 2GB DDR4 RAM. It supports one general-purpose 400MHz core processor for Cortex-M4 and 8G eMMC. BL304 comes with 4 RS485 or RS232, 1 CAN port, 2 Ethernet ports, 2 DI, 2 PWM output and 2 USB port, 1 power input/output port, 1 HDMI-compatible, 1 Mini PCIe expansion slot for a wireless module.
The industrial computer supports for LINUX, Ubuntu, Debian, Node-Red, QT, Python, C++, MySQL, InfluxDB, SQLite, Docker, Ignition and Eclipse. The tiny embedded computer is widely applicable to a variety of industrial solutions.
Features:
- 2G + 8G 4-core 1.8GHz and 0°C~70°C working environment
- i.MX8M Mini processor for NXP and Cortex-A53 architecture for ARM
- Comes with Ethernet ports, RS485 or RS232 serial ports
- 1 Mini PCIe expansion slot for 4G/WiFi module (4G and Wifi are optional)
- Supports for LINUX, Ubuntu, Debian, Node-Red, QT, Python, C++, MySQL, InfluxDB, SQLite, Docker, Ignition and Eclipse
- Automatic frequency reduction or restart when the chip is overheated
- Chip frequency can be adjusted manually
- Multiple sleep modes, with timing wake-up function
- IP30 protection; metal shell and system are safely isolated; DIN rail installation
- 110 x 43 x 83mm/4.3 x 1.7 x 3.3" (LxWxH) tiny embedded computer
Application Scenarios:
- BL304 series Embedded Computer are widely applicable to IoT, Industrial IoT, digital factories, industrial automation, energy monitoring, smart security, rail transit, telecommunications, smart EV charging, human-computer interaction and other fields.
Package Included:
- 1 x Set of Embedded Computer
Note:
- 4G and Wifi are optional. You can choose the versions with these two functions.
- SD card, SIM card and power supply are not included in the package.
Packaging Details:
- G.W.: 0.5kg
