BLIKVM V3 HAT Black PiKVM KVM over IP Raspberry Pi 4B PoE HDMI CSI for Server Operation Maintenance

BLIKVM V3 HAT Black PiKVM KVM over IP Raspberry Pi 4B PoE HDMI CSI for Server Operation Maintenance

User Manual:
https://wiki.blicube.com/blikvm/en/

Features:
* Video acquisition (HDMI, support 1080P at 50Hz input)
* Keyboard forwarding
* Mouse forwarding
* Mass storage drive
* ATX control the server power using ATX functions
* Full-screen mode
* Access via Web UI
* Support multi-language switching
* Support PoE
* Serial console port
* OLED display
* Real time clock (RTC)
* PWM fan

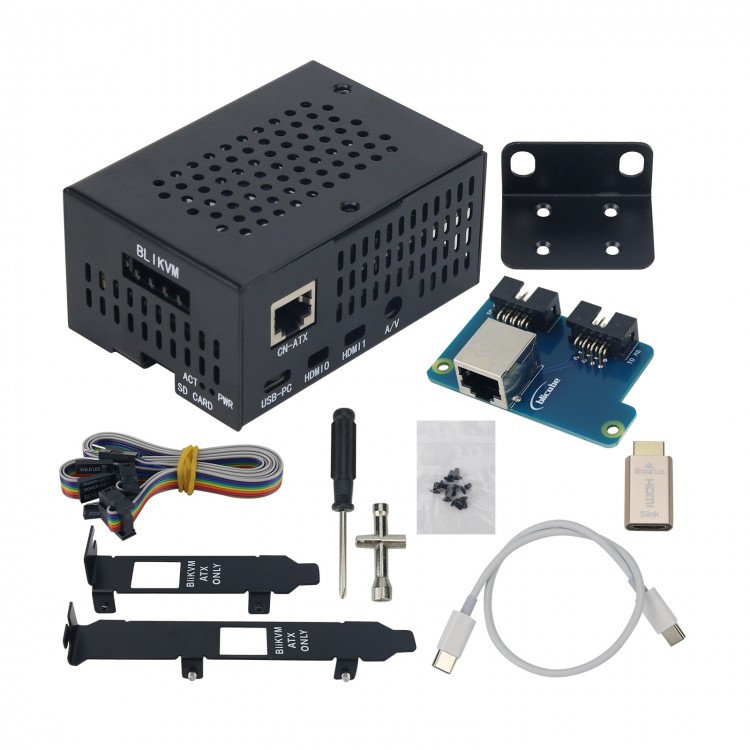

Package Included:
* 1 x Raspberry Pi IPKVM HAT
* 1 x ATX Adapter Board
* 1 x USB/PWR Splitter
* 1 x HDMI Pass-through EDID Emulator
* 1 x Metal Case
* 1 x 32G TF Card
* 1 x USB Type-C to USB Type-C Cable 30cm/11.8"
* 1 x Dupont Cable 8pin Female to Female 40cm/15.7"
* 1 x Dupont Cable 8pin Female to Male 40cm/15.7"
* 1 x Philips Screwdriver
* 1 x Cross Wrench Sleeve

Note:
* Battery is not included.

Packaging Details:
* G.W.: 0.5kg

Interface Definition:
HDMI IN:
The bridge chip is TC358743 for Toshiba, which supports both video and audio (I2S), and the highest input resolution is 1080p at 50fps. Fixed HDMI back power issue.

CN-ATX:
The CN-ATX interface is connected to the ATX adapter board (an accessory for the HAT) through a network cable, which can turn on, off, and restart the controlled computer.

Display:
A white OLED display with a resolution of 128x32, and the chip is SSD1306. This display can show the temperature, IP address and other information of Raspberry Pi.

POE:
* Standard: IEEE 802.3af PoE
* Input voltage: 37-57V DC
* Output power: 5V DC/2.4A
* Plug in the PoE jumper cap to enable PoE power supply

Fan:
The IPKVM HAT is fitted with a small fan that is controlled by your Raspberry Pi via GPIO12.

Real Time Clock (RTC):
The clock chip is PCF8563 that is controlled by your Raspberry Pi via I2C. A coin cell battery (not included) can be installed under the HDMI IN module.
