BliKVM V4 Kit 2 Allwinner KVM Over IP PoE HDMI-compatible Video Loop for Remote Servo Operation IPKVM

BliKVM V4 Kit 2 Allwinner KVM Over IP PoE HDMI-compatible Video Loop for Remote Servo Operation IPKVM

Difference:
- Kit 1 Packaging List: 1 x BliKVM V4 + 12V 2A Power Adapter + 2-meter Network Cable + 1.5-meter HDMI-compatible Cable + 1-meter USB-C to USB-A Data Cable
- Kit 2 Packaging List: 1 x BliKVM V4 + 12V 2A Power Adapter + 2 x 2-meter Network Cable + 2 x 1.5-meter HDMI-compatible Cable + 1-meter USB-C to USB-A Data Cable

Description:
- BliKVM v4 is a production-ready, plug and play KVM-over-IP device that offers professional users a convenient solution for remote server or workstation management. It is based on Linux and fully open source. With BliKVM, you can easily power on/off, restart your computer, configure UEFI/BIOS settings, and perform OS reinstallation using an emulated Mass Storage Device. BliKVM simulates a keyboard, mouse, and monitor, all accessible through a web browser, ensuring a seamless user experience. Its hardware-level access guarantees independence from specific remote ports, protocols, or services, making it a highly flexible and reliable remote management solution for professionals.

Features:
- Video capturing (HDMI-compatible, support 4K at 30Hz input)
- Keyboard forwarding
- Mouse forwarding
- HDMI-compatible video loop through
- ATX Control the server power using ATX functions
- Fullscreen mode
- Access via Web UI
- Support multi language switching
- Support PoE & DC
- Support WiFi
- Serial console port
- 1.33 inch color display
- Real Time Clock (RTC)

In addition to the v4 kit, you will need the following equipment:
- Power adapter (5V 3A, USB-C port, or 12V 2A DC port). If you plan to use PoE (Power over Ethernet) or if the USB ports on your controlled computers provide sufficient power, a separate power adapter is not required.
- HDMI-compatible cables (at least one). If you also need to use the HDMI-compatible loop-out interface, you will need two cables.
- Ethernet cable(s) (provide based on your requirements). One cable is required for using the ATX power switch function, and one cable is required for using the Ethernet connection.
- USB-C to USB-A cable (for mouse and keyboard data transmission).

Before upgrading, execute the following command, otherwise, after running apt-get update and apt-get upgrade, the image will fail to start:
* apt-mark hold linux-dtb-edge-sunxi64 linux-image-edge-sunxi64

Specification:
Power:
- 5V 3A: 5V port, USB-PC port
- 12V 2A: 12V port
- PoE: power over Ethernet (IEEE802.3af compliant) 48V DC

Connectivity/Interface:
- HDMI-compatible IN: HDMI-compatible video input port
- HDMI-compatible OUT: HDMI-compatible video loop through port
- USB-PC: keyboard, mouse, mass storage, and other external device emulation)
- ATX: Turn on/off or restart the controlled computer
- WiFi & Bluetooth: IEEE802.11 b/g/n + BLE4.2
- Micro SD card slot: persistent storage for OS and your data
- 5V port: 5V 3A power or serial console management port

Displays and Indicators:
- LED indicators: power LED, ACT LED, HDMI-compatible input status LED (green), HDMI-compatible output status LED (yellow)
- LCD display: LCD 240 x 240  1.33-inch
- User defined button: SW1
- Buzzer: find me

Video:
- Supported resolutions: up to 4K at 30Hz
- Video compression methods: MJPEG

Core:
- Chip: ALLWINNER H313
- RAM: 1GB

Others:
- Power consumption: up to 15W
- Operating temperature: 0 to 70℃
- Storage temperature: -20 to 60℃
- Size: L x W x H = 100 x 134 x 44.4mm
- Net weight: 0.45kg

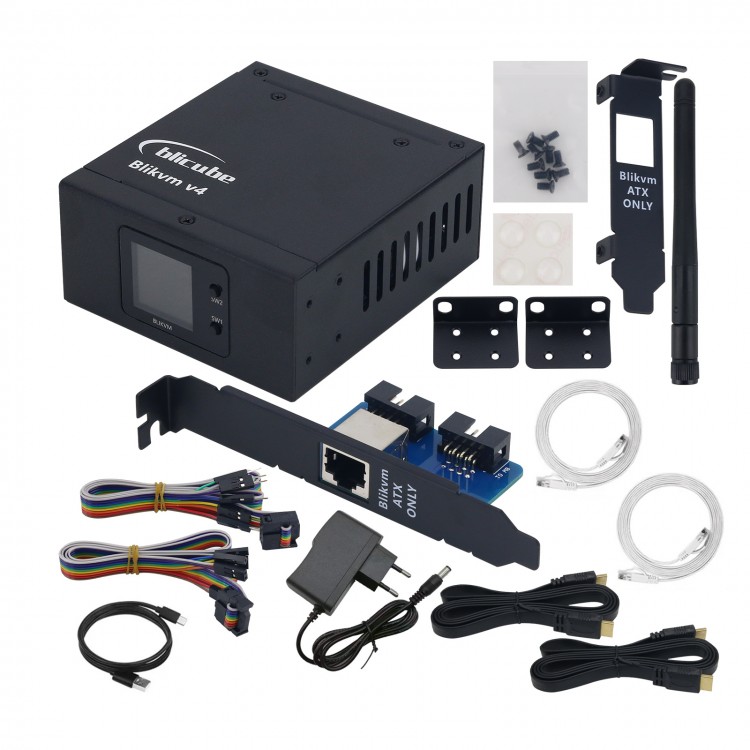

Package Included:
- 1 x BliKVM V4
- 1 x ATX Adapter Board
- 1 x ATX for DuPont Cables 8Pin Male to Male 60cm
- 1 x ATX for DuPont Cables 8Pin Male to Female 60cm
- 2 x 1U Rack Mounting Ears
- 8 x M2.5x5 Screws
- 1 x Silicone Bumpers
- 1 x 12V 2A Power Adapter
- 2 x 2-meter Network Cable
- 2 x 1.5-meter HDMI-compatible Cable
- 1 x 1-meter USB-C to USB-A Data Cable
