Blue Laser Diode Module Engraving Wood Metal 450nm 445nm 12W 12000mw High Power
Description:
- One of the most powerful diodes available, upgrade your Wood engraver to a Metal Marking Machine.
- It can mark metal and stone, cut wood, foam and other materials easily.
- Focal length: can not be adjusted
- Body dimensions: length 50mm * wide 50mm * height 100mm (including fan)
- Wavelength: 445-450 (Blu-ray)
- Output Power: Palse 12W average 6.5W
- Modulation frequency: ttl can be modulated
0v- Off
5v open
Pwm frequency <9Khz
- Operating Voltage: DC = 12V
- Working Current: <3A
- Focal length: 18mm
- Operating temperature: 15℃ ~ 45℃
- Material: hard aluminum + brass
- Finish: Black anodized + sandblasting

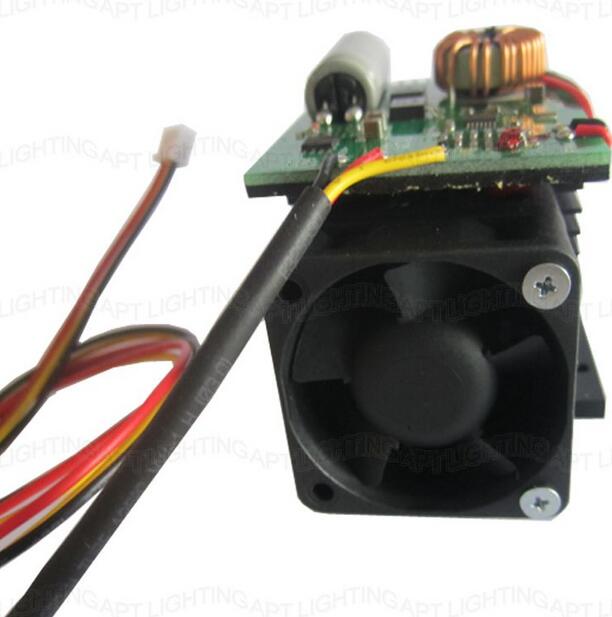

- Heat dissipation: Fan
- Carving materials: stainless steel, iron, aluminum, ceramics, stone, wood, bamboo, leather, plastics, etc.

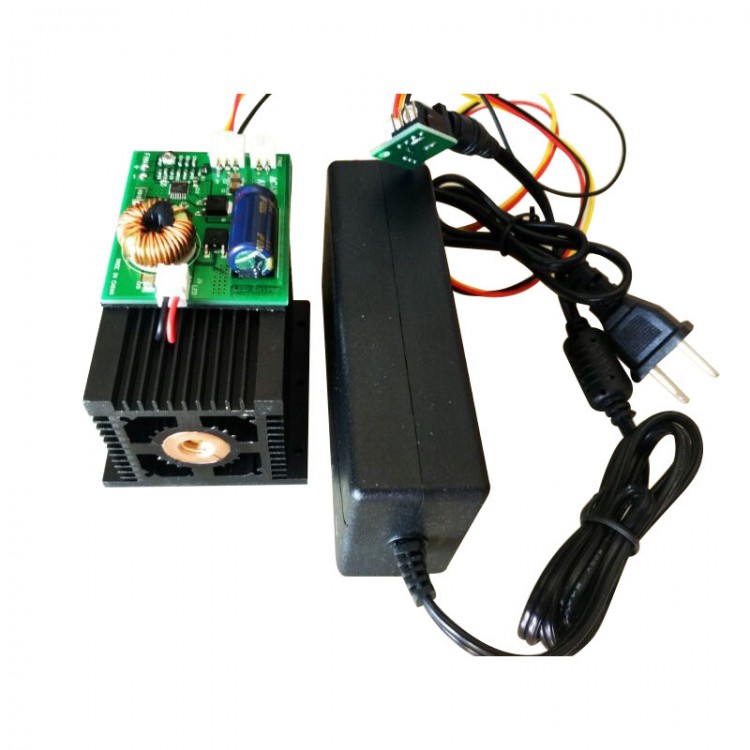

Package included:

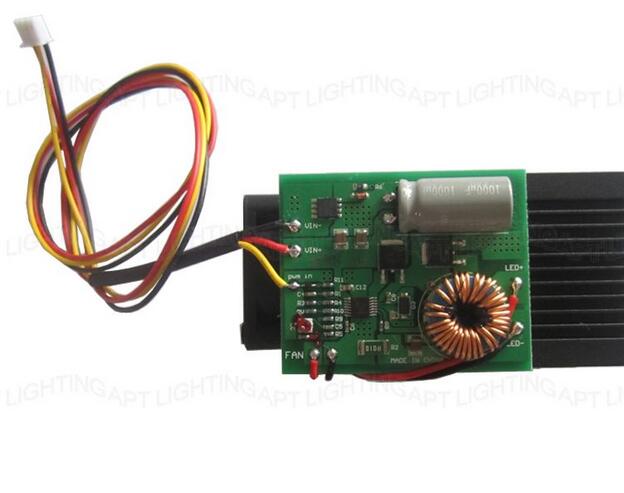

- 1 X 450nm 12000mW laser module with TTL Driver board

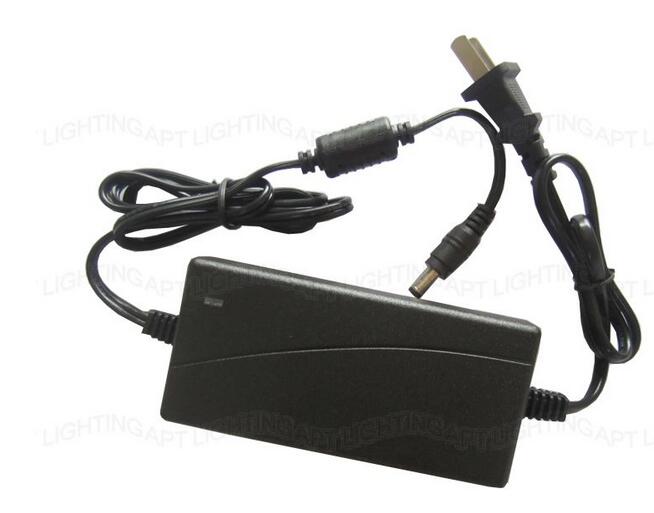

- 1 X Power supply

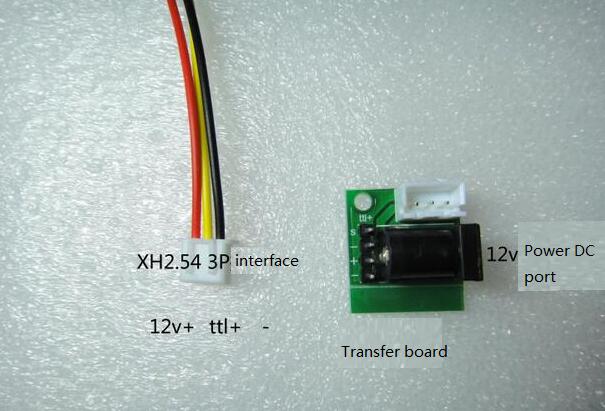

- 1 X Converter board
