Bluetooth 4.2 DTS Decoder MP4 MP5 MP3 Audio Decoding Board APE MTV HD Video Player Support SD TF USB

Bluetooth 4.2 DTS Decoder MP4 MP5 MP3 Audio Decoding Board APE MTV HD Video Player Support SD TF USB

Functions:
-Support SD or TF card, USB read 128G
-Support FM radio function 87~108M
-Support Bluetooth receiving function: Bluetooth version 4.2
-Support video playback formats: RM/RMVB MKV AVI MPG FLV WMV MP4/M4V MOV VOB PMP (RM, RMVB, DVD, SVCD, VCD, DVCD, DVIX, FLV, MKV, AVI and other standard formats)
-Support audio playback format: MP3 WMA OGG FLAC APE AAC AC3 ATRA DTS
-Support picture browsing format: JPEG BMP GIF PNG
-Support e-book browsing format: TXT LRC .C

Features:
-5V DC power supply, support U disk, SD card, USB hard disk interface.
-Support multiple encoding formats MPEG-1, MPEG-2, MPEG-4, H264 XVID video decoding up to -1280*720. Built-in 2-channel output.
-Support Bluetooth receiving function: Bluetooth version 4.2.
-Dynamic setting function, smooth playback of digital albums.
-Main control built-in package 16*16 DDR memory.
-Computer drop-down menu settings, more convenient and comfortable operation.
-Super compatible with RM, RMVB, DVD, SVCD, VCD, DVCD, DVIX, FLV, MKV, AVI, MP3 and other standard formats, smoothly interpret MP3, WMA, OGG, FLAC, ACC, APE.
-Support e-book function, easily browse TXT text.
-Multi-language support (default Chinese, English, other languages can be added as needed).
-Video output support: CVBS.
-Audio output support: stereo (R/L).
-VFD/LCD/LED can be configured to display various functions (need to develop and develop interface).
-Built-in FAT32 format large-capacity hard disk, you can easily store your favorite movies, music, pictures in the multi-partition hard disk.
-Convenient and quick infrared remote control operation.
-Support HD video resolution (1280*720).
-The resolution that supports RM/RMVB format is (1280*720).
-Support picture formats: JPEG, BMP, Kodak PICTURE, CDG.
-Play video formats: RM, RMVB, DVD, SVCD, VCD, DVCD, DVIX, MPEG4, AVI, VOB, etc.
-Play audio formats: MP3, WMA, HDCD; OGG, FLAC, ACC, APE.
-FM radio 87.0---108.0MHZ.
-With AUX input, software intelligent upgrade.

Application:
-It can be used as a digital photo frame, PMP, advertising player that supports HDCD, CDG, MPEG4 AVI VOB DIVX5.1 format.
-Made into TV BOX products, matched with existing TV sets, so that you can watch movies, listen to music, and browse digital photos on the TV.
-Support board services for speakers, HD TV, LCD monitors, set-top boxes, HDMI, projector manufacturers' embedded applications, etc.

Output Interface:
-Power supply interface: 5V 1A
-Video output interface: CVBS (composite video output)
-Audio output interface: left and right channel analog signal output
-Audio input interface: AUX (left and right channel analog signal input)
-Support I/O: Support I/O expansion function
-Support the USB hard disk to be inserted directly for playback, when the USB hard disk power supply current is sufficient

Music Mode:
When the SD card or USB has music, you can enter the music play mode by moving the icon.
Music playback interface, support after plug priority-plug until to play.
1. Loop-press the remote control menu button to call out-move left and right to the play button to switch
a. Repeat all
b. Sequence play
c. Random loop
d. Repeat one
e. Play a song

2. EQ
a. Classic
b. Jazz
c. Popular
d. Normal
e. Rock

C. Exit the music and press return

Movie Mode:
Press back during playback to select the video in the list.
Video playback interface-press settings to bring up the menu.
1. Channel selection: left channel, right channel, stereo
2. Time selection: set time
3. Play mode: sequence play, random play, single play, all loop
4. Screen selection: full screen, original, stretched, widened, automatic
5. Video output: TV-OUT, LCD (only valid when direct drive LCD screen is displayed)
 Long press the up and down song to fast forward and rewind, release to stop fast forward and rewind

Photo Mode:
Automatically read the pictures in the memory card or U disk, press the play button to play in turn.
Press the menu button to bring up the setting menu.
1. Zoom in: zoom in the picture (press the PLAY/PAUSE button)
2. Rotation: rotate 90 degrees clockwise
3. Brightness: 1-9
4. Special effects: default, fade in and fade out, horizontal blinds, vertical blinds, drag up, drag down, drag left, drag right, expand up, expand down, expand left, expand right, shrink , Zoom, mosaic, random. (Note: remote control is effective)
5. Speed: slow, medium, fast, custom (0-59)
6. Proportion
①: Automatic
②: Original
③: Cutting
④: Stretch

C: Exit the album and press the return key

FM (Radio) Mode:
a: Press the play/pause button to enter the FM main interface
b: Short press the play/pause button to search for radio stations automatically
c: There are three types of radio search channels. Called by the menu key
1. Automatic search
2. Channel selection
3. Manual search

D: Press back to exit the radio

Bluetooth Mode:
Enter Bluetooth mode, turn on the phone's Bluetooth, search for Bluetooth, click and pair with the phone to receive phone audio

AUX IN status
a: AUX mode realizes the transfer of external audio signal to internal output.

System Setting:
1. Language: Chinese, English
2. Product information: display memory card or USB capacity
3. Restore factory settings: yes/no
4. Output: NTSC, PAL
5. Volume: current volume

Package List:

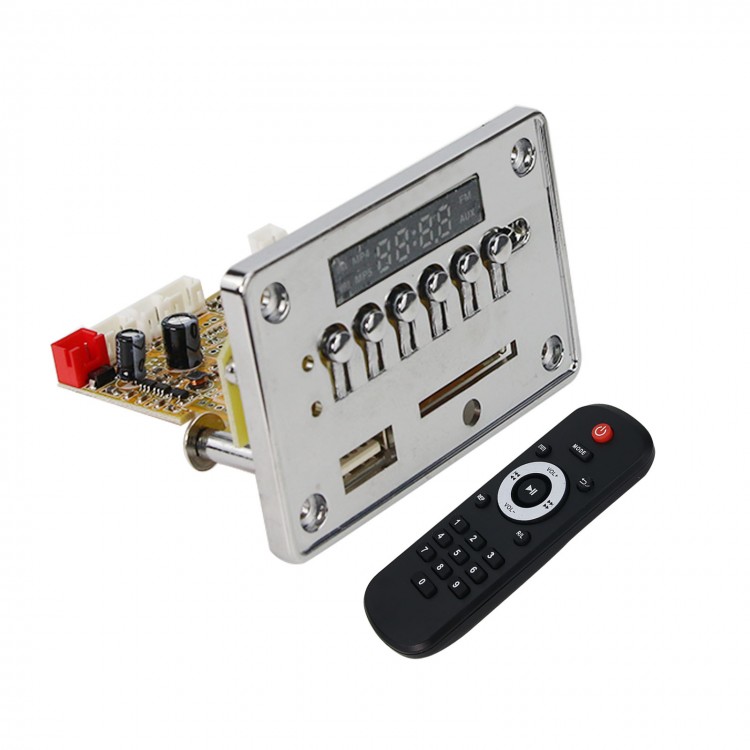

1 x Audio Decoder Board
1 x Remote Control
