Bluetooth 5.0 Amplifier Board TPA3116D2 Stereo High Power Amplifier Board HIFI 2.0 Amp Board 2x50W
Features:

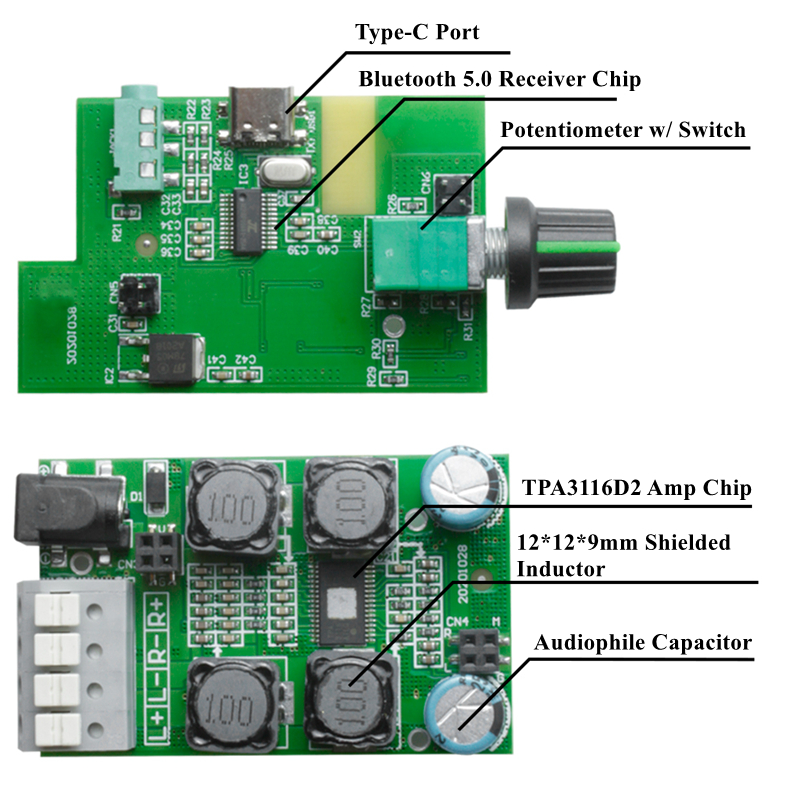

- Power amplifier chip: The TPA3116D2 power amplifier chip is a class D power amplifier IC with very high index parameters. The modulation frequency can reach up to 1.2MHZ, and the high-power output distortion is less than 0.1%
- Bluetooth chip: Bluetooth 5.0, higher transmission efficiency, longer transmission distance. Bluetooth name: Mini Damp

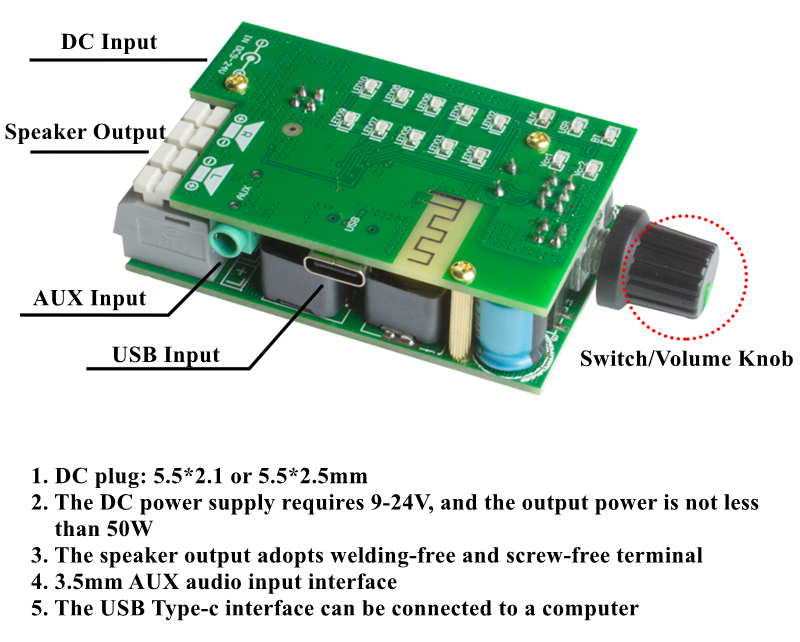

- Audio source input mode: USB, AUX and Bluetooth audio source input modes, automatic switching
- Volume adjustment: potentiometer to adjust the volume, with switch. Easy to control the volume, very suitable for DIY speakers
- Output inductance: 12*12*9mm high-power inductors are used, and the sound is round and clear
- DC connector: copper DC connector, withstands high current, does not generate heat, does not damage the wire, is easy to connect, and is not easy to short-circuit. Compatible with the input power interface of this product, even if you don't have a DC head adapter, you can easily connect
Package Included:
- 1 x Set of Bluetooth Amplifier Module
