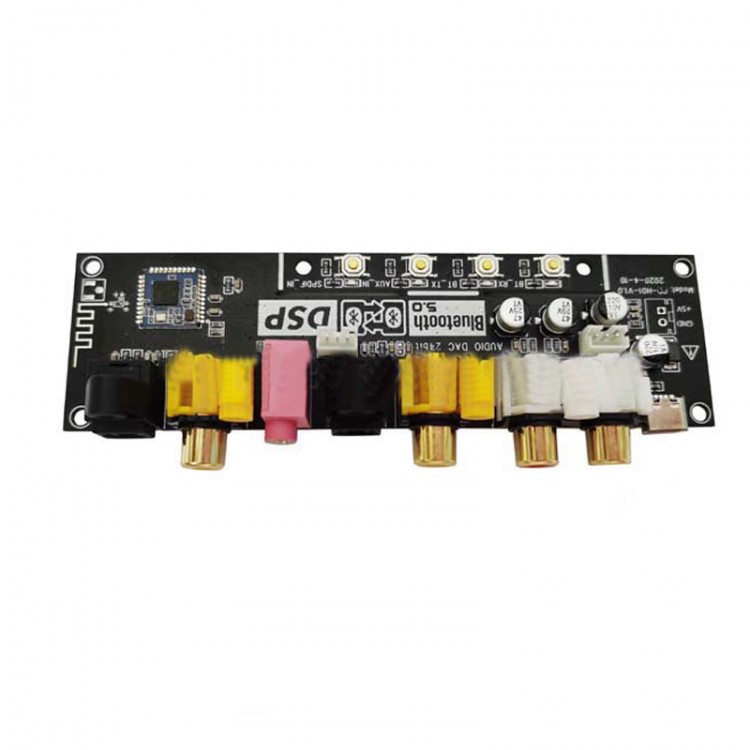

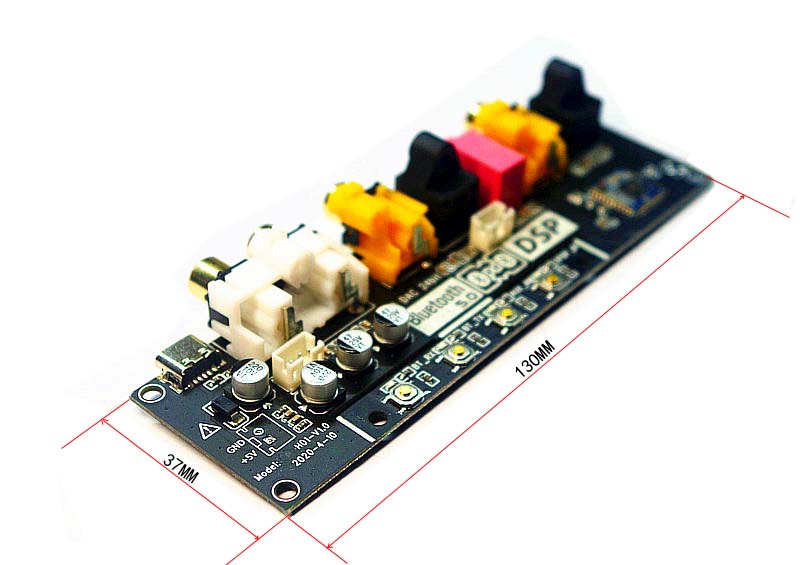

Bluetooth 5.0 Audio Board DAC ADC 24-bit Transmitter Receiver Converter Board DSP Fiber Output
Specification:
Power supply: type-C or 5V input
Bluetooth restore distortion: 0.15%
Total harmonic distortion + signal to noise ratio: 95db
Audio DAC and ADC: 24 bit
Chip module: with 24bit-192K digital audio resolution capability
CPU: 240MHZ RISC-32 CPU processing core
DSP: 400MHZ CEVA digital signal processing core
Bluetooth version: 5.0 compatible with V4.2/V4.2LE/V2.1+EDR
Bluetooth protocol: support Bluetooth 5.0 and A2DP, AVRCP, HFP, SPP, BR HID HOST, BR HID DEVICE, BLE HID and other Bluetooth protocols. Support SBC, MSBC decoding
Certification: support BQB 5.0 certification
Transmit and receive delay: support ACTX-LL low delay, as low as 30MS

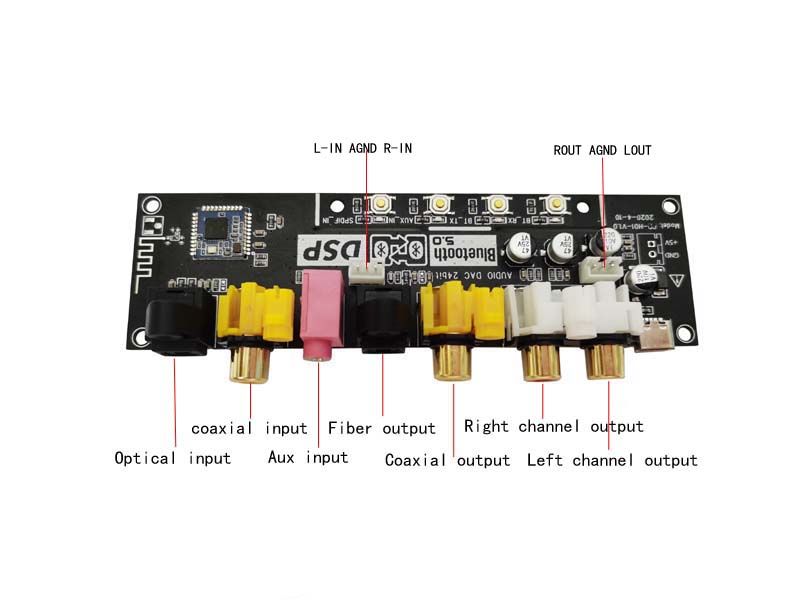

Receive mode: support fiber output, coaxial output, analog output
(can realize bluetooth receiving to optical fiber digital signal)
(Can realize Bluetooth receiving to coaxial digital signal)
(Can realize bluetooth receiving to turn into analog stereo signal)
Transmit mode: support fiber input, coaxial input, analog input
(can realize fiber optic transmission to Bluetooth signal)
(can realize coaxial transmission to Bluetooth signal)
(can realize analog stereo transmission to Bluetooth signal)
Features:
-Adapt to any audio device to Bluetooth transmission.
-Can realize the connection between two boards.
-Can receive any Bluetooth signal.
-Can transmit audio signals to any Bluetooth receiving device.

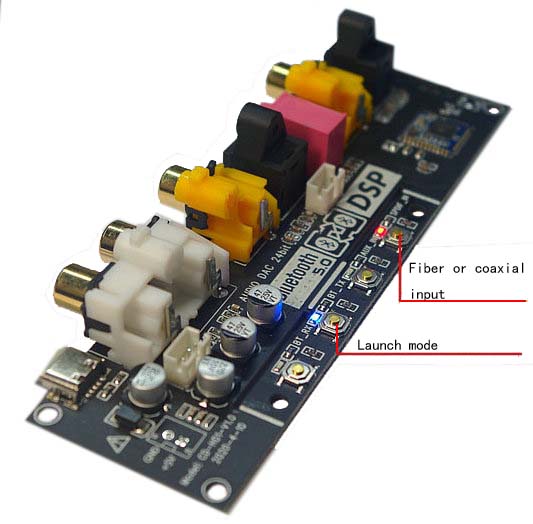

Bluetooth Sending Mode:
-Bluetooth transmission-convert audio signals into Bluetooth signals and provide them to devices that need to use Bluetooth receivers such as Bluetooth speakers, Bluetooth headsets, Bluetooth boards and other receiving terminals.
-The Bluetooth transmission mode is defined as the main device, which needs to be paired and linked from devices such as Bluetooth speakers and Bluetooth headsets. After being defined as the Bluetooth transmission mode, this device is a device that sends audio, so the output interface terminal has no output, only input signal.
-The Bluetooth transmission and reception mode has memory saving function. After selection, the power-off mode will not change the next time. It is convenient to use pairing and automatic connection directly when receiving or sending.
Bluetooth Receiving Mode:
-It can be paired and connected with the Bluetooth audio signal received by Bluetooth and the Bluetooth signal sent from the mobile phone and other devices, so that the received Bluetooth signal can be decoded into stereo left and right channel signals, and the fiber/coaxial output stereo signal can be directly output.

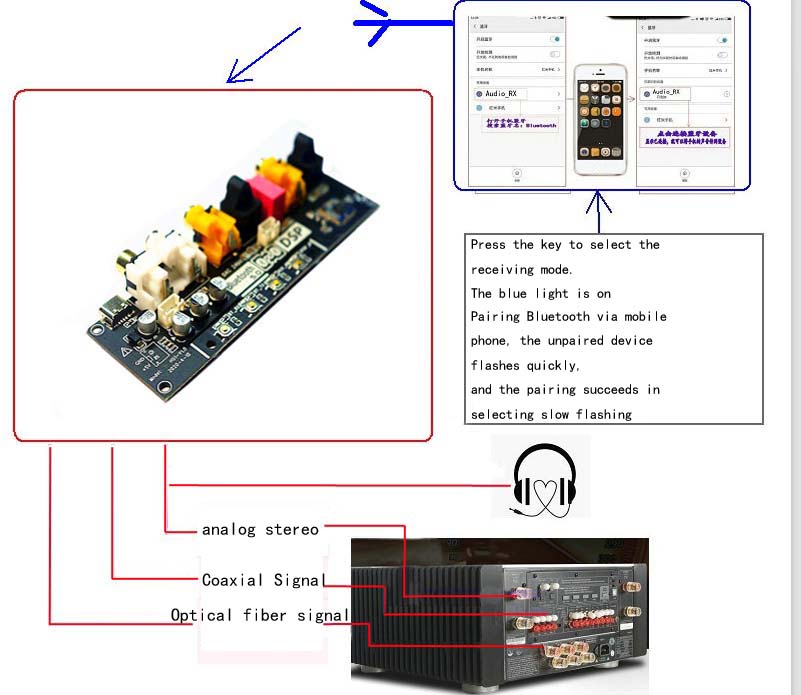

-To receive Bluetooth connection steps: 1: press the Bluetooth receiving button, set it to Bluetooth receiving mode. The blue light flashes fast when the pairing is not successful, but slowly flashes when pairing succeeds. The Bluetooth name is: Audio-RX, please connect Bluetooth name when pairing the mobile phone. 2: select the required interface connection cable, headphone output, optical fiber output, and coaxial output according to your own power amplifier and other audio equipment.
Package List:
1 x Audio Board
