Bluetooth 5.0 DAC Dual AK4493 Stereo Audio DAC Bluetooth 5.0 For LDAC DSD512 NXC06

Bluetooth 5.0 DAC Dual AK4493 Stereo Audio DAC Bluetooth 5.0 For LDAC DSD512 NXC06

Features:
- Including DAC, original remote control and 12V12A power supply
- Careful hard decoding design. Use digital shaping technology for dual AK4493 multi-function DSD Bluetooth decoder, soft control for ARM, DSD hard solution, CSR8675 Bluetooth 5.0 supports for APTX, APTX-HD, LDAC, USB receiver for Italian Amanero solution, TPA6120 professional headphones Amplifier. Small size, exquisite workmanship, and easy to use.
- FPGA digital shaping chip for XILINX. Support for LDAC. CSR8675 supports for APTX HD 48KHz, LDAC 96KHz HD audio transmission. British digital soft control solution for ARM. Full function remote control. Italian USB digital interface daughter card. Supports for DSD64 / 128/256/512. PCM supports 32bit 384KHz. HD LED clearly shows everything. 2 x AK4493EQ decoding chips. AK4113 receiver chip. TPA6120 A2 professional headphone amplifier. Plug-in dual op amp with ±14.5V voltage.
- Italian USB digital interface DSD hard decoding. Support DSD hard decoding of all USB devices such as for IOS, Android, computers. (USB connection of smart phone shall be equipped with OTG cable, which shall be prepared by users themselves.)
- Independent dual op amp are pluggable, so users can replace them with your favorite ones. They are powered by ±14.5V voltage. Our items are designed for HiFi quality.
- Beautiful internal layout and premium components
- CSR8675 Bluetooth chip for lossless experience. Supports for SBC, AAC, APTX, APTX-HD, LDAC full protocol format. It enables 24bit/96khz data transmission for LDAC. Support connection for Android mobile phones, Apple smartphones, iPad, and other tablet PC.
- Bluetooth 5.0 redefines HD wireless audio. The self-decoding function of CSR8675 has been turned off, and AK4493 chips are completely responsible for decoding and output. When the decoder is in non-Bluetooth audio source mode, it will automatically cut off the Bluetooth power supply. When Bluetooth mode is needed, the machine will be woken up again.
- USB digital interface for Amanero solution. PCM: 44.1khz, 48khz, 88.2khz, 96khz, 176.4khz, 192khz, 352.8khz, 384khz. DSD: DSD64, DSD128, DSD256, DSD512.
- 2 x AK4493EQ decoding chips provide higher quality and pure sound.
- FPGA digital shaping chip for XILINX. Using digital shaping technology to improve clock signal jitter, the details are better, at the same time can prevent switching popping. And electromagnetic interference between channels, output pure audio signals.
- AK4113 independent digital receiver chip. The coaxial and optical fiber input sound is more natural and professional HiFi independent signal receiving and processing chip, which is 65% higher than the previous generation.
- STM32F For ARM: Adhere to the British digital architecture processing system to improve the overall collaboration effect.
- Adopt 4pcs 5532DD operational amplifiers. High fidelity and low noise. The sound is full and elastic, and the low frequency ductility is prominent.
- Linear boost conversion design. After the 12V DC single voltage is input, the voltage is first boosted before the conversion reaches the positive and negative 14.5V dual voltage power supply mode, so that the output effect of the operational amplifier is maximized.

Specifications:
- Model: NXC06
- Product size: 148 x 50 x 169 mm
- Product weight: about 780g
- Digital input: USB/mobile phone OTG, BLUE bluetooth, COAX, OPT optical fiber
- Output port: 2.0 stereo RCA port/3.5mm headphone outlet
- USB input: PCM: 44.1khz-384khz/16-32bit; DSD64-DSD256/DOP/Native
- Coaxial/optical fiber: PCM: 44.1khz-192khz/16-24Bit
- Bluetooth input: bluetooth 5.0 supports for AAC/SBC/APTX/APTX-LL/APTX-HD /LDAC
- SNR: > 128dB@1kHz
- Frequency response: 16-20kHz/±0.35dB
- Headphone amp power: 700mW* 2@32Ω; 156mW* 2@300Ω

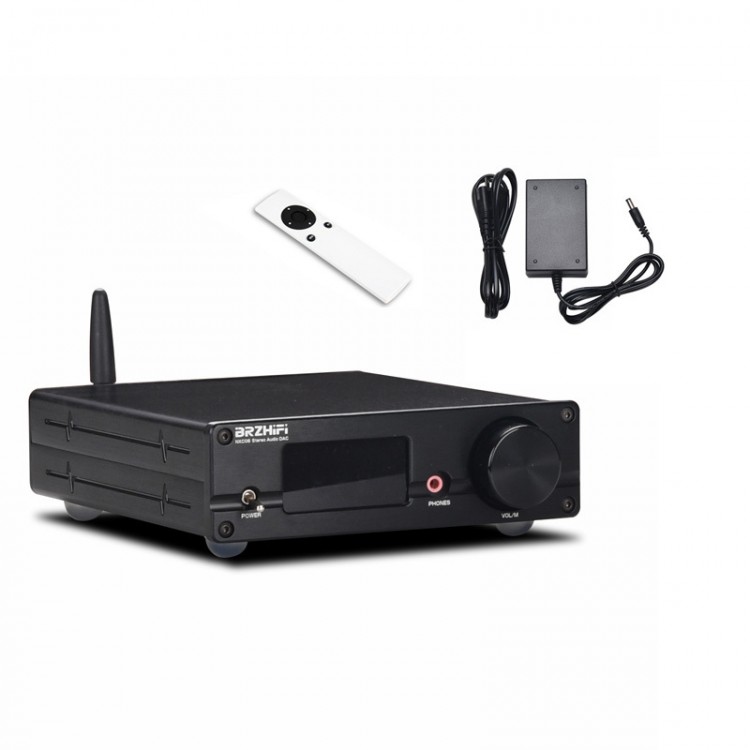

Package Included:
- 1 x Set of DAC

Note:
- Optional colors: Black, Silver.
- It is assembled and ready to use.
- If NFC function is needed, please contact us to pay extra money. It is not for Apple systems now.
- Its USB port is for USB data cable input, not for U disk/hard disk.
- Other items pictured are not included, for demonstration purposes only.

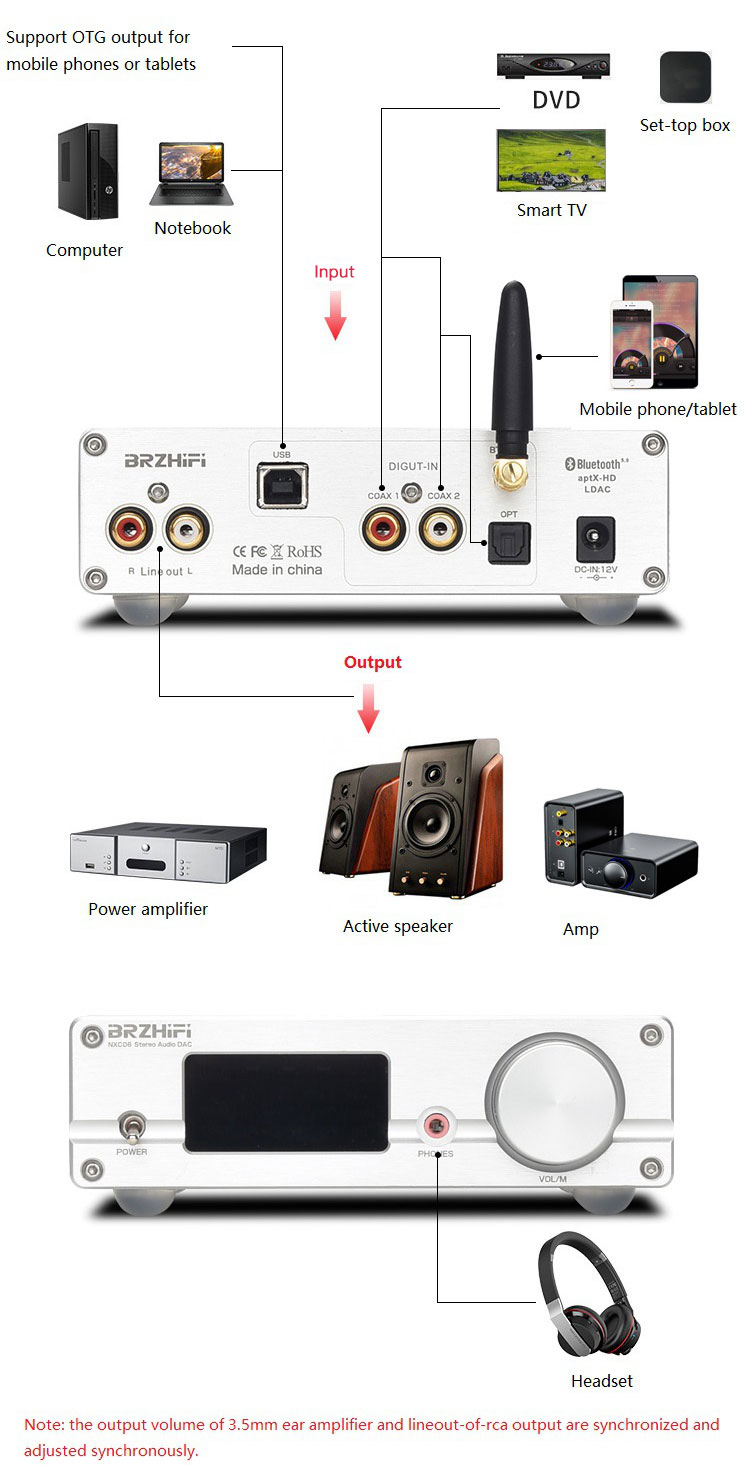

Compatibility:
- Digital Input: Digital audio from optical, coaxial, USB, Bluetooth devices
- Analog Output: Red white RCA output, 3.5mm headphone amp output
